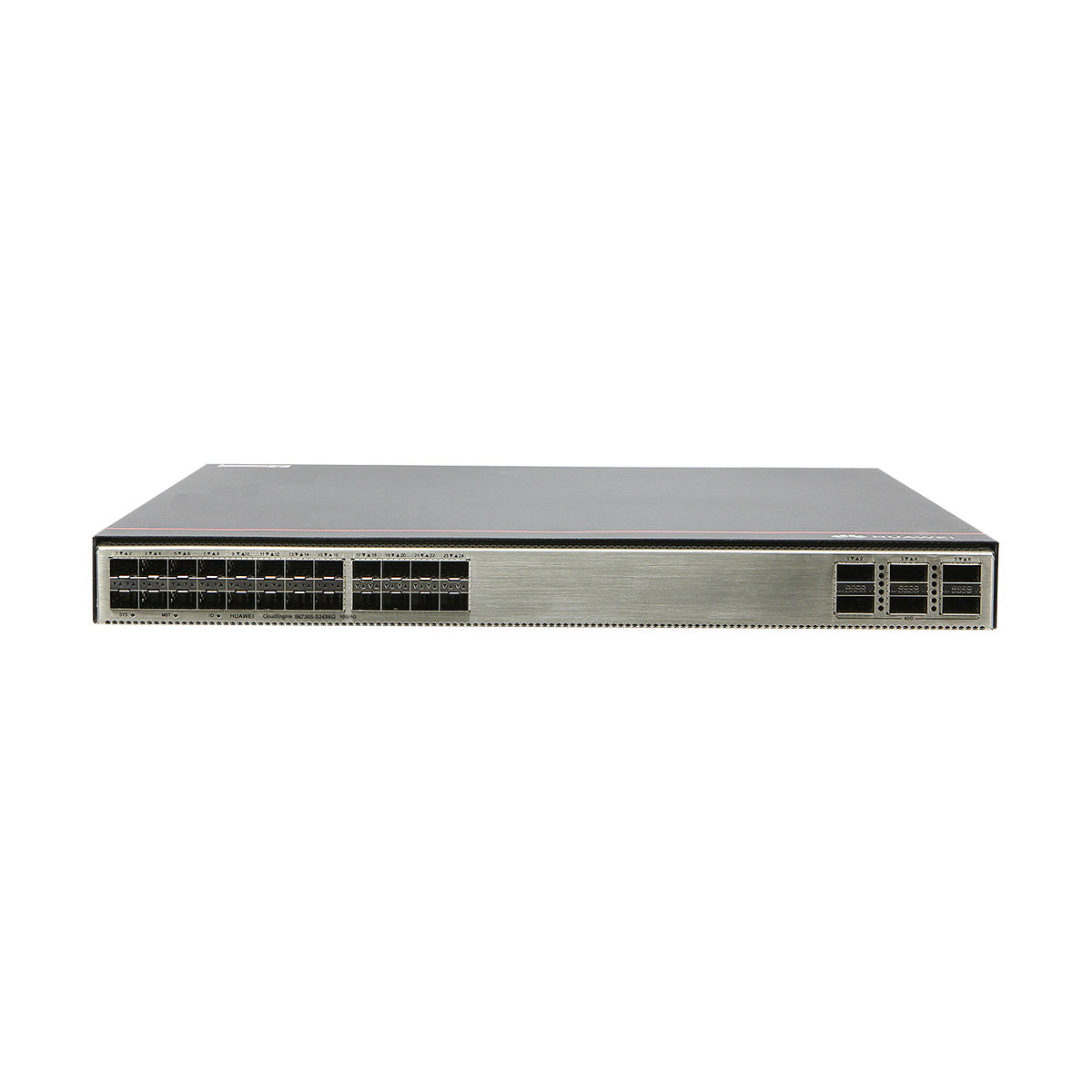

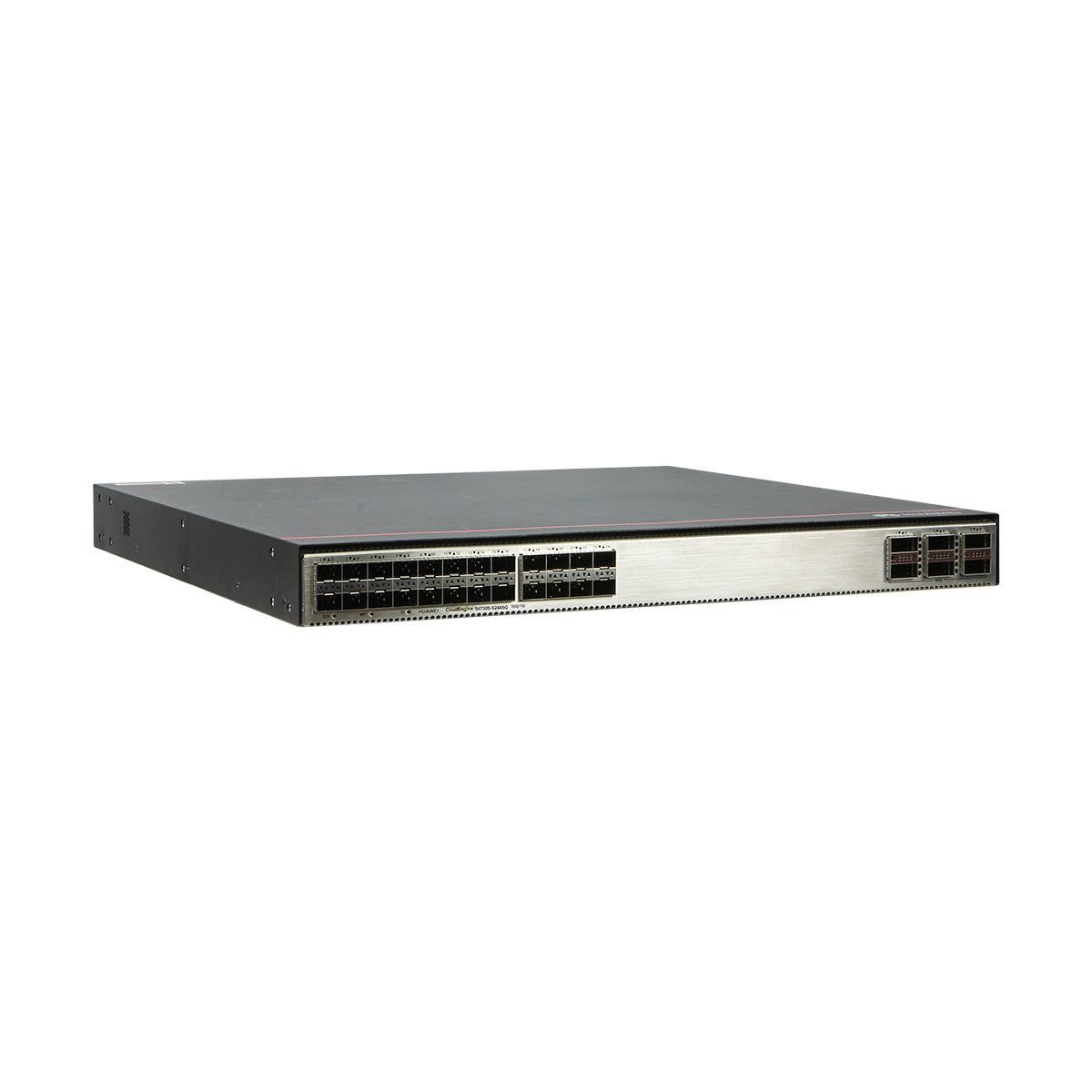

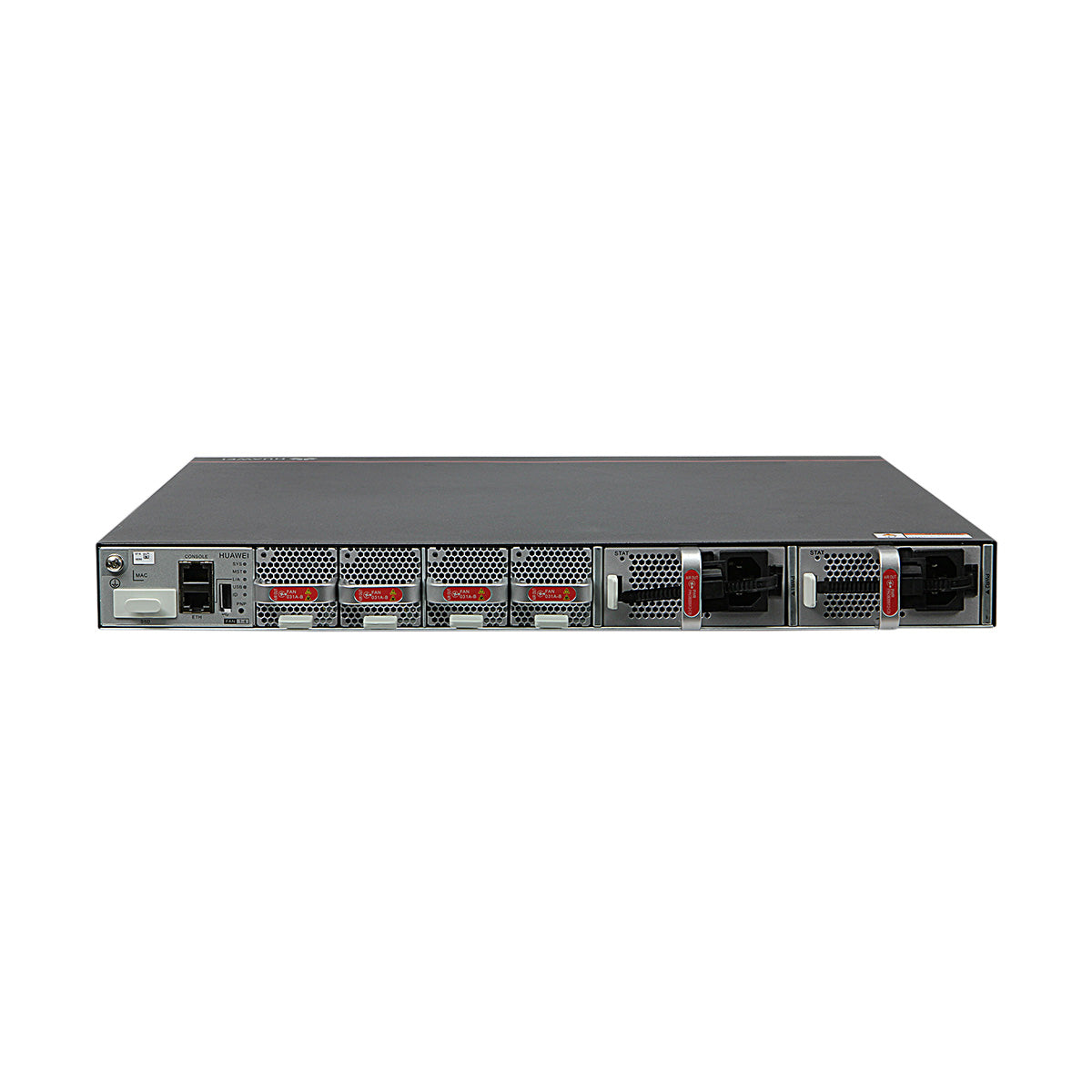

Huawei S6730S-S24X6Q-A switch with 24-port 10GE SFP+, 6-port 40GE QSFP, 2 power slots
Forwarding performance: 300Mpps
Switching capacity : 2.4 Tbit/s
64K MAC address entries
Providing 10 GE downlink ports alongside 40 GE uplink ports, Huawei CloudEngine S6730-S series switches deliver high-speed, 10 Gbit/s access to high-density servers. CloudEngine S6730-S also functions as a core or aggregation switch on campus networks, providing a rate of 40 Gbit/s.
With Virtual Extensible Local Area Network (VXLAN)-based virtualization, comprehensive security policies, and a range of Quality of Service (QoS) features, CloudEngine S6730-S helps enterprises build scalable, reliable, and secure campus and data center networks.
Item | Description |
Fixed Ports |
Twenty-four 10GE SFP+ ports Six 40GE QSFP+ optical ports |
Memory (RAM) | 4 GB |
Flash | 2 GB in total. To view the available flash memory size, run the display version command. |
Mean time between failures (MTBF) | 62.27 years |
Mean time to repair (MTTR) | 2 hours |
Availability | > 0.99999 |
Service port surge protection | N/A |
Power supply surge protection | Using AC power modules: ±6 kV in differential mode, ±6 kV in common mode |
Using DC power modules: ±2 kV in differential mode, ±4 kV in common mode | |
Dimensions (H x W x D) | Basic dimensions 43.6 mm x 442.0 mm x 420.0 mm |
Maximum dimensions 43.6 mm x 442.0 mm x 446.0 mm | |
Weight (with packaging) | 9.84 kg (21.69 lb) |
Stack ports | Any 10GE SFP+ ports (a maximum of 16 physical ports) |
Any 40GE QSFP+ ports (a maximum of 6 physical ports) | |
RTC | Supported |
RPS | Not supported |
PoE | Not supported |
Rated voltage range | AC input: 100 V AC to 240 V AC, 50/60 Hz |
High-Voltage DC input: 240 V DC | |
DC input: -48 V DC to -60 V DC | |
Maximum voltage range | AC input: 90 V AC to 290 V AC, 45 Hz to 65 Hz |
High-Voltage DC input: 190 V DC to 290 V DC | |
DC input: -38.4 V DC to -72 V DC | |
Maximum power consumption (100% throughput, full speed of fans) | 249 W |
Typical power consumption (30% of traffic load, tested according to ATIS standard) | 135 W |
Operating temperature | -5°C to +45°C (23°F to 113°F) at an altitude of 0-1800 m (0-5906 ft.) |
Storage temperature | -40°C to +70°C (-40°F to +158°F) |
Noise under normal temperature (27°C, sound power) | |
Relative humidity | 5% to 95%, noncondensing |
Operating altitude | 0-5000 m (0-16404 ft.) |
Certification | EMC certification |
Safety certification | |
Manufacturing certification | |
Part number | 02353AJX |
02353AJX-001 | |
02353AJX-003 | |
02353AJX-004 |
