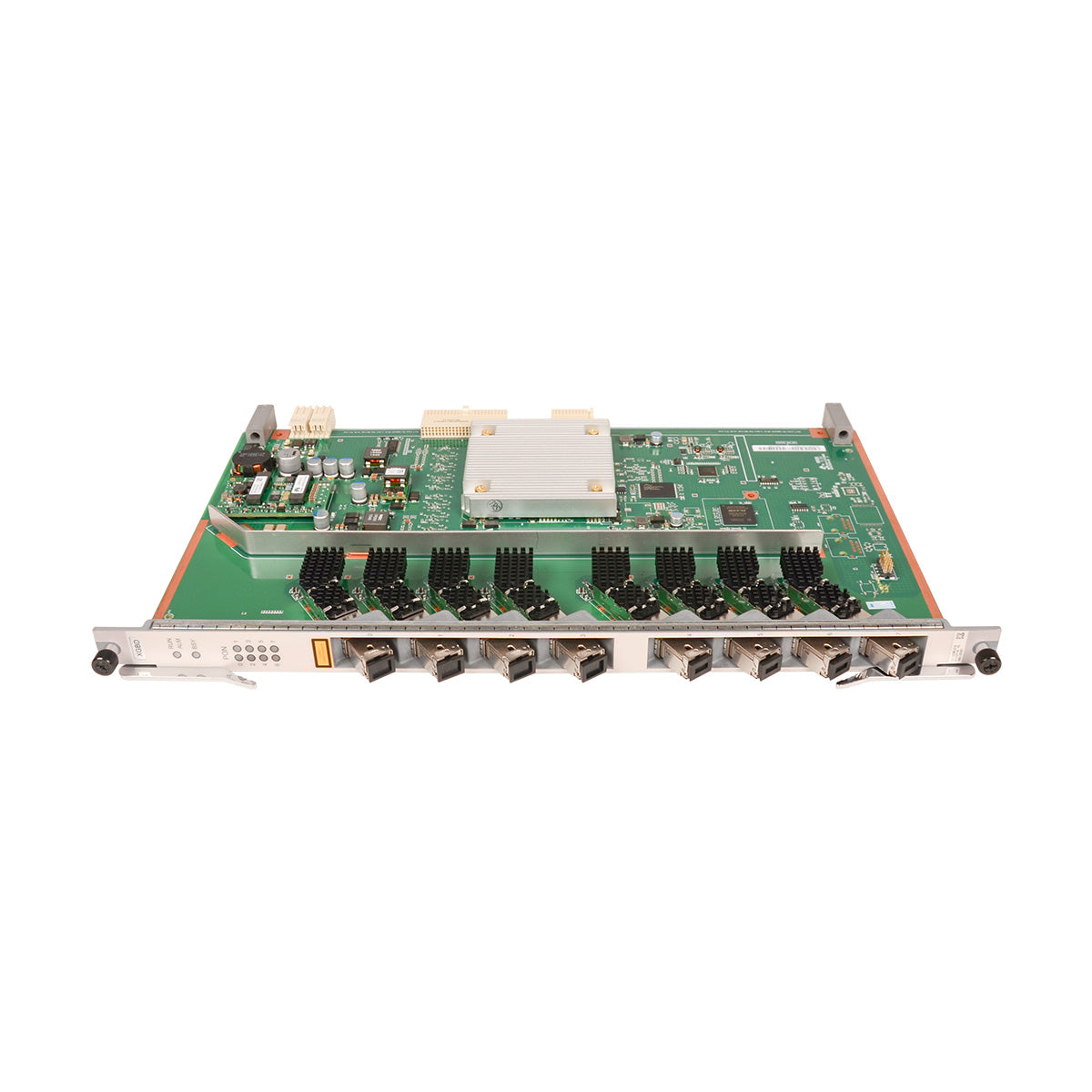

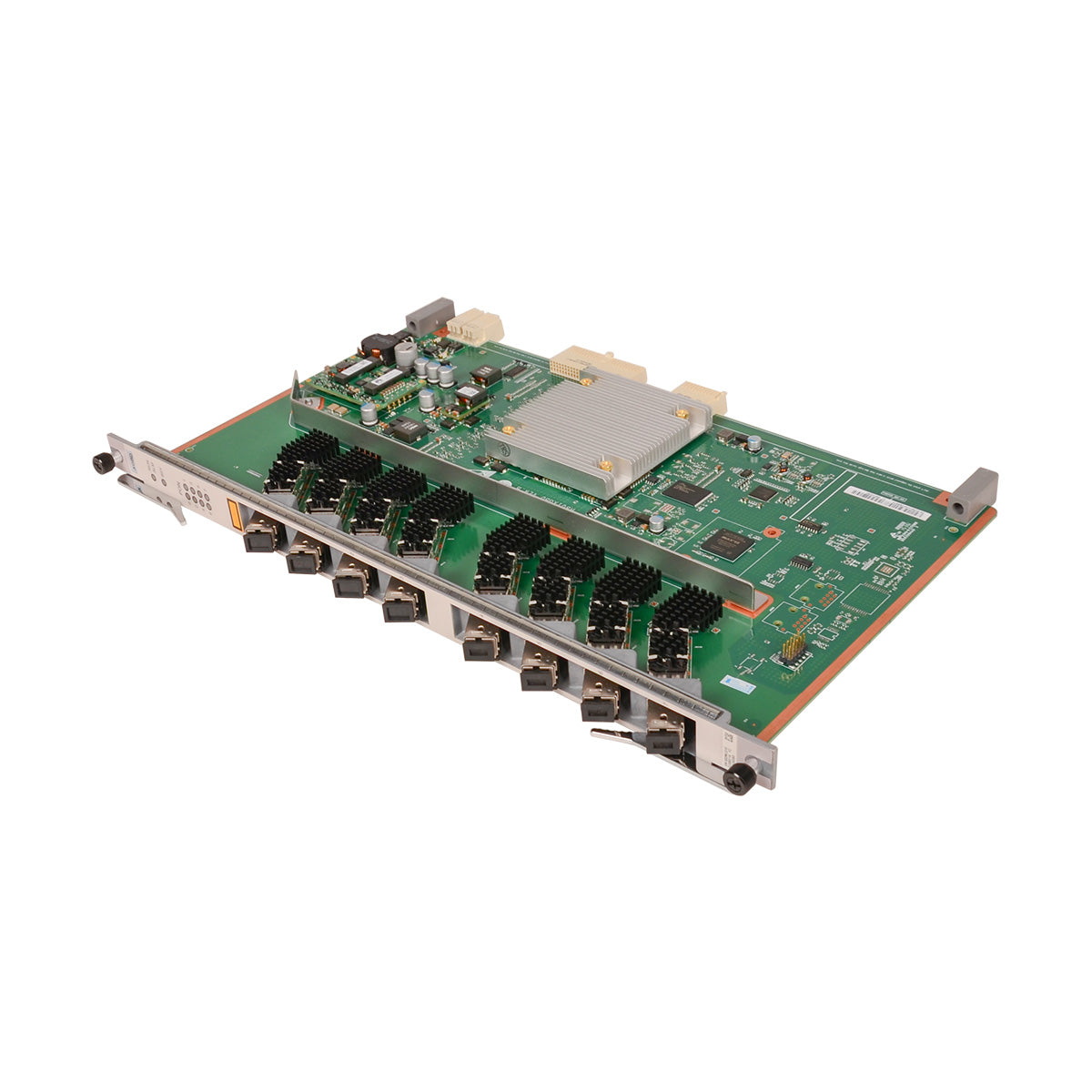

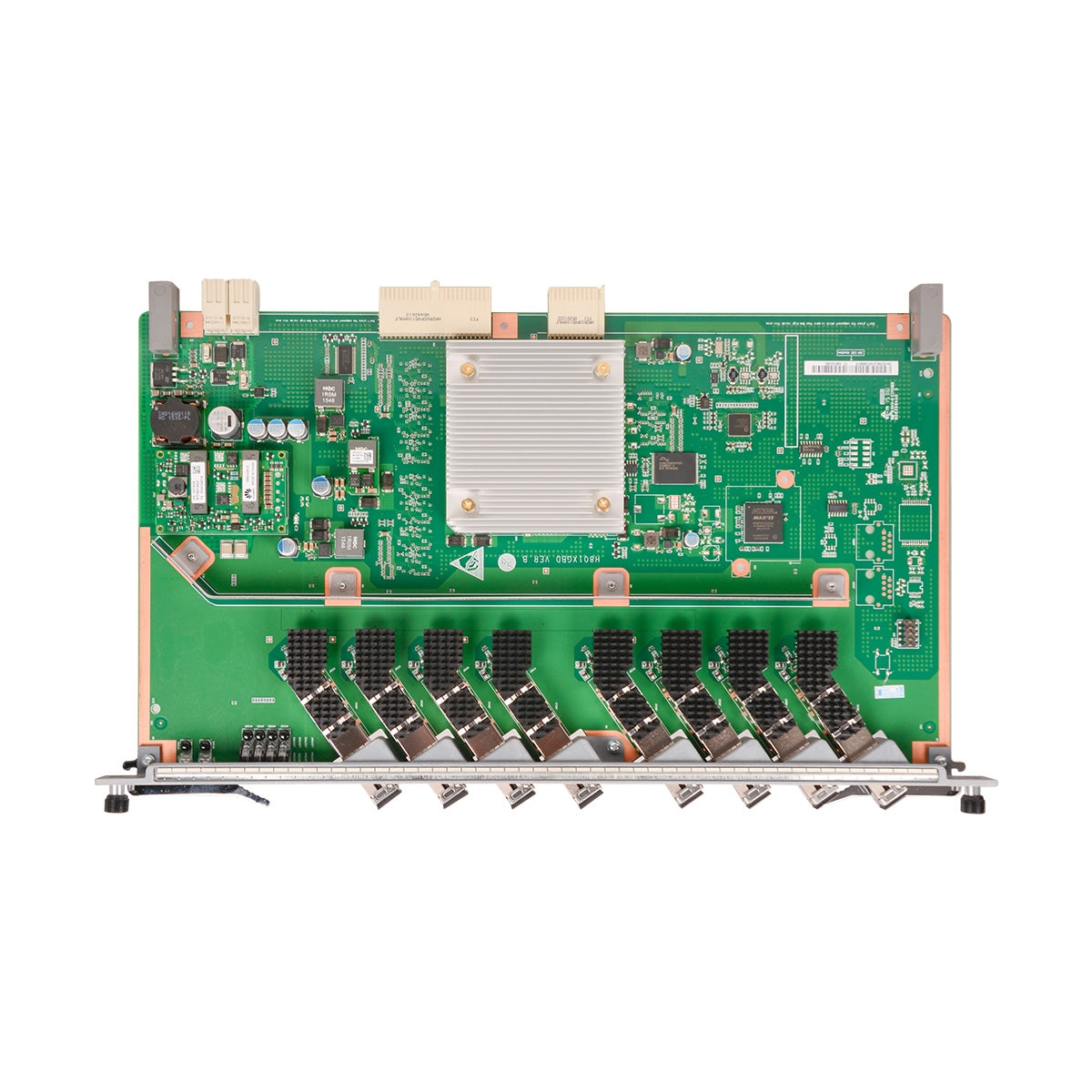

Huawei H801XGBD 8-port 10G GPON Board for MA5600T series OLT
- Unified 8*PON Module
- Original Package
- Board and Modules Tested
- Support 9216 bytes (jumbo frame enabled)
H801XGBD is an 8-port 10G GPON OLT Interface Board, which works with the ONU to provide 10G GPON access service
8 10G GPON ports with SFP+ optical modules
Max. split ratio: 1:256
Rate mode: Asymmetric rate
Port rate:
Upstream: 2.488 Gbit/s
Downstream: 9.953 Gbit/s
Service flows per PON board: 16368
MAC address table size: 8192
Forwarding capability: 40 Gbit/s
| Specification | |
| Service ports | |
| GPON Port | 8 10G GPON Port |
| GPON SFP+ Module Specification | |
| Type | One-fiber bi-directional optical module |
| Operating Wavelength | Tx: 1577 nm Rx: 1270 nm |
| Encapsulation Type | 10G-GPON |
| Port Rate | Tx: 9.95 Gbit/s Rx: 2.49 Gbit/s |
| Minimun Output Optical Power | 2 dBm |
| Maximum Output Optical Power | 6 dBm |
| Maximum Receiver Sensitivity | -27.5 dBm |
| Optical Connector Type | SC/PC |
| Optical Fiber Type | Single-mode |
| Reach | 20 km |
| Overload Optical Power | -7 dBm |
| Extinction Ratio | 8.2 dB |
| Device Specifications | |
| Dimensions (W x D x H) | 22.86 mm x 237.00 mm x 395.40 mm |
| Power Consumption and Maximum Frame Size | |
| Power Consumption | Static: 26 W; Maximum: 50 W |
| Maximum Frame Size | 2004 bytes; 9216 bytes (jumbo frame enabled) |
| Operating temperature | -25°C to +65°C |
H801XGBD is an 8-port 10G GPON OLT Interface Board, which works with the ONU to provide 10G GPON access service
8 10G GPON ports with SFP+ optical modules
Max. split ratio: 1:256
Rate mode: Asymmetric rate
Port rate:
Upstream: 2.488 Gbit/s
Downstream: 9.953 Gbit/s
Service flows per PON board: 16368
MAC address table size: 8192
Forwarding capability: 40 Gbit/s
| Specification | |
| Service ports | |
| GPON Port | 8 10G GPON Port |
| GPON SFP+ Module Specification | |
| Type | One-fiber bi-directional optical module |
| Operating Wavelength | Tx: 1577 nm Rx: 1270 nm |
| Encapsulation Type | 10G-GPON |
| Port Rate | Tx: 9.95 Gbit/s Rx: 2.49 Gbit/s |
| Minimun Output Optical Power | 2 dBm |
| Maximum Output Optical Power | 6 dBm |
| Maximum Receiver Sensitivity | -27.5 dBm |
| Optical Connector Type | SC/PC |
| Optical Fiber Type | Single-mode |
| Reach | 20 km |
| Overload Optical Power | -7 dBm |
| Extinction Ratio | 8.2 dB |
| Device Specifications | |
| Dimensions (W x D x H) | 22.86 mm x 237.00 mm x 395.40 mm |
| Power Consumption and Maximum Frame Size | |
| Power Consumption | Static: 26 W; Maximum: 50 W |
| Maximum Frame Size | 2004 bytes; 9216 bytes (jumbo frame enabled) |
| Operating temperature | -25°C to +65°C |
