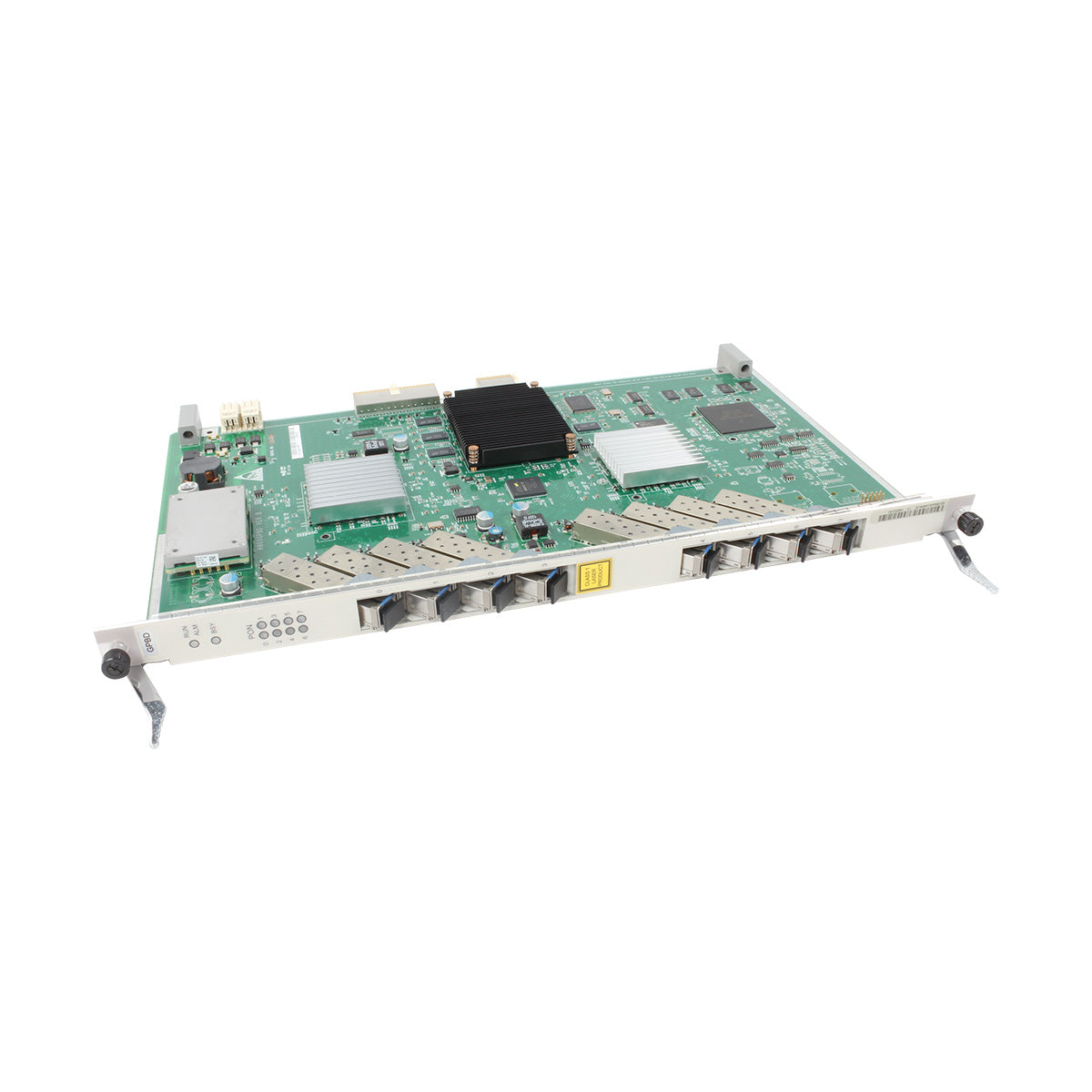

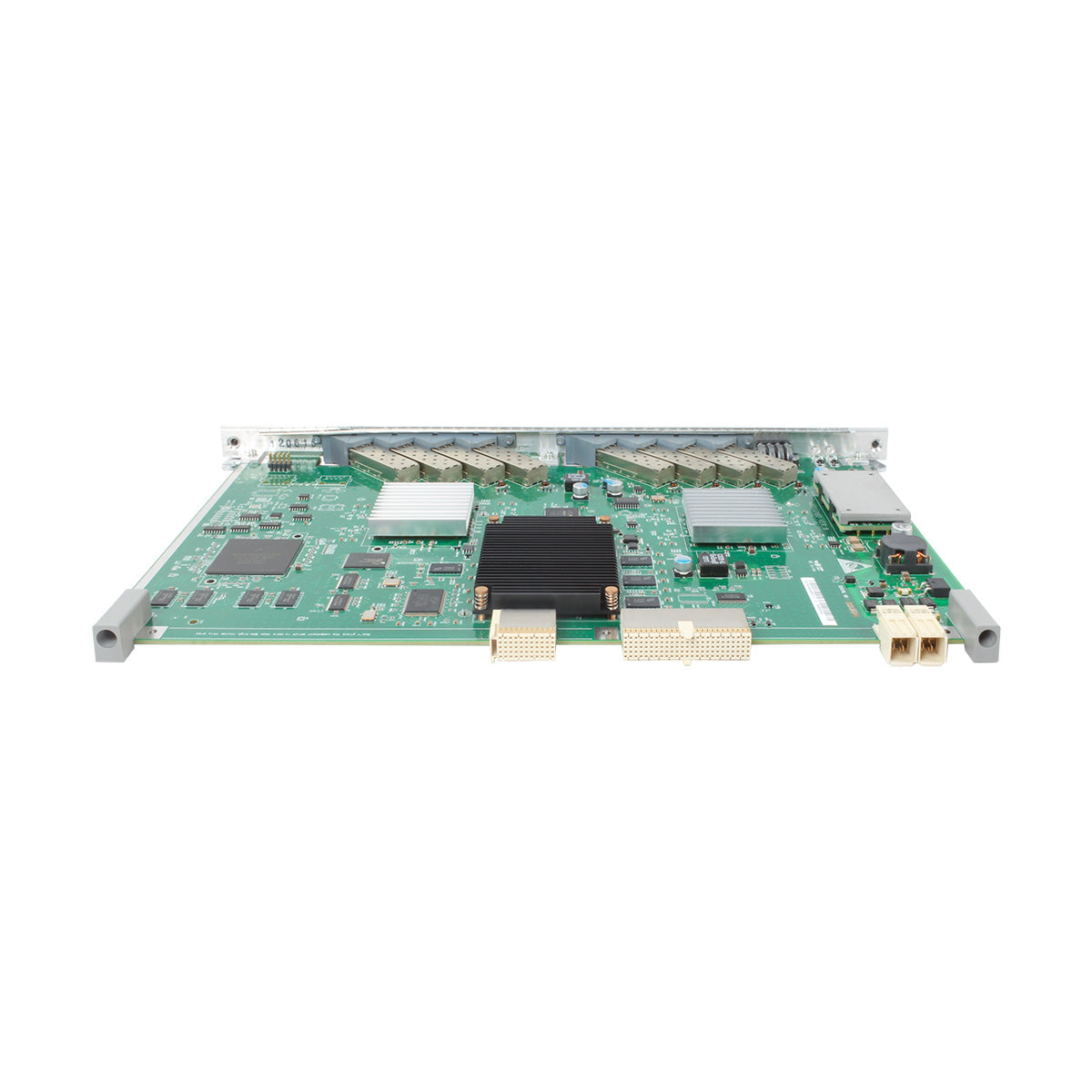

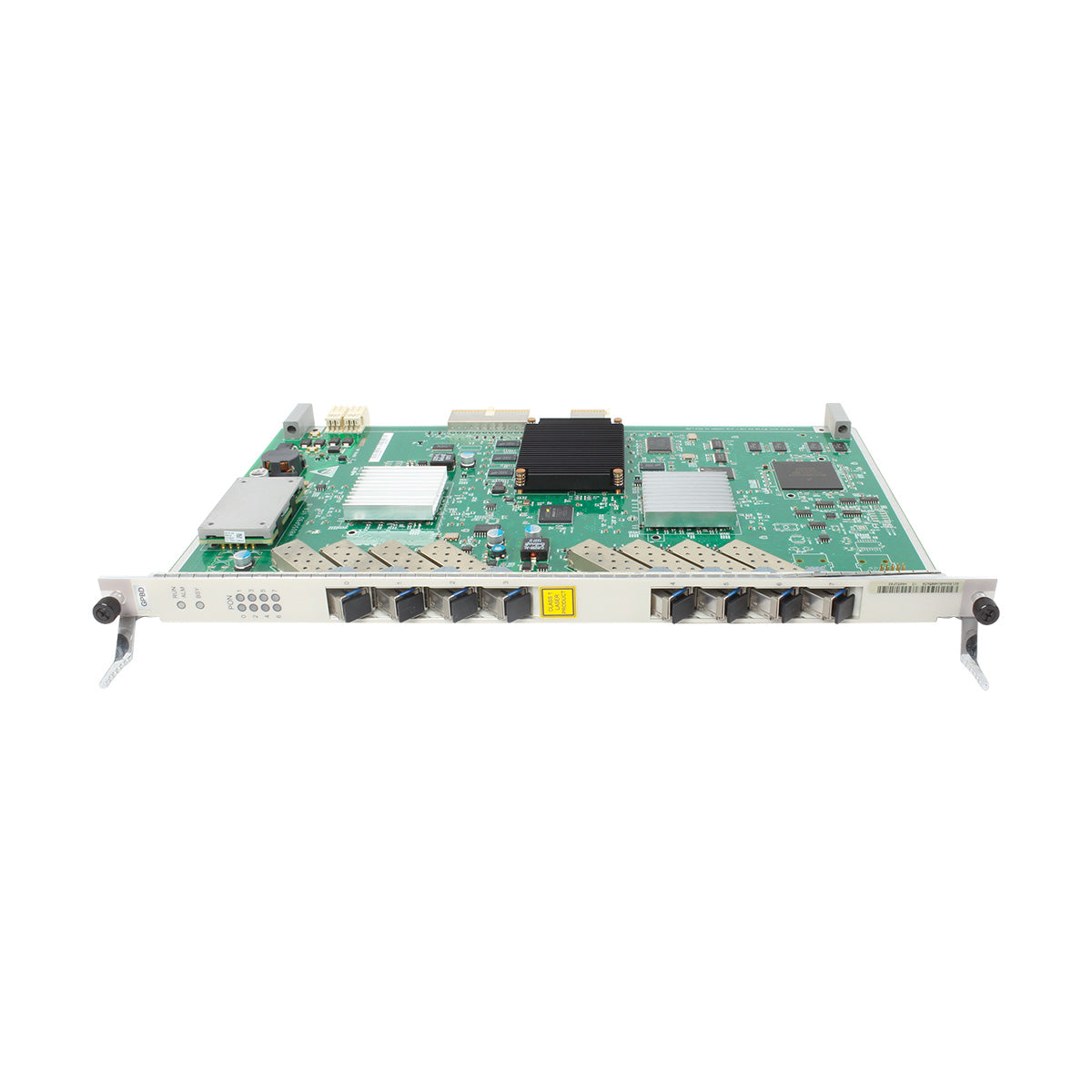

Huawei H802GPBD 8-port GPON Board for MA5600T series OLT

  • Unified 16*PON Module
  • Original Package
  • Board and Modules Tested
Available:In Stock
$0.00

The H802GPBD board is a 8-port GPON OLT interface board. It works together with the ONU to provide the GPON access service

8 GPON ports (SFP)

Max. split radio:
Class B+: 1: 64
Class C+/C++: 1: 128

Port rate:
Upstream: 1.244 Gbit/s
Downstream: 2.488 Gbit/s

Power budget per GPON port:
Class B+ (28 dB, most common),
Class C+ (32 dB, long reach transmission)
Class C++: 35 dB

MAC address table size: 8192

Service flows per PON board: 8184

Available DBA bandwidth: 1238784 kbit/s





Specification
Service ports
GPON Port 8-GPON Port
GPON SFP Module Specification
Type C+ Module : One-fiber bi-directional optical module, class C+
Operating Wavelength Tx: 1490 nm, Rx: 1310 nm
Encapsulation Type SFP
Port Rate Tx: 2.49 Gbit/s, Rx: 1.24 Gbit/s
Minimun Output Optical Power C+ Module : 3.00 dBm
Maximum Output Optical Power C+ Module : 7.00 dBm
Maximum Receiver Sensitivity C+ Module : -32.00 dBm
Optical Connector Type SC/PC
Optical Fiber Type Single-mode
Reach 20.00 km
Overload Optical Power C+ Module : -12.0 dBm
Extinction Ratio 8.2 dB
Device Specifications
Dimensions (W x D x H) 22.86 mm x 237.00 mm x 395.40 mm
Power Consumption and Maximum Frame Size
Power Consumption H802GPBD : Static: 45 W, Maximum: 51 W
H805GPBD : Static: 43 W, Maximum: 49 W
Maximum Frame Size For V800R011C00 and earlier versions: 2000 bytes
For V800R012C00 and later versions: 2004 bytes
Operating temperature -25°C to +65°C

The H802GPBD board is a 8-port GPON OLT interface board. It works together with the ONU to provide the GPON access service

8 GPON ports (SFP)

Max. split radio:
Class B+: 1: 64
Class C+/C++: 1: 128

Port rate:
Upstream: 1.244 Gbit/s
Downstream: 2.488 Gbit/s

Power budget per GPON port:
Class B+ (28 dB, most common),
Class C+ (32 dB, long reach transmission)
Class C++: 35 dB

MAC address table size: 8192

Service flows per PON board: 8184

Available DBA bandwidth: 1238784 kbit/s





Specification
Service ports
GPON Port 8-GPON Port
GPON SFP Module Specification
Type C+ Module : One-fiber bi-directional optical module, class C+
Operating Wavelength Tx: 1490 nm, Rx: 1310 nm
Encapsulation Type SFP
Port Rate Tx: 2.49 Gbit/s, Rx: 1.24 Gbit/s
Minimun Output Optical Power C+ Module : 3.00 dBm
Maximum Output Optical Power C+ Module : 7.00 dBm
Maximum Receiver Sensitivity C+ Module : -32.00 dBm
Optical Connector Type SC/PC
Optical Fiber Type Single-mode
Reach 20.00 km
Overload Optical Power C+ Module : -12.0 dBm
Extinction Ratio 8.2 dB
Device Specifications
Dimensions (W x D x H) 22.86 mm x 237.00 mm x 395.40 mm
Power Consumption and Maximum Frame Size
Power Consumption H802GPBD : Static: 45 W, Maximum: 51 W
H805GPBD : Static: 43 W, Maximum: 49 W
Maximum Frame Size For V800R011C00 and earlier versions: 2000 bytes
For V800R012C00 and later versions: 2004 bytes
Operating temperature -25°C to +65°C
