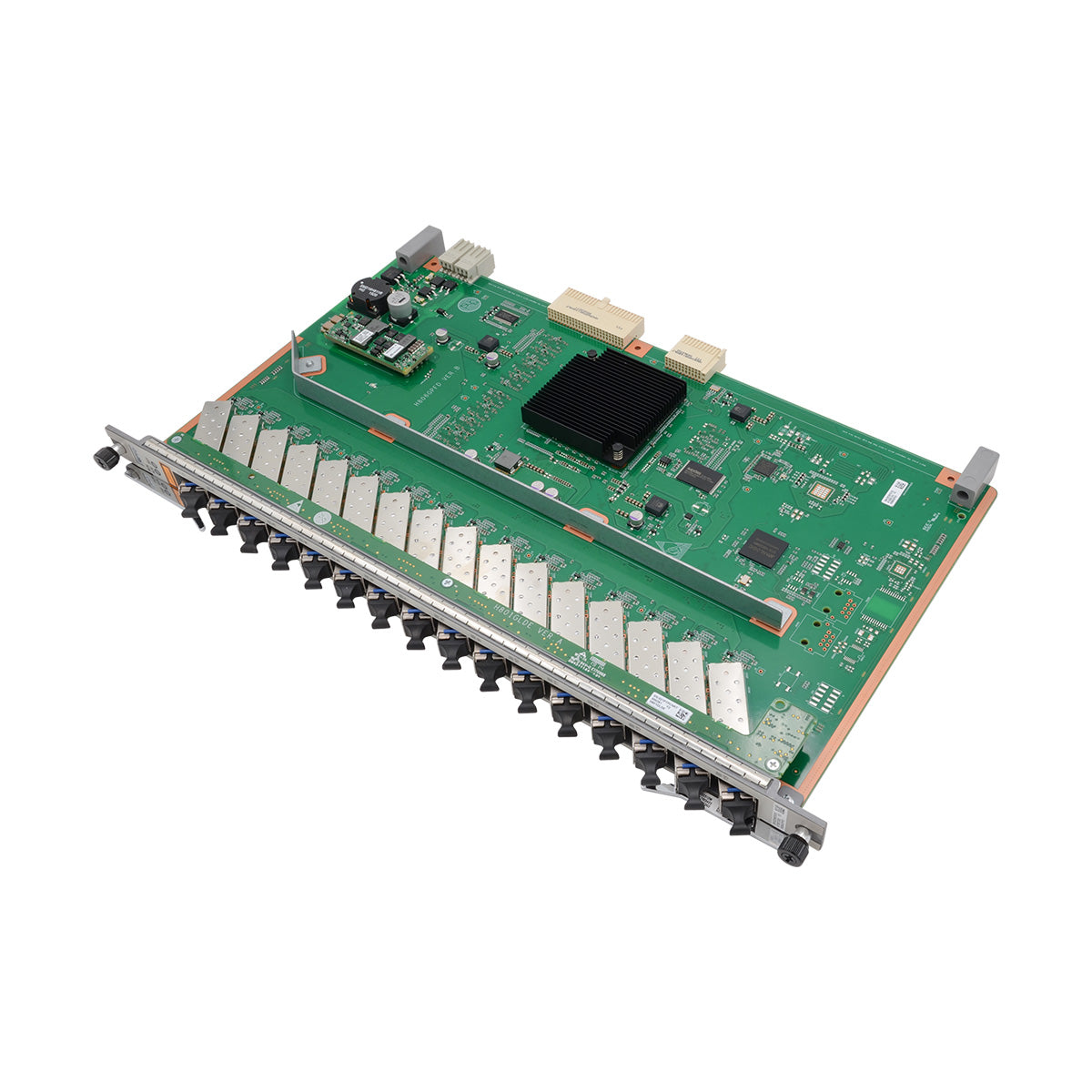

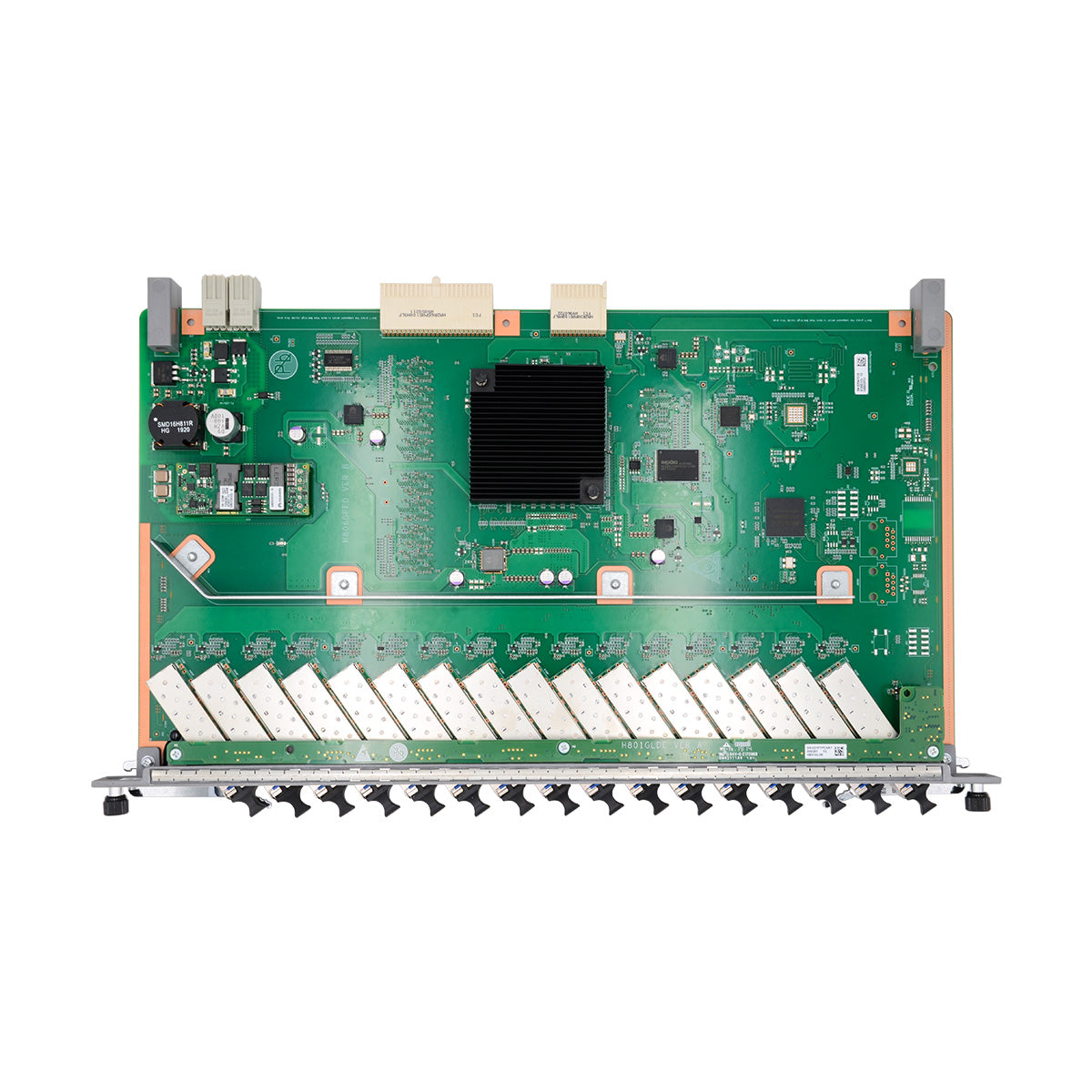

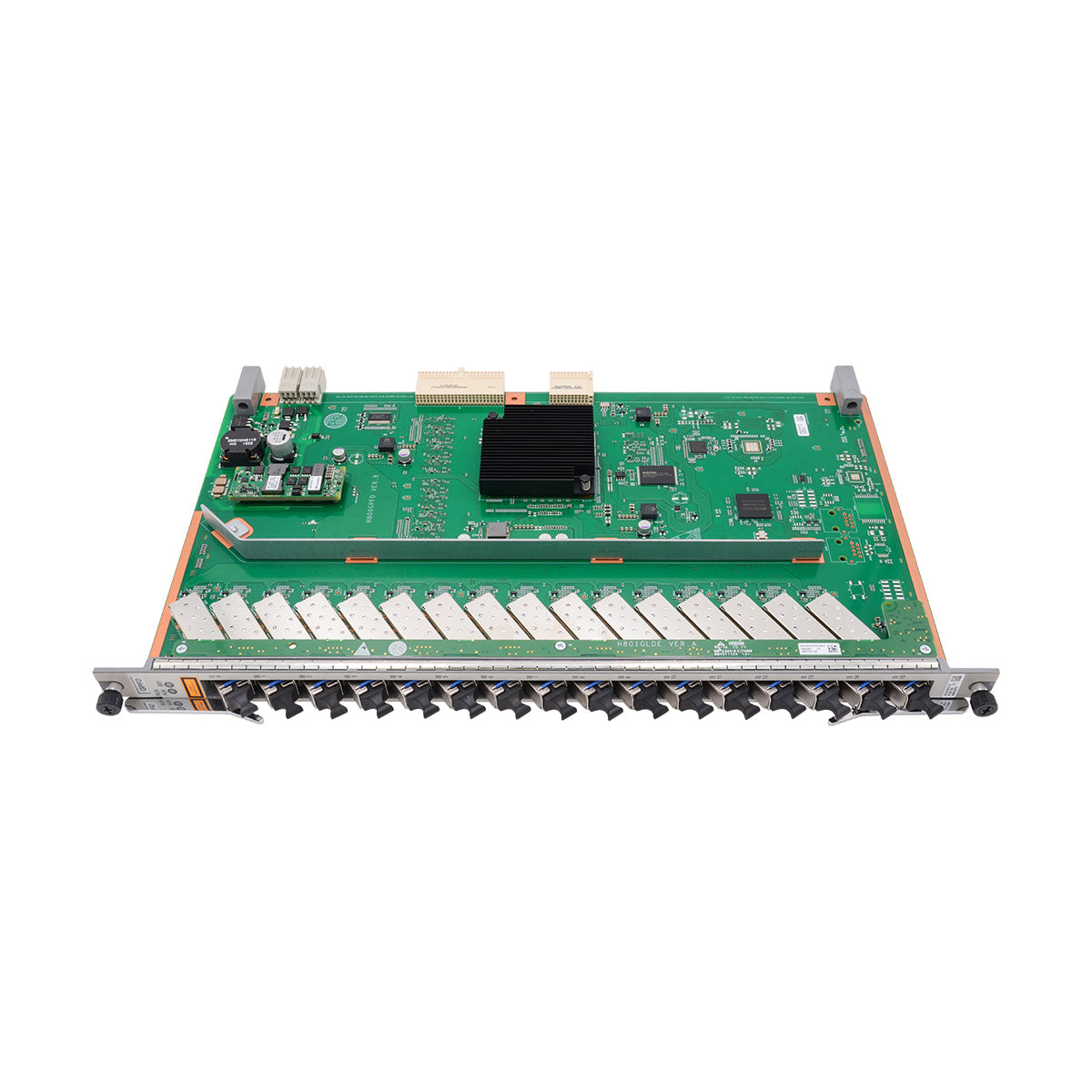

Huawei H806GPFD 16-port GPON Board for MA5600T series OLT
- Unified 16*PON Module
- Original Package
- Board and Modules Tested
- Support 9216 bytes (jumbo frame enabled)
The H806GPFD board is a 16-port GPON OLT interface board for Huawei SmartAX MA5600T series OLT including the MA5608T, MA5683T and MA5680T. It works together with the ONU to provide the GPON access service.
8 GPON ports (SFP)
Max. split radio:
Class B+: 1: 64
Class C+/C++: 1: 128
Port rate:
Upstream: 1.244 Gbit/s
Downstream: 2.488 Gbit/s
Power budget per GPON port:
Class B+ (28 dB, most common),
Class C+ (32 dB, long reach transmission)
Class C++: 35 dB
MAC address table size: 32768
Service flows per PON board: 16368
Available DBA bandwidth: 1238784 kbit/s
| Specification | |
| Service ports | |
| GPON Port | 16-GPON Port |
| GPON SFP Module Specification | |
| Type | C+ Module : One-fiber bi-directional optical module, class C+ |
| Operating Wavelength | Tx: 1490 nm, Rx: 1310 nm |
| Encapsulation Type | SFP |
| Port Rate |
Tx: 2.49 Gbit/s, Rx: 1.24 Gbit/s |
| Minimun Output Optical Power | C+ Module : 3.00 dBm |
| Maximum Output Optical Power | C+ Module : 7.00 dBm |
| Maximum Receiver Sensitivity | C+ Module : -32.00 dBm |
| Optical Connector Type | SC/PC |
| Optical Fiber Type | Single-mode |
| Reach | 20.00 km |
| Overload Optical Power | C+ Module : -12.0 dBm |
| Extinction Ratio | 8.2 dB |
| Device Specifications | |
| Dimensions (W x D x H) | 22.86 mm x 237.00 mm x 395.40 mm |
| Power Consumption and Maximum Frame Size | |
| Maximum Frame Size | 2004 bytes |
| Operating temperature | -25°C to +65°C |
Comparison of MA5600T Series OLT GPON service board
| Specification | H801GPBC | H802GPBD | H805GPBD | H802GPFD/H805GPFD | H806GPBH/H807GPBH | H801GPMD |
| Port quantity | 4 | 8 | 8 | 16 | 8 | 8 |
| MAX Split ratio (Class B+) | 1:64 | 1:64 | 1:64 | 1:64 | 1:64 | 1:64 |
| MAX Split ratio (Class C+/Class C++) | Not support | 1: 128 | 1: 128 | 1: 128 | 1: 128 | 1: 128 |
| D-CMTS | No | No | No | No | No | Yes |
| ONU-based shaping | No | No | Yes | Yes | Yes | Yes |
| Optical performance monitor | Yes (querying Rx optical power is not supported) | Yes | Yes | Yes | Yes | Yes |
| RSSI detection and controlled optical signal transmission of the optical module | No | Yes | Yes | Yes | Yes | Yes |
| ONU-based rate limitation | × | √ | √ | √ | √ | √ |
| CAR group | × | √ | √ | √ | √ | √ |
| Temperature query and high temperature alarm | Yes | Yes | Yes | Yes | Yes | Yes |
| Automatic power shutdown in case of a high temperature | No | Yes | Yes | Yes | Yes | Yes |
| Maximum differential fibre distance (km) | 20 | 20 | 20 | 40 | 40 | 40 |
| Maximum Number of Service Flows Supported by the Board | 8184 | 8184 | 8184 | 16368 | 8184 | 6144 |
| Maximum Number of MAC address Supported by the Board | 32768 | 32768 | 32768 | 32768 | 32768 | 32768 |
| Available DBA bandwidth (based on single port) (kbit/s) | 1238400 | 1238784 | 1238784 | 1238784 | 1238784 | 1238784 |
| Number of T-CONT supported by each GPON port | 256 | 1024 | 1024 | 1024 | 1024 | 1024 |
| Board supporting downstream FEC | Yes | Yes | Yes | Yes | Yes | Yes |
| Board supporting upstream FEC | No | Yes | Yes | Yes | Yes | Yes |
| Rogue ONT detection | No | Yes | Yes | Yes | Yes | Yes |
| Number of ONUs supported by a GPON port | 64 | 128 | 128 | 128 | 128 | 128 |
| Number of GEM ports supported by each board | 8192 | 8192 | 8192 | 16384 | 8192 | 8192 |
| Number of GEM ports supported by each GPON port | 3872 | 3872 | 3872 | 3872 | 3872 | 3872 |
| Number of service ports supported by each GEM port | 8 | 8 | 8184 | 8184 | 8184 | 7168 |
| HQoS (four levels) | × | × | × | H802GPFD: × | H806GPBH: × | × |
| H805GPFD: √ | H807GPBH: √ | |||||
| 9216-byte Jumbo frames | × | × | × | H802GPFD: × | H806GPBH: × | × |
| H805GPFD: √ | H807GPBH: √ | |||||
| Power budget supported by a GPON port | Class B+ (28.5 dB, mostly used) | Class B+ (28.5 dB, mostly used), | ||||
| Class C+ (32 dB long reach transmission) | ||||||
| Class C++: 35 dB | ||||||
| Minimum bandwidth supported by a T-CONT | 512kbps | 1 Mbit/s (in the minimum delay mode) | ||||
| 128 kbit/s (in the maximum bandwidth usage mode) | ||||||
The H806GPFD board is a 16-port GPON OLT interface board for Huawei SmartAX MA5600T series OLT including the MA5608T, MA5683T and MA5680T. It works together with the ONU to provide the GPON access service.
8 GPON ports (SFP)
Max. split radio:
Class B+: 1: 64
Class C+/C++: 1: 128
Port rate:
Upstream: 1.244 Gbit/s
Downstream: 2.488 Gbit/s
Power budget per GPON port:
Class B+ (28 dB, most common),
Class C+ (32 dB, long reach transmission)
Class C++: 35 dB
MAC address table size: 32768
Service flows per PON board: 16368
Available DBA bandwidth: 1238784 kbit/s
| Specification | |
| Service ports | |
| GPON Port | 16-GPON Port |
| GPON SFP Module Specification | |
| Type | C+ Module : One-fiber bi-directional optical module, class C+ |
| Operating Wavelength | Tx: 1490 nm, Rx: 1310 nm |
| Encapsulation Type | SFP |
| Port Rate |
Tx: 2.49 Gbit/s, Rx: 1.24 Gbit/s |
| Minimun Output Optical Power | C+ Module : 3.00 dBm |
| Maximum Output Optical Power | C+ Module : 7.00 dBm |
| Maximum Receiver Sensitivity | C+ Module : -32.00 dBm |
| Optical Connector Type | SC/PC |
| Optical Fiber Type | Single-mode |
| Reach | 20.00 km |
| Overload Optical Power | C+ Module : -12.0 dBm |
| Extinction Ratio | 8.2 dB |
| Device Specifications | |
| Dimensions (W x D x H) | 22.86 mm x 237.00 mm x 395.40 mm |
| Power Consumption and Maximum Frame Size | |
| Maximum Frame Size | 2004 bytes |
| Operating temperature | -25°C to +65°C |
Comparison of MA5600T Series OLT GPON service board
| Specification | H801GPBC | H802GPBD | H805GPBD | H802GPFD/H805GPFD | H806GPBH/H807GPBH | H801GPMD |
| Port quantity | 4 | 8 | 8 | 16 | 8 | 8 |
| MAX Split ratio (Class B+) | 1:64 | 1:64 | 1:64 | 1:64 | 1:64 | 1:64 |
| MAX Split ratio (Class C+/Class C++) | Not support | 1: 128 | 1: 128 | 1: 128 | 1: 128 | 1: 128 |
| D-CMTS | No | No | No | No | No | Yes |
| ONU-based shaping | No | No | Yes | Yes | Yes | Yes |
| Optical performance monitor | Yes (querying Rx optical power is not supported) | Yes | Yes | Yes | Yes | Yes |
| RSSI detection and controlled optical signal transmission of the optical module | No | Yes | Yes | Yes | Yes | Yes |
| ONU-based rate limitation | × | √ | √ | √ | √ | √ |
| CAR group | × | √ | √ | √ | √ | √ |
| Temperature query and high temperature alarm | Yes | Yes | Yes | Yes | Yes | Yes |
| Automatic power shutdown in case of a high temperature | No | Yes | Yes | Yes | Yes | Yes |
| Maximum differential fibre distance (km) | 20 | 20 | 20 | 40 | 40 | 40 |
| Maximum Number of Service Flows Supported by the Board | 8184 | 8184 | 8184 | 16368 | 8184 | 6144 |
| Maximum Number of MAC address Supported by the Board | 32768 | 32768 | 32768 | 32768 | 32768 | 32768 |
| Available DBA bandwidth (based on single port) (kbit/s) | 1238400 | 1238784 | 1238784 | 1238784 | 1238784 | 1238784 |
| Number of T-CONT supported by each GPON port | 256 | 1024 | 1024 | 1024 | 1024 | 1024 |
| Board supporting downstream FEC | Yes | Yes | Yes | Yes | Yes | Yes |
| Board supporting upstream FEC | No | Yes | Yes | Yes | Yes | Yes |
| Rogue ONT detection | No | Yes | Yes | Yes | Yes | Yes |
| Number of ONUs supported by a GPON port | 64 | 128 | 128 | 128 | 128 | 128 |
| Number of GEM ports supported by each board | 8192 | 8192 | 8192 | 16384 | 8192 | 8192 |
| Number of GEM ports supported by each GPON port | 3872 | 3872 | 3872 | 3872 | 3872 | 3872 |
| Number of service ports supported by each GEM port | 8 | 8 | 8184 | 8184 | 8184 | 7168 |
| HQoS (four levels) | × | × | × | H802GPFD: × | H806GPBH: × | × |
| H805GPFD: √ | H807GPBH: √ | |||||
| 9216-byte Jumbo frames | × | × | × | H802GPFD: × | H806GPBH: × | × |
| H805GPFD: √ | H807GPBH: √ | |||||
| Power budget supported by a GPON port | Class B+ (28.5 dB, mostly used) | Class B+ (28.5 dB, mostly used), | ||||
| Class C+ (32 dB long reach transmission) | ||||||
| Class C++: 35 dB | ||||||
| Minimum bandwidth supported by a T-CONT | 512kbps | 1 Mbit/s (in the minimum delay mode) | ||||
| 128 kbit/s (in the maximum bandwidth usage mode) | ||||||
