Huawei H901NXED 8-port 10GE optical uplink board for MA5800 series OLT

  • Original Package
  • Board Tested
  • Support 9216 bytes (jumbo frame enabled)
Available:In Stock
$0.00

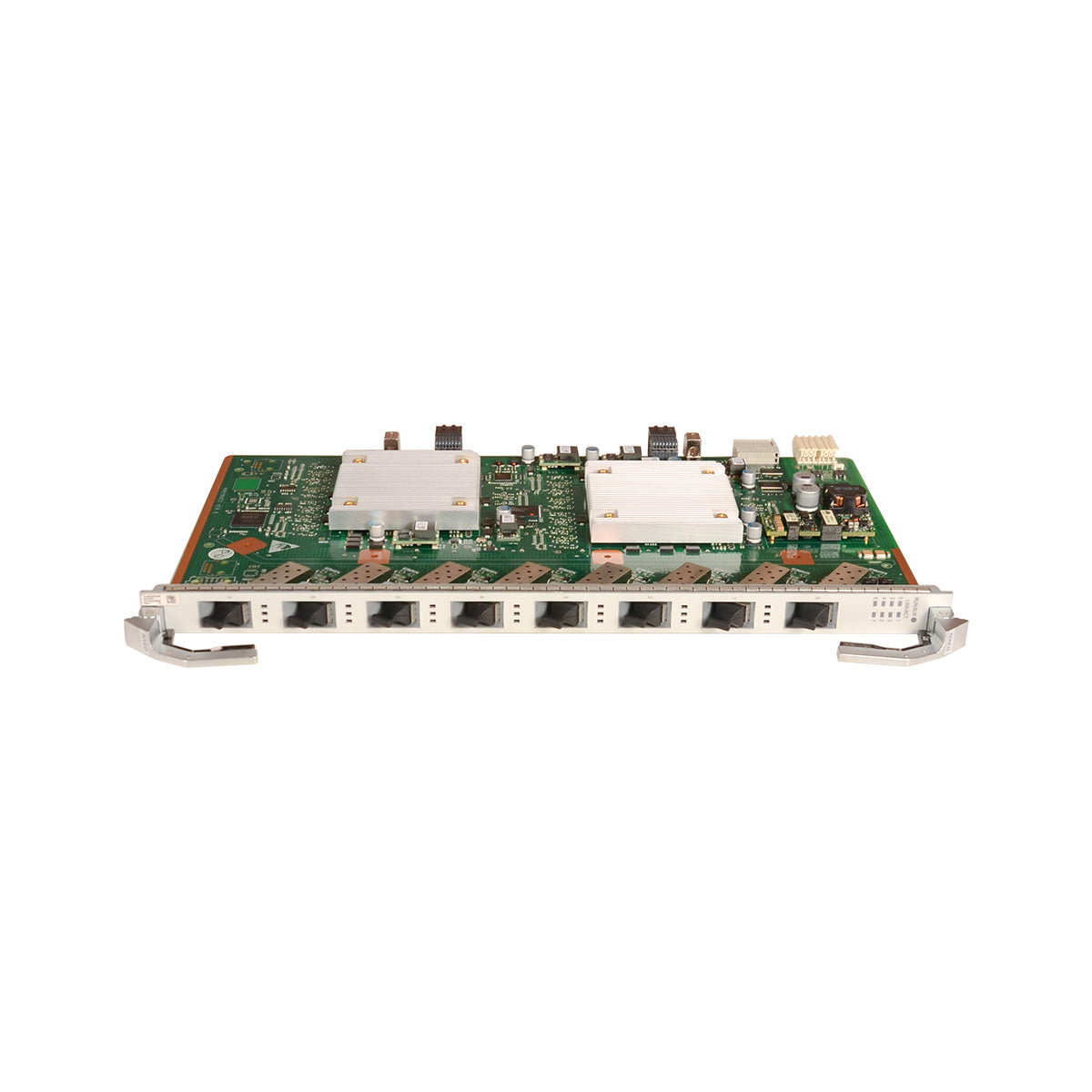

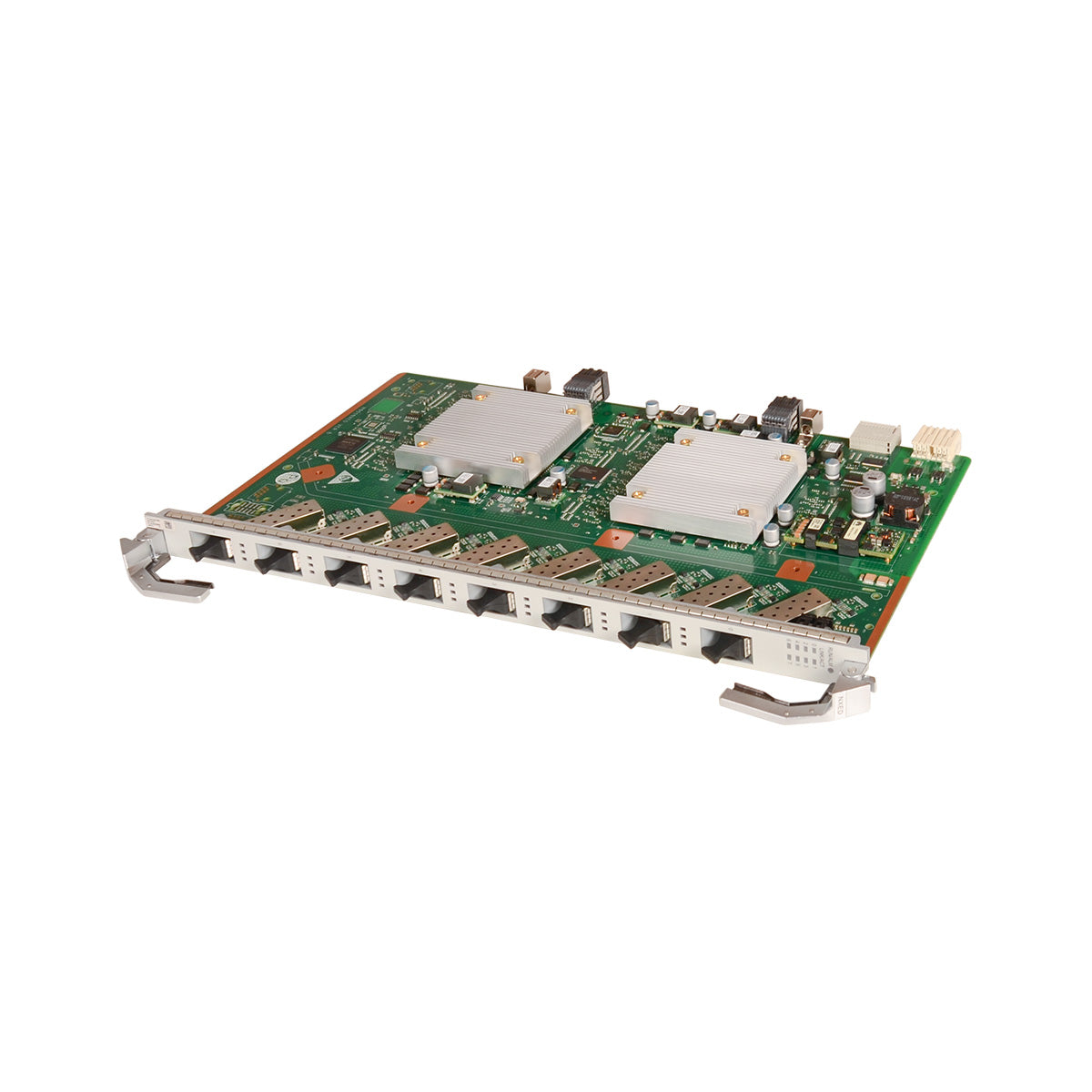

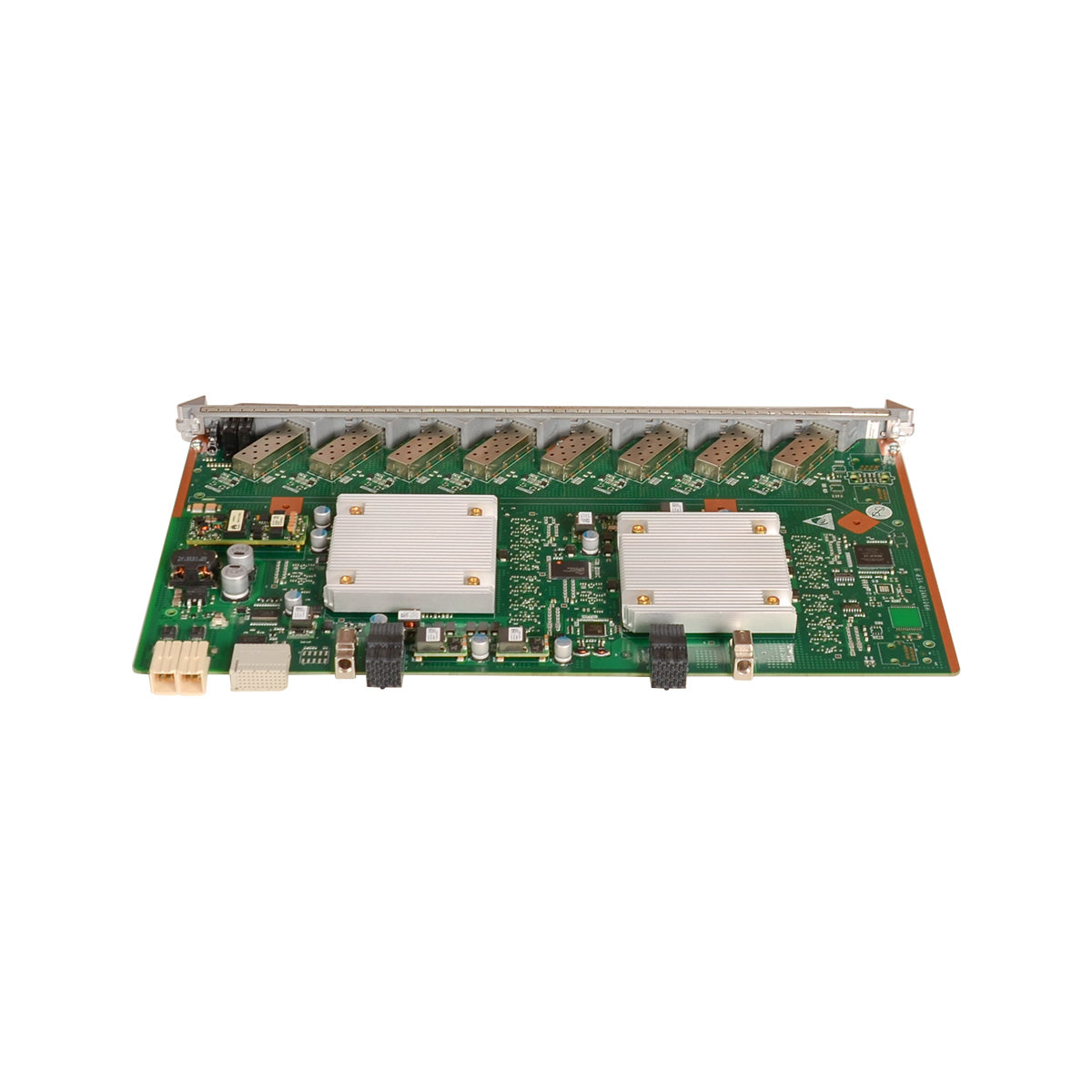

The H901NXED board is an 8-port upstream interface board that provides 10GE/GE optical ports.

Various of bandwidths, switchable port working mode, meeting the needs of bandwidth & smooth evolution of customers

Link aggregation, increasing bandwidths and enhancing reliability

Pluggable optical module for different reaches



Specifications
MAC address number 262143
1588v2 Supported
1588ACR Supported
Sync ETH clock Supported
Dimensions (mm) 23.30 (W) x 257.90 (D) x 399.20 (H)
Weight (kg) 0.99
Power Consumption (W) Static: 40
Maximum: 53
Maximum Frame Size 2052 bytes. After jumbo frame function is enabled, a maximum of 9216 bytes can be supported
Operating temperature -40°C to +65°C

The H901NXED board is an 8-port upstream interface board that provides 10GE/GE optical ports.

Various of bandwidths, switchable port working mode, meeting the needs of bandwidth & smooth evolution of customers

Link aggregation, increasing bandwidths and enhancing reliability

Pluggable optical module for different reaches



Specifications
MAC address number 262143
1588v2 Supported
1588ACR Supported
Sync ETH clock Supported
Dimensions (mm) 23.30 (W) x 257.90 (D) x 399.20 (H)
Weight (kg) 0.99
Power Consumption (W) Static: 40
Maximum: 53
Maximum Frame Size 2052 bytes. After jumbo frame function is enabled, a maximum of 9216 bytes can be supported
Operating temperature -40°C to +65°C
