Huawei HS8545M5 ONT

  • Failure rate<0.2%
  • OEM Supported
  • Firmware Customized
  • Supports TR069/OMCI
Available:In Stock
$0.00

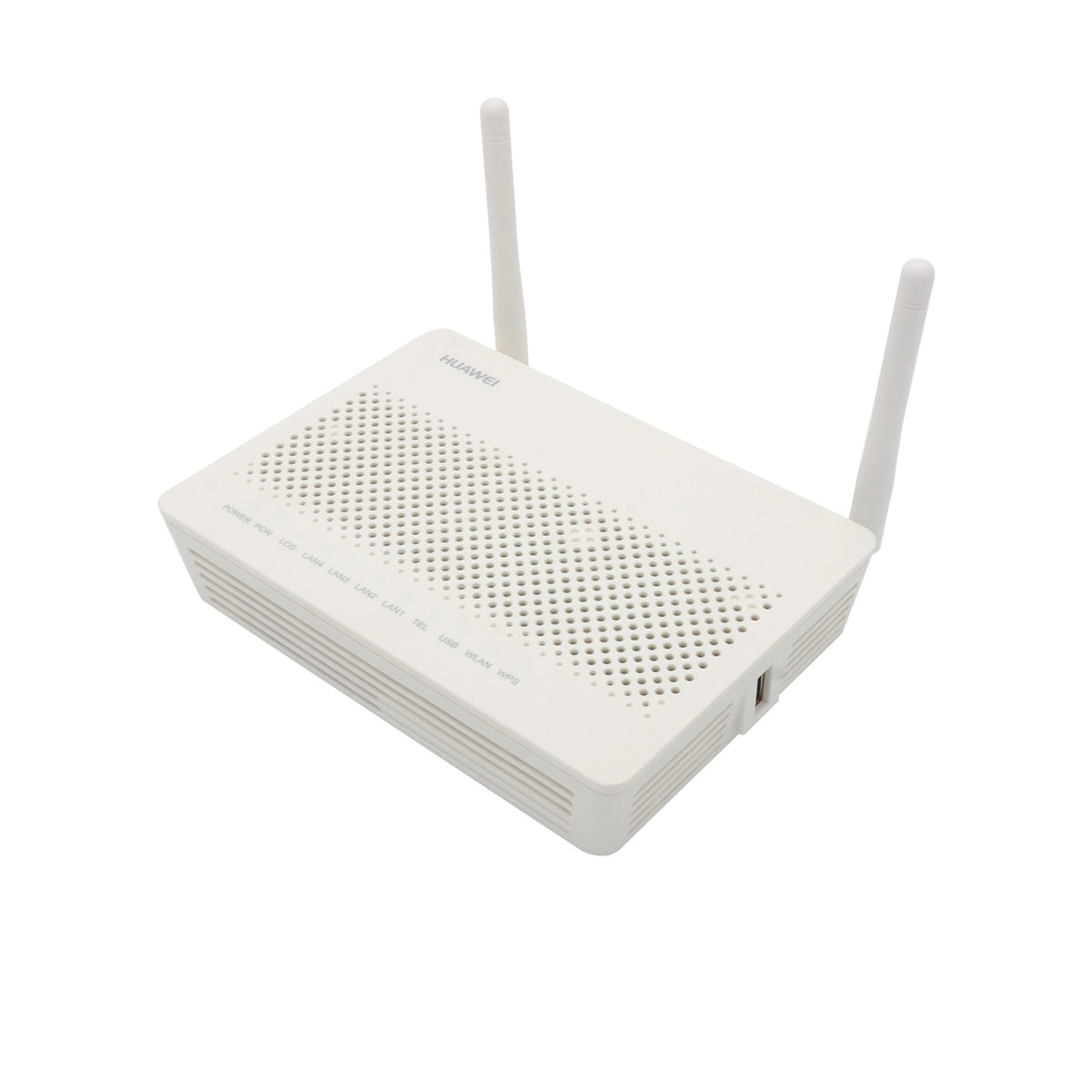

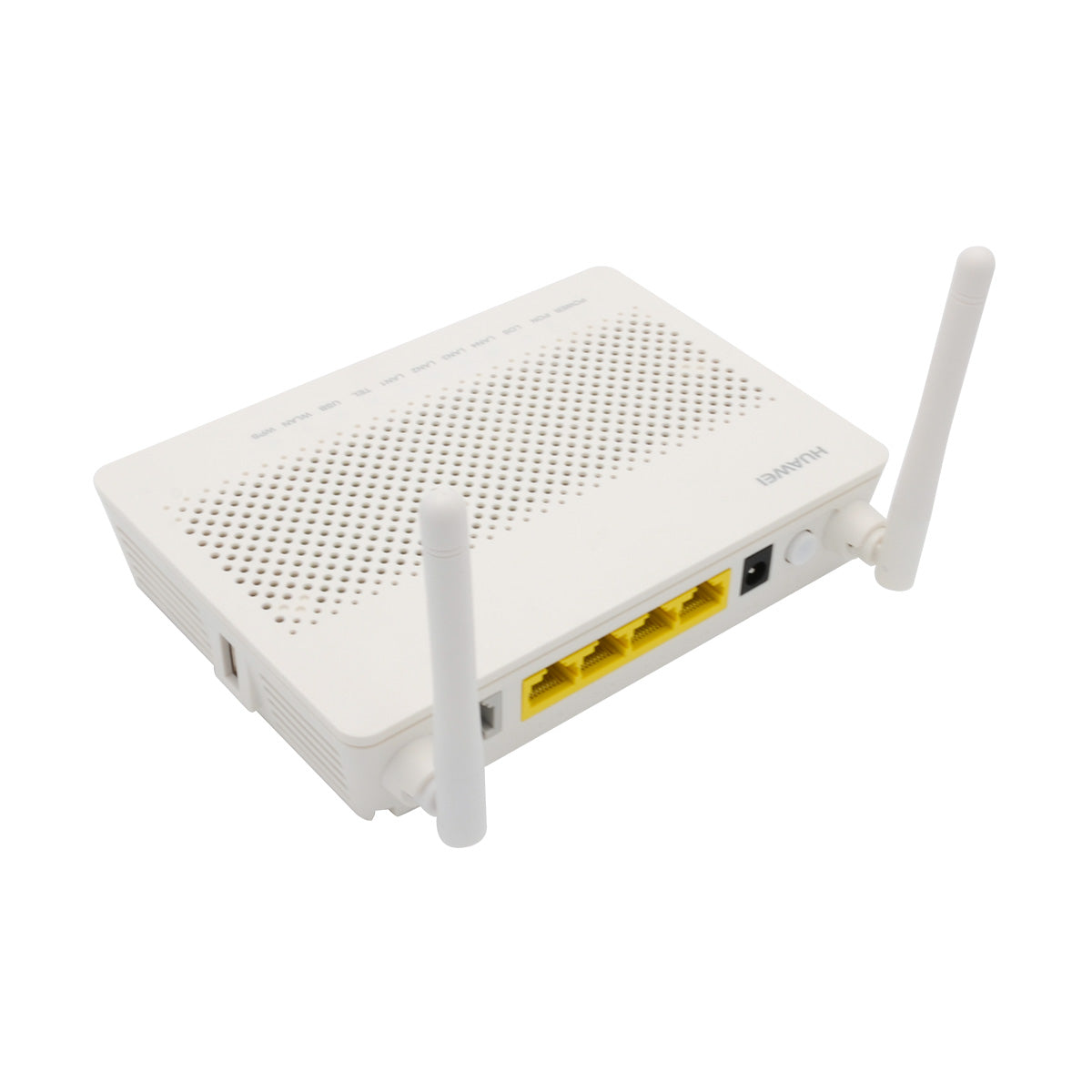

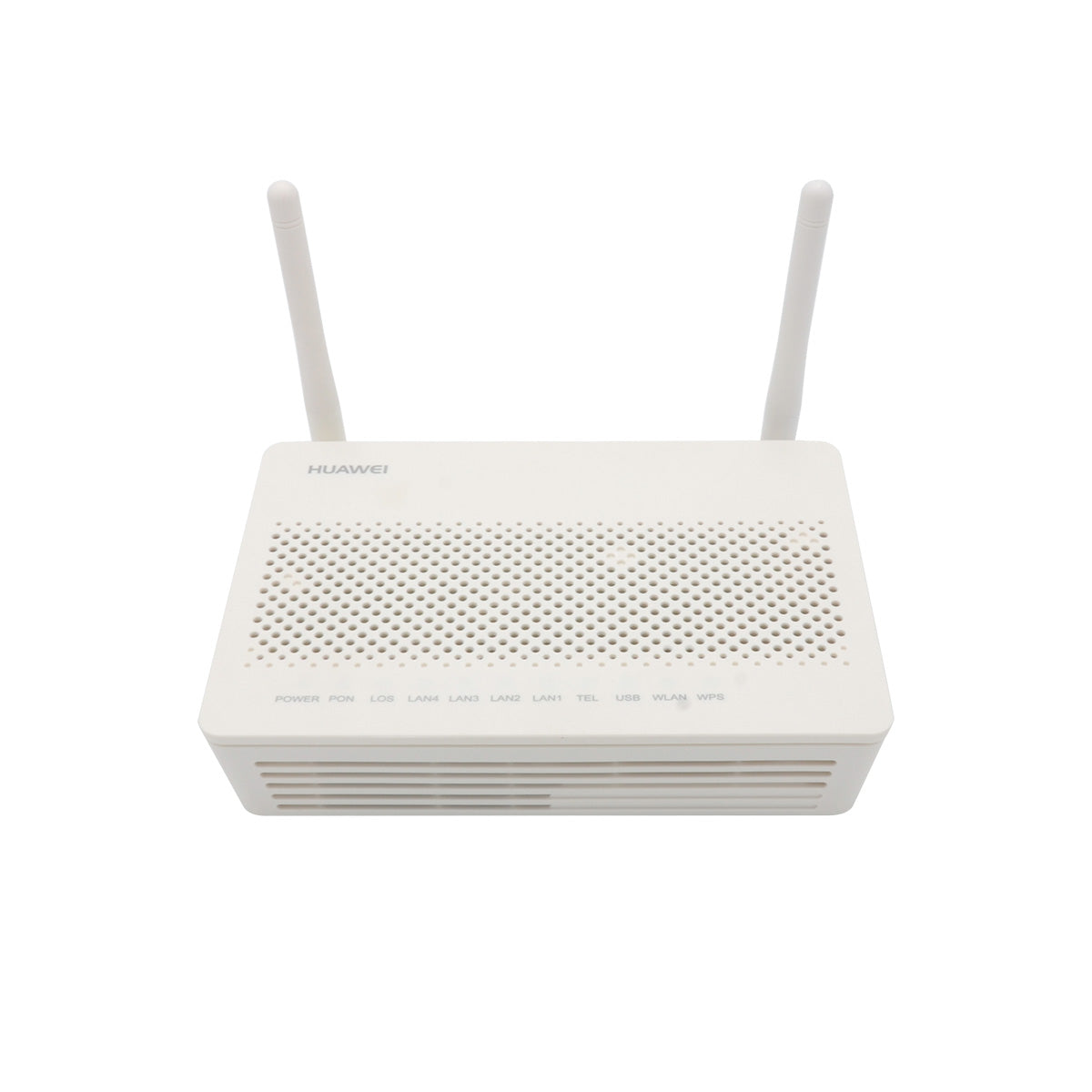

Huawei HS8545M5 2.4G WIFI ONT is a intelligent routing-type Optical Network Terminal (ONT) in Huawei FTTH solution. By using the GPON technology, ultra-broadband access is provided for home users.

Provides 1GE, 3FE, 1POTS and 1USB, 2/5 dbi antenna

Optical connector SC/UPC

Smart Wi-Fi coverage, SIP/H.248 auto-negotiation, Any port any service, Parental control,

Scheduled Wi-Fi shutdown, Smart Wi-Fi sharing: Portal/802.1x authentication and Soft GRE-based sharing

IGMP v2/v3 snooping, IGMP v2 proxy, IGMP v3 proxy, MLD v1/v2 snooping


Specification

Working environment

Operating temperature: 0ºC to 40ºC

Environment humidity: 5% to 95% (noncondensing)

Power consumption

Static power: 3.6W

Maximum power consumption: 12 W
Power specifications Power adapter input: 100 to 240 V AC, 50–60 Hz
System power supply: 11–14 V DC, 1A

User-side Ports

1 x POTS + 1 x GE +3 x FE+ 2.4G Wi-Fi + 1 x USB

HS8545M5 Similar Huawei 2.4G WIFI ONTs

ONT Model UNI(User-Network Interface)
HG8546M 1*GE+3*FE+1*POTS+1*USB+WIFI, 5dBi
HS8545M5 1*GE+3*FE+1*POTS+1*USB+WIFI, 2/5dBi
EG8141A5  1*GE+3*FE+1*POTS+1*USB+WIFI, 5dbi
HG8245A 4FE+2POTS+1USB+2.4G WIFI
HG8245H 4GE+2POTS+1USB+WIFI
EG8245Q 2POTS+4GE+2.4G/5G Wi-Fi+1USB
HG8245C 4FE+2POTS+1USB+2.4G WiFi



Huawei HS8545M5 2.4G WIFI ONT is a intelligent routing-type Optical Network Terminal (ONT) in Huawei FTTH solution. By using the GPON technology, ultra-broadband access is provided for home users.

Provides 1GE, 3FE, 1POTS and 1USB, 2/5 dbi antenna

Optical connector SC/UPC

Smart Wi-Fi coverage, SIP/H.248 auto-negotiation, Any port any service, Parental control,

Scheduled Wi-Fi shutdown, Smart Wi-Fi sharing: Portal/802.1x authentication and Soft GRE-based sharing

IGMP v2/v3 snooping, IGMP v2 proxy, IGMP v3 proxy, MLD v1/v2 snooping


Specification

Working environment

Operating temperature: 0ºC to 40ºC

Environment humidity: 5% to 95% (noncondensing)

Power consumption

Static power: 3.6W

Maximum power consumption: 12 W
Power specifications Power adapter input: 100 to 240 V AC, 50–60 Hz
System power supply: 11–14 V DC, 1A

User-side Ports

1 x POTS + 1 x GE +3 x FE+ 2.4G Wi-Fi + 1 x USB

HS8545M5 Similar Huawei 2.4G WIFI ONTs

ONT Model UNI(User-Network Interface)
HG8546M 1*GE+3*FE+1*POTS+1*USB+WIFI, 5dBi
HS8545M5 1*GE+3*FE+1*POTS+1*USB+WIFI, 2/5dBi
EG8141A5  1*GE+3*FE+1*POTS+1*USB+WIFI, 5dbi
HG8245A 4FE+2POTS+1USB+2.4G WIFI
HG8245H 4GE+2POTS+1USB+WIFI
EG8245Q 2POTS+4GE+2.4G/5G Wi-Fi+1USB
HG8245C 4FE+2POTS+1USB+2.4G WiFi
