MA5801-GP08-H3 is Huawei compact and low-density box-shaped OLT. It provides multiple fiber to the home Huawei FTTH solution to meet the requirements of economical and efficient network construction. It can be flexibly deployed in fast fixed mobile convergence (FMC) scenario, national broadband coverage scenario, and enterprise's all-optical campus scenario.
MA5801-GP08-H3 GPON OLT with 8 x GPON port, 4 x GE/10GE upstream ports, AC/DC power supply
Lightweight and small size
The lightweight OLT weighs less than 5 kg and occupies 1 U installation space. It can be flexibly adapted to various scenarios.
Dual power supplies, high reliability
Supports dual AC or DC power supplies, providing flexible power supply and high reliability.
Easy installation and flexible deployment
The matching small outdoor cabinet can be installed on a pole, tower, or wall, facilitating installation and reducing engineering costs.

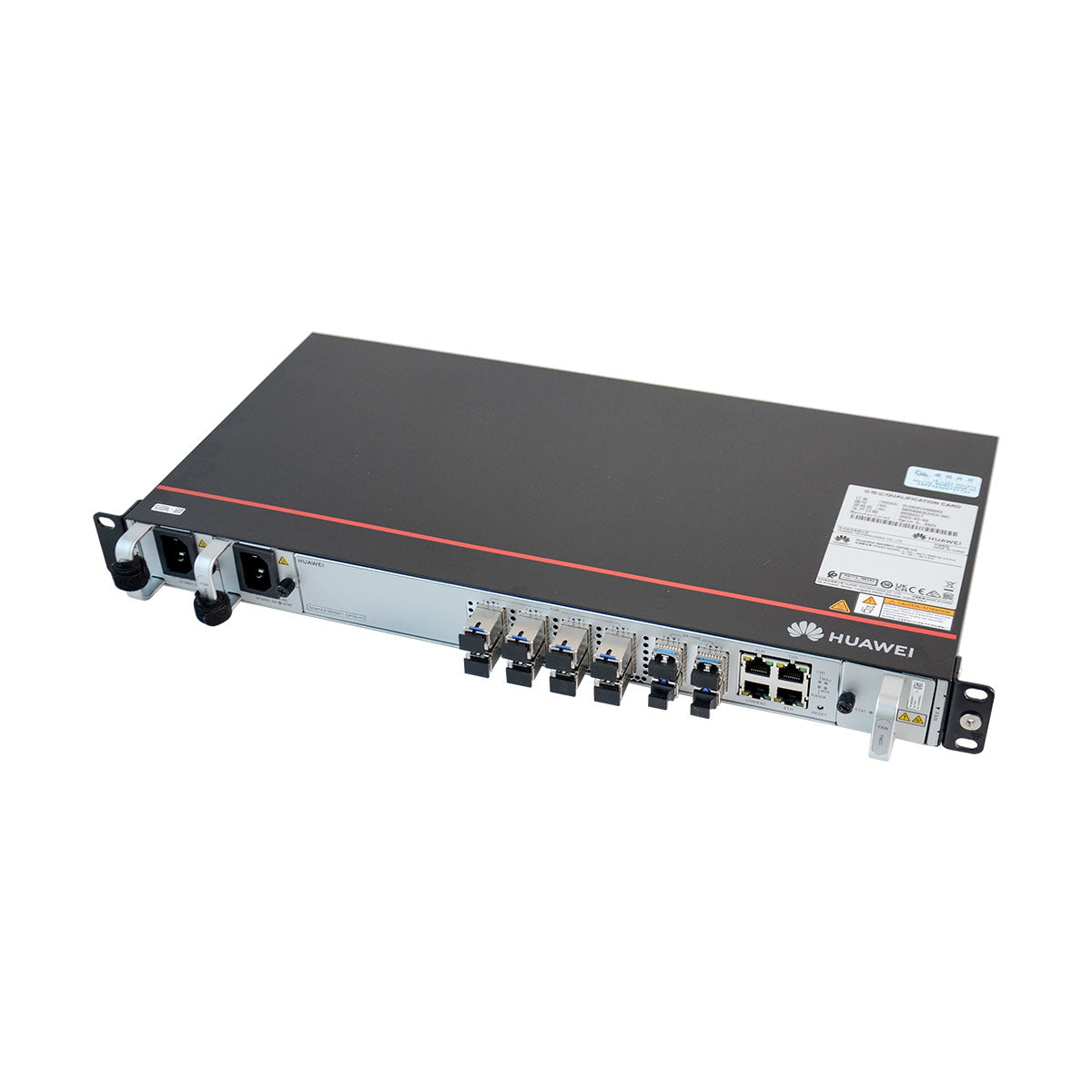

MA5801-GP08-H3 Appearance and Structure
It houses integrated control and service module, 1 pluggable fan module and 2 pluggable power modules. Its mounting ears are applicable to IEC specifications and ETSI specifications, and are used in racks or cabinets of different specifications.
| Item | Specification |
| System switching capacity | 110 Gbit/s |
| MAC addresses | 32768 |
| Access ONT | 1024 |
| IPv4 routing table | 8192 |
| IPv6 routing table | 4096 |
| ARP table | 16384 |
| Bit error rate (BER) in full load | A BER smaller than 10 e-10 for a port that transmits data in full load |
| Upstream ports | 4 GE/10GE |
| Service ports | 8 GPON |
| Layer 2 features | |
| VLAN+MAC forwarding | SVLAN+CVLAN forwarding |
| PPPoE+ | DHCP option82 |
| Layer 3 features | |
| Static route | RIP/RIPng |
| OSPF/OSPFv3 | IS-IS |
| BGP/BGP4+ | ARP |
| DHCP relay | VRF |
| Multicast | |
| IGMP v2/v3 | IGMP Proxy/Snooping |
| MLD v1/v2 | MLD Proxy/Snooping |
| VLAN-based IPTV multicast | IPv4 PIM and PIM-SSM |
| QoS | |
| Traffic classification | Priority processing |
| trTCM-based traffic policing | WRED |
| Traffic shaping | HQoS |
| PQ/WRR/PQ+WRR | ACL |
| IPv6 | |
| IPv4/IPv6 dual stack | IPv6 L2 and L3 forwarding |
| DHCPv6 relay | |
| System reliability | |
| GPON Type B/Type C protection | ERPS (G.8032) |
| 2 power boards for redundancy protection | In-service board fault detection and rectification |
| Aggregation | |
| Aggregation management | |
| System reliability specifications | System availability for the typical configuration: > 99.999% |
| Mean time between failures (MTBF): about 61 years | |
| NOTE: | |
| Due to different network environments and different boards used by devices, the preceding MTBF (61 years) of the MA5801 is only for reference. The preceding values are only for reference. For details, contact the related Huawei engineers. | |
| Power consumption | DC power supply: |
| Static power consumption: 46W | |
| Typical power consumption: 64W | |
| Maximum power consumption: 111W | |
| AC power supply: | |
| Static power consumption: 47W | |
| Typical power consumption: 65W | |
| Maximum power consumption: 112W | |
| NOTE: | |
| The power consumption of a product is tested in the following conditions: | |
| Static power consumption: 25°C, no optical module in optical ports, and no service. | |
| Typical power consumption: 25°C, 4 x 10GE(10kM) upstream ports, 8 x GPON(CLASS C+) ports on the user side, full services, and maximum traffic. | |
| Maximum power consumption: 65°C, 4 x 10GE(10kM) upstream ports, 8 x GPON(CLASS C+) ports on the user side, full services, and maximum traffic. | |
| Dimensions (W x D x H) (mm) | Excluding mounting ears: 442 x 220 x 43.6 |
| Including IEC mounting ears: 482.6 x 220 x 43.6 | |
| Including ETSI mounting ears: 531 x 220 x 43.6 | |
| Maximum fully-loaded weight | 5 kg |
| Power supply mode | DC power supply (dual backup) |
| AC power supply (dual backup) | |
| Working voltage range | DC power supply: –38.4 V to –72 V |
| AC power supply: 100 V to 240 V | |
| Rated voltage | DC power supply: –48 V/–60 V |
| AC power supply: 110 V/220 V | |
| Maximum input current | DC power supply: 6 A |
| AC power supply: 2.5 A | |
| Ambient temperature | –40°C to +65°C |
| The device can start up at a lowest temperature of –25°C. | |
| NOTE: | |
| The +65°C temperature refers to the highest temperature measured at the air intake vent of a service subrack. | |
| Ambient humidity | 5%–95% RH |
| Atmospheric pressure | 70–106 kPa |
