ZTE F670L V9.0 ONT
- Failure rate<0.2%
- Firmware Customized
- Supports OMCI
- OEM Supported
ZTE ZXHN F670L is an AC1200 WiFi 5 dual band Gigabit Premium triple-play GPON gateway. Based on customer requirements, the maximum 5dBi gain antennas can enhance the Wi-Fi coverage area and improve performance.
The F670L, a GPON optical network terminal (ZTE ONT) for home users, is designed for fiber-to-the-home (FTTH) scenarios and supports desktop mounting and wall mounting.

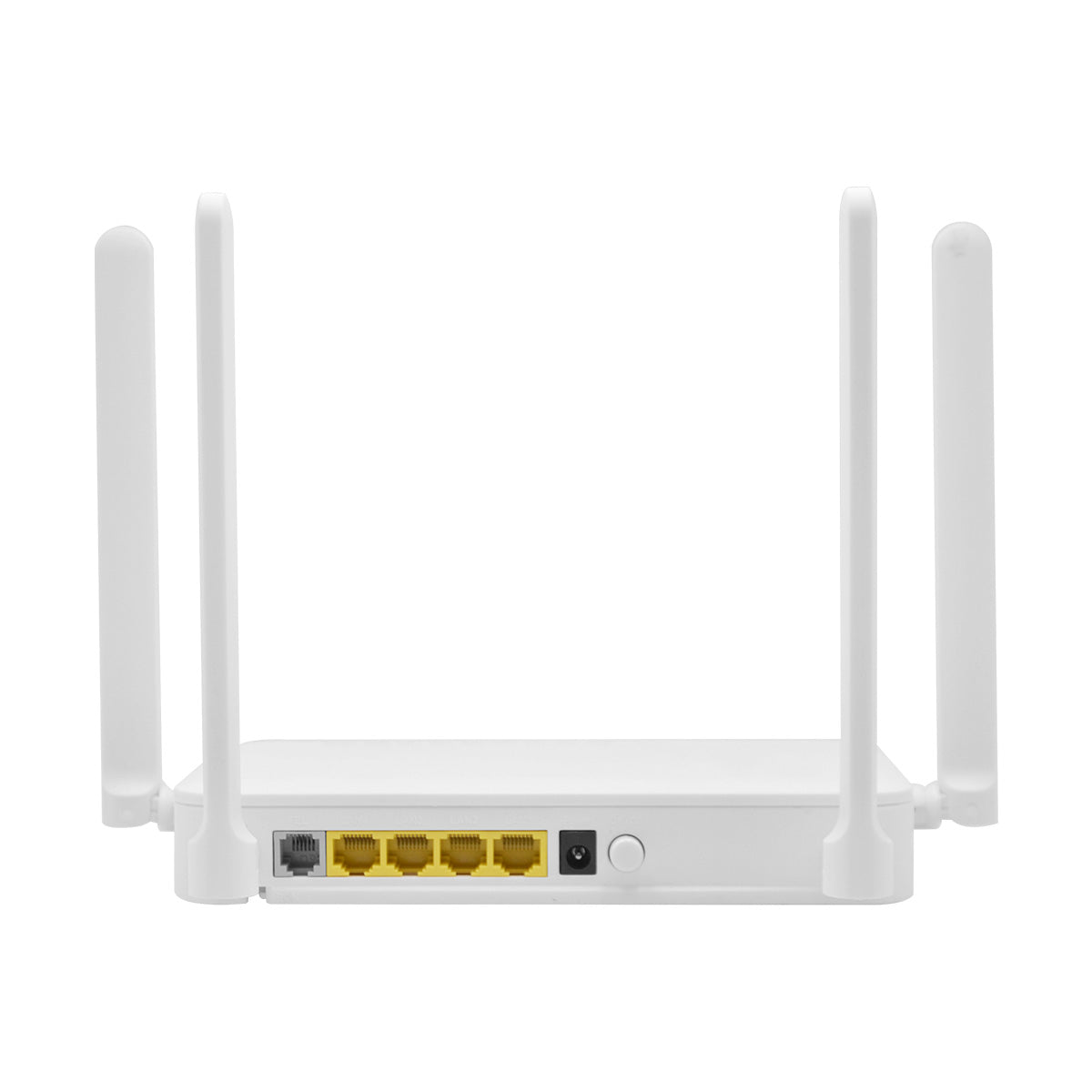

It comes with four Gigabit Ethernet LAN ports, one phone port, two USB ports, power button ON/OFF button, operating simultaneously in 2.4GHz and 5GHz.
Home users can easily access voice services, video services and many other kinds of high-speed broadband services by its enriched interfaces.
Through high-performance Wi-Fi signal, it perfectly guarantees the better service experience of data and high-definition video, and provides users with faster access, smart interconnection, and intelligent broadband life.
Provides 4*GE+1*POTS+1*USB+2.4G/5G WIFI 4x5dbi antennas
Optical connector SC/UPC
GPON supported
OMCI supported
ZTE F670L ONT Application Scenario
Specification | |
Interfaces | |
WiFi | • Frequency: 2.4 GHz, 5GHz • IEEE 802.11a/n/ac Wi-Fi @ 5GHz • IEEE 802.11b/g/n Wi-Fi @ 2.4GHz |
Buttons | • Power On/Off • WPS • Reset • Wi-Fi |
Management | OMCI remote management |
Antenna | 5dbi External antennas |
Indicators | Power, PON, LOS, Internet, LAN1, LAN2, LAN3, LAN4, Phone, Wi-Fi, WPS |
Working environment | Operating temperature: 0ºC to 40ºC |
Environment humidity: 5% to 95% | |
Power supply | 12 V DC, 1.5 A |
Dimensions |
245mm x 215mm x 40mm |
ZTE ZXHN F670L is an AC1200 WiFi 5 dual band Gigabit Premium triple-play GPON gateway. Based on customer requirements, the maximum 5dBi gain antennas can enhance the Wi-Fi coverage area and improve performance.
The F670L, a GPON optical network terminal (ZTE ONT) for home users, is designed for fiber-to-the-home (FTTH) scenarios and supports desktop mounting and wall mounting.
It comes with four Gigabit Ethernet LAN ports, one phone port, two USB ports, power button ON/OFF button, operating simultaneously in 2.4GHz and 5GHz.
Home users can easily access voice services, video services and many other kinds of high-speed broadband services by its enriched interfaces.
Through high-performance Wi-Fi signal, it perfectly guarantees the better service experience of data and high-definition video, and provides users with faster access, smart interconnection, and intelligent broadband life.
Provides 4*GE+1*POTS+1*USB+2.4G/5G WIFI 4x5dbi antennas
Optical connector SC/UPC
GPON supported
OMCI supported
ZTE F670L ONT Application Scenario
Specification | |
Interfaces | |
WiFi | • Frequency: 2.4 GHz, 5GHz • IEEE 802.11a/n/ac Wi-Fi @ 5GHz • IEEE 802.11b/g/n Wi-Fi @ 2.4GHz |
Buttons | • Power On/Off • WPS • Reset • Wi-Fi |
Management | OMCI remote management |
Antenna | 5dbi External antennas |
Indicators | Power, PON, LOS, Internet, LAN1, LAN2, LAN3, LAN4, Phone, Wi-Fi, WPS |
Working environment | Operating temperature: 0ºC to 40ºC |
Environment humidity: 5% to 95% | |
Power supply | 12 V DC, 1.5 A |
Dimensions |
245mm x 215mm x 40mm |
