FiberHome AN5516-01/AN5116-06B OLT 19inch Chassis

  • Brand New Condition
  • Latest Firmware Loaded
  • Latest Manufacture Year
  • Power Cable Included
  • Blank Panel Included
Available:In Stock
$0.00

The AN5516-01/AN5116-06B is a new intelligent carrier-class MSAN/GPON/10G PON integrated access product offered by FiberHome. It is large carrier-class central office equipment. It is being used and works together with the remote end ONUs (Optical Network Unit) as an office end OLTs (Optical Line Terminal) in MSAN/GPON/10G PON system.

FiberHome AN5516-01/AN5116-06B provides 16 service slots, and large-sized optical line terminal equipment deployed in a central office. Featuring large capacity and high bandwidth, the equipment can cater to the access demand in a densely-populated area.

FiberHome AN5516-01/AN5116-06B

The FiberHome AN5516 OLT series devices include the AN5516-01/AN5116-06B, AN5516-06 and AN5516-04. Users can choose a desired device type according to their access demands:

· AN5516-01/AN5116-06B Providing 16 service slots, the AN5116-06B is large-sized optical line terminal equipment deployed in a central office. Featuring large capacity and high bandwidth, the equipment can cater for the access demand in a densely-populated area.

· AN5516-06 Providing 6 service slots, the AN5516-06 is compact carrier-class access equipment deployed in a central office. It can be applied to access scenarios with moderate density, where large-capacity access equipment may be insufficiently used. This helps save the deployment cost of users.

· AN5516-04 providing 2 service slots. It is applicable to access scenarios in sparsely-populated areas, and can be deployed flexibly.

The OLT equipment supports various access standards, and can be evolved smoothly from the current PON networks to the next-generation PON networks. Multiple services including GPON / XG-PON / GPON&XG-PON Combo Service can be connected to the same subrack.

The OLT equipment supports various access standards, and can be evolved smoothly from the current PON networks to the next-generation PON networks. Multiple services including GPON / XG-PON / GPON&XG-PON Combo Service can be connected to the same subrack.

Item Specification

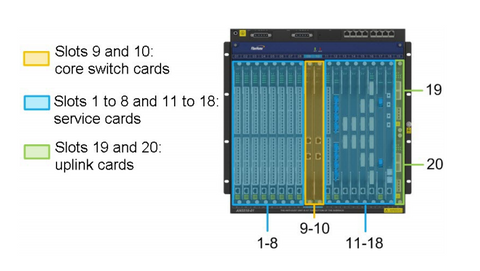

Slot configuration Two slots for core switch cards (slots 9 and 10)
16 slots for service cards (slots 1 to 8 and 11 to 18)
Two slots for uplink cards (slots 19 and 20)
Two slots for vectoring cards (slots 8 and 11)
Maximum input current 63 A
Power supply mode DC
Working voltage range -40 V to -56 V
Rated voltage -48 V
Slot bandwidth HSWA / HSWB: 10G
HSWD: 40G
Switch capacity of the backplane bus 3.76 Tbit/s
Switch capacity of core switch cards (load sharing mode) 488 Gbit/s (when the HSWA / HSWB card is configured)
1.92 Tbit/s (when the HSWD card is configured)
Maximum number of MAC addresses  HSWA / HSWB: 32K
HSWD (2202258): 128K
HSWD (2201069): 288K
Maximum number of IPv4 routing tables  HSWA: 8K
HSWD (2201069): 128K
HSWD (2202258): 64K
Maximum number of IPv6 routing tables  HSWA: 4K
HSWD (2201069): 64K
HSWD (2202258): 32K
Maximum number of ARP tables  8K
Maximum number of multicast groups  HSWA / HSWB: 8K
HSWD: 16K
Maximum number of EPON ports  256
Maximum number of GPON ports  256
Maximum number of 10G EPON ports 128
Maximum number of XG-PON ports  128
Maximum number of GPON & XG-PON Combo ports  128
Maximum number of GPON & XGS-PON Combo ports  128
Maximum number of Ethernet ports  256 GE optical / electrical ports
Maximum number of POTS subscriber lines  1024
Maximum number of ADSL subscriber lines  1024
Maximum number of VDSL subscriber lines  1024
Maximum number of vectored VDSL subscriber lines  17a SLV: 768
35b SLV: 384
Maximum number of voice and data hybrid subscriber lines  768
Maximum number of SHDSL subscriber lines 512
Maximum number of vectored voice and data hybrid subscriber lines  768
Maximum number of ISDN subscriber lines 256
Maximum number of uplink ports  2 × 10GE optical ports + 8 × GE optical / electrical ports
(HU1A)
2 × 10GE optical ports + 8 × GE optical / electrical ports
(HU1B)
4 × 10GE optical ports + 4 × GE optical / electrical ports
(HU2A)
4 × 10GE optical ports + 8 × GE optical / electrical ports
(HU2C)
4 × 10GE optical ports + 4 × GE optical / electrical ports
(HU2K)
8 × 10GE optical ports (HU4A)
12 × GE optical / electrical ports (GU6F / GU6B)
Maximum number of ONUs connected to the system HSWA / HSWB: 8K
HSWD: 16K
Maximum number of multicast users  HSWA / HSWB: 8K
HSWD: 16K
Maximum transmission distance (PON port) 60 km
Maximum uplink transmission distance 80 km
Bandwidth allocation granularity of DBA EC4B / EC8B / ECOB / XG8A: 64 kbit/s
GC4B / GC8B / GCOB: 64 kbit/s
XP4A / XP8A: 256 kbit/s
XS8C: 64 kbit/s (GPON) or 256 kbit/s (XGS-PON)
XP8C: 64 kbit/s (GPON) or 256 kbit/s (XG-PON)
Maximum power consumption: 1218 W with typical configuration: 2 × HSWD + 16 × XS8C + 2 × HU2A + 1
× FAN
Dimensions of a subrack with mounting ears for 19-inch cabinets (H × W × D) 471.7 mm × 480.8 mm × 262.7 mm
Dimensions of a subrack with mounting ears for 21-inch cabinets (H × W × D) 471.7 mm × 530 mm × 262.7 mm
Weight of an empty subrack (including the fan unit) 13.9 kg

 Compatibility Between Interface Cards and FiberHome AN5516 OLT

Card Name AN5116-01 AN5516-06 AN5516-04
EC4B
EC8B
ECOB
GC4B
GC8B
GCOB
XP4A
XP8A
XS8C
XP8C
XPOA
XG8A
XS8A

 Comparison between PON Technologies in Bandwidth and Capacity

PON Technology Uplink / Downlink Bandwidth (bit/s) Maximum Split Ratio
EPON 1.25G / 1.25G 1:64
10G EPON 10G / 10G (symmetric)
1.25G / 10G (asymmetric)
1:128
GPON 1.25G / 2.5G 1:128
XG-PON 2.5G / 10G 1:128
XGS-PON 10G / 10G 1:128

The AN5516-01/AN5116-06B is a new intelligent carrier-class MSAN/GPON/10G PON integrated access product offered by FiberHome. It is large carrier-class central office equipment. It is being used and works together with the remote end ONUs (Optical Network Unit) as an office end OLTs (Optical Line Terminal) in MSAN/GPON/10G PON system.

FiberHome AN5516-01/AN5116-06B provides 16 service slots, and large-sized optical line terminal equipment deployed in a central office. Featuring large capacity and high bandwidth, the equipment can cater to the access demand in a densely-populated area.

FiberHome AN5516-01/AN5116-06B

The FiberHome AN5516 OLT series devices include the AN5516-01/AN5116-06B, AN5516-06 and AN5516-04. Users can choose a desired device type according to their access demands:

· AN5516-01/AN5116-06B Providing 16 service slots, the AN5116-06B is large-sized optical line terminal equipment deployed in a central office. Featuring large capacity and high bandwidth, the equipment can cater for the access demand in a densely-populated area.

· AN5516-06 Providing 6 service slots, the AN5516-06 is compact carrier-class access equipment deployed in a central office. It can be applied to access scenarios with moderate density, where large-capacity access equipment may be insufficiently used. This helps save the deployment cost of users.

· AN5516-04 providing 2 service slots. It is applicable to access scenarios in sparsely-populated areas, and can be deployed flexibly.

The OLT equipment supports various access standards, and can be evolved smoothly from the current PON networks to the next-generation PON networks. Multiple services including GPON / XG-PON / GPON&XG-PON Combo Service can be connected to the same subrack.

The OLT equipment supports various access standards, and can be evolved smoothly from the current PON networks to the next-generation PON networks. Multiple services including GPON / XG-PON / GPON&XG-PON Combo Service can be connected to the same subrack.

Item Specification
Slot configuration Two slots for core switch cards (slots 9 and 10)
16 slots for service cards (slots 1 to 8 and 11 to 18)
Two slots for uplink cards (slots 19 and 20)
Two slots for vectoring cards (slots 8 and 11)
Maximum input current 63 A
Power supply mode DC
Working voltage range -40 V to -56 V
Rated voltage -48 V
Slot bandwidth HSWA / HSWB: 10G
HSWD: 40G
Switch capacity of the backplane bus 3.76 Tbit/s
Switch capacity of core switch cards (load sharing mode) 488 Gbit/s (when the HSWA / HSWB card is configured)
1.92 Tbit/s (when the HSWD card is configured)
Maximum number of MAC addresses  HSWA / HSWB: 32K
HSWD (2202258): 128K
HSWD (2201069): 288K
Maximum number of IPv4 routing tables  HSWA: 8K
HSWD (2201069): 128K
HSWD (2202258): 64K
Maximum number of IPv6 routing tables  HSWA: 4K
HSWD (2201069): 64K
HSWD (2202258): 32K
Maximum number of ARP tables  8K
Maximum number of multicast groups  HSWA / HSWB: 8K
HSWD: 16K
Maximum number of EPON ports  256
Maximum number of GPON ports  256
Maximum number of 10G EPON ports 128
Maximum number of XG-PON ports  128
Maximum number of GPON & XG-PON Combo ports  128
Maximum number of GPON & XGS-PON Combo ports  128
Maximum number of Ethernet ports  256 GE optical / electrical ports
Maximum number of POTS subscriber lines  1024
Maximum number of ADSL subscriber lines  1024
Maximum number of VDSL subscriber lines  1024
Maximum number of vectored VDSL subscriber lines  17a SLV: 768
35b SLV: 384
Maximum number of voice and data hybrid subscriber lines  768
Maximum number of SHDSL subscriber lines 512
Maximum number of vectored voice and data hybrid subscriber lines  768
Maximum number of ISDN subscriber lines 256
Maximum number of uplink ports  2 × 10GE optical ports + 8 × GE optical / electrical ports
(HU1A)
2 × 10GE optical ports + 8 × GE optical / electrical ports
(HU1B)
4 × 10GE optical ports + 4 × GE optical / electrical ports
(HU2A)
4 × 10GE optical ports + 8 × GE optical / electrical ports
(HU2C)
4 × 10GE optical ports + 4 × GE optical / electrical ports
(HU2K)
8 × 10GE optical ports (HU4A)
12 × GE optical / electrical ports (GU6F / GU6B)
Maximum number of ONUs connected to the system HSWA / HSWB: 8K
HSWD: 16K
Maximum number of multicast users  HSWA / HSWB: 8K
HSWD: 16K
Maximum transmission distance (PON port) 60 km
Maximum uplink transmission distance 80 km
Bandwidth allocation granularity of DBA EC4B / EC8B / ECOB / XG8A: 64 kbit/s
GC4B / GC8B / GCOB: 64 kbit/s
XP4A / XP8A: 256 kbit/s
XS8C: 64 kbit/s (GPON) or 256 kbit/s (XGS-PON)
XP8C: 64 kbit/s (GPON) or 256 kbit/s (XG-PON)
Maximum power consumption: 1218 W with typical configuration: 2 × HSWD + 16 × XS8C + 2 × HU2A + 1
× FAN
Dimensions of a subrack with mounting ears for 19-inch cabinets (H × W × D) 471.7 mm × 480.8 mm × 262.7 mm
Dimensions of a subrack with mounting ears for 21-inch cabinets (H × W × D) 471.7 mm × 530 mm × 262.7 mm
Weight of an empty subrack (including the fan unit) 13.9 kg

 Compatibility Between Interface Cards and FiberHome AN5516 OLT

Card Name AN5116-01 AN5516-06 AN5516-04
EC4B
EC8B
ECOB
GC4B
GC8B
GCOB
XP4A
XP8A
XS8C
XP8C
XPOA
XG8A
XS8A

 Comparison between PON Technologies in Bandwidth and Capacity

PON Technology Uplink / Downlink Bandwidth (bit/s) Maximum Split Ratio
EPON 1.25G / 1.25G 1:64
10G EPON 10G / 10G (symmetric)
1.25G / 10G (asymmetric)
1:128
GPON 1.25G / 2.5G 1:128
XG-PON 2.5G / 10G 1:128
XGS-PON 10G / 10G 1:128
