Huawei S6735-S24X6C Switch

  • Brand New Condition
  • Original Box Packed
  • Latest Firmware Version
Available:In Stock
$0.00

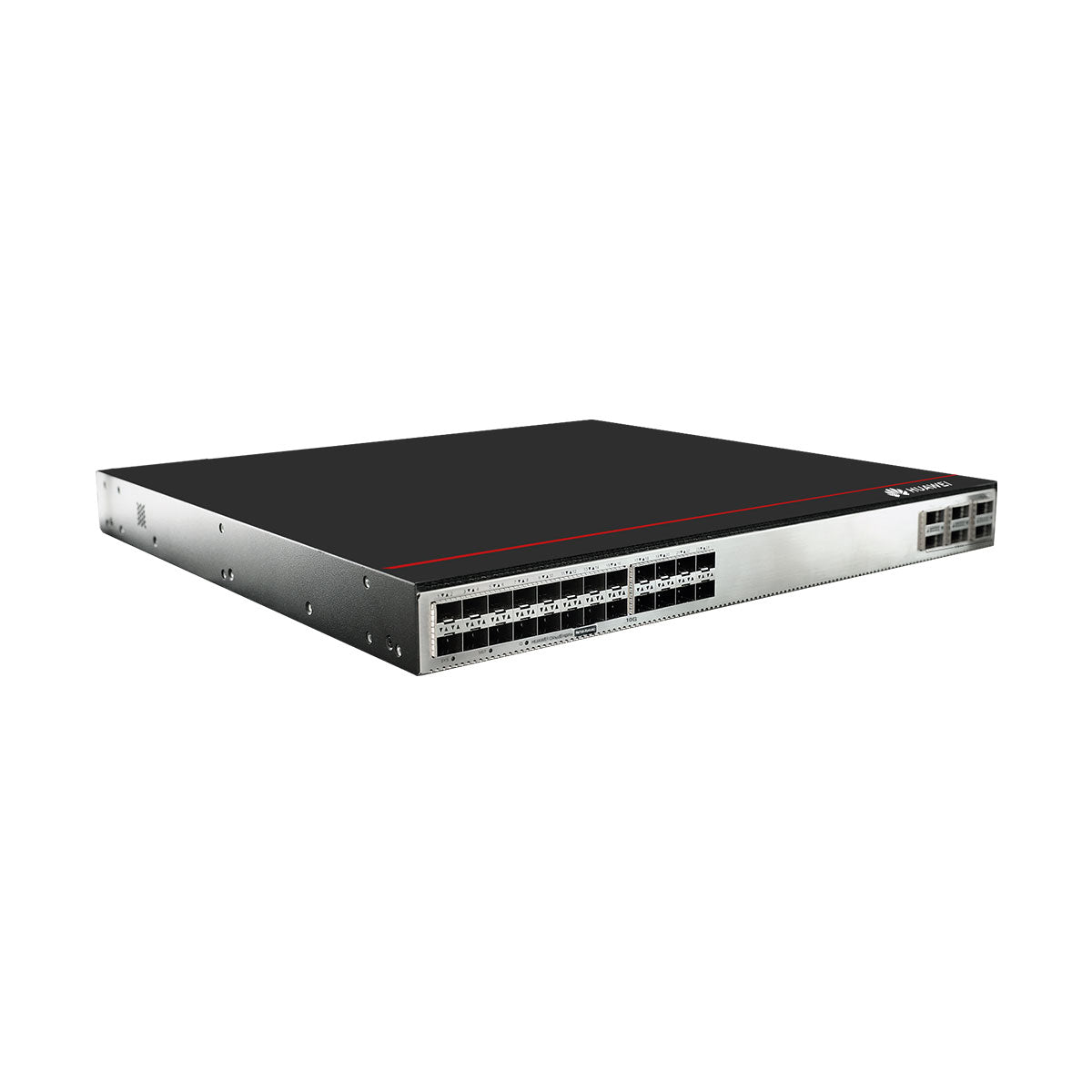

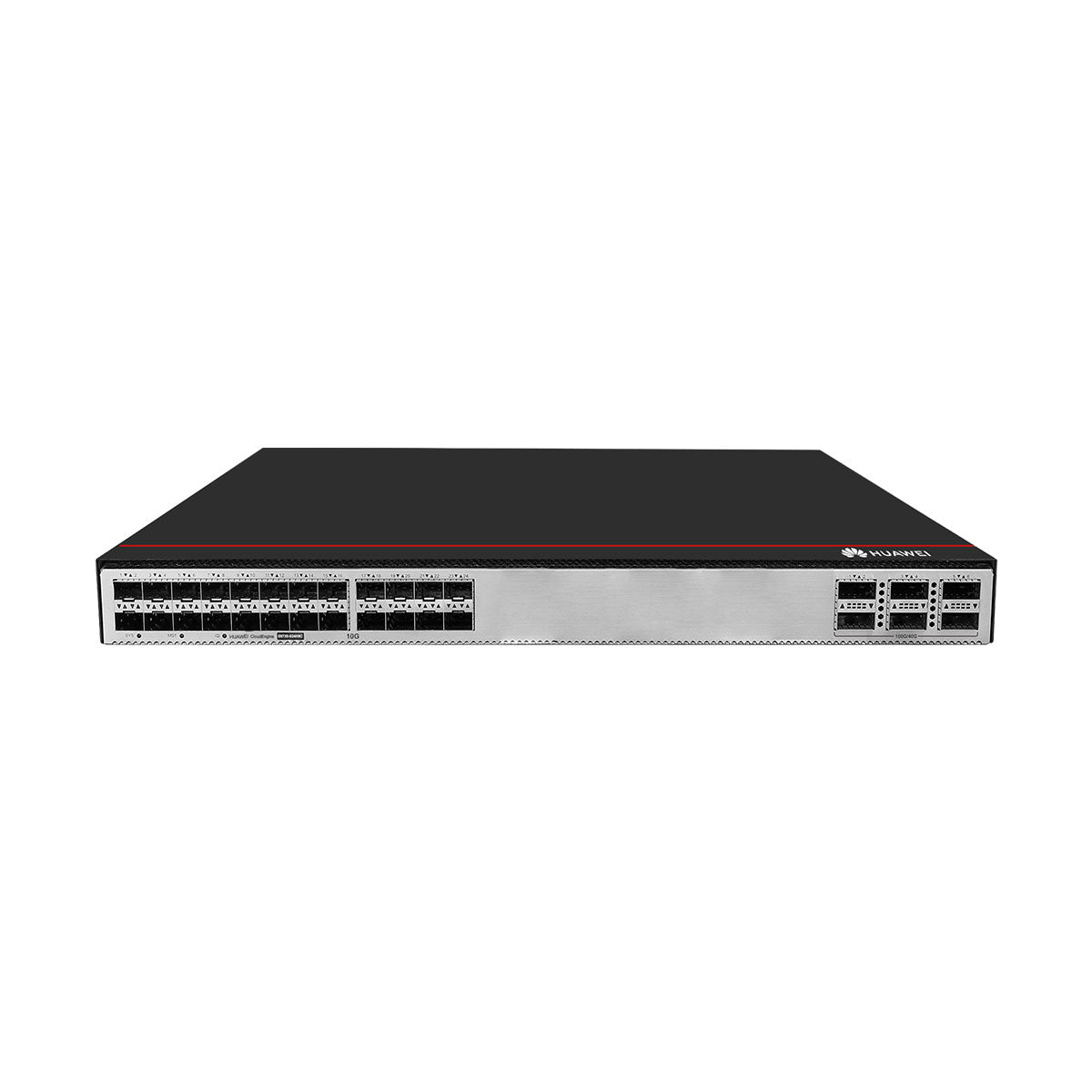

Huawei S6735-S24X6C switch with 24-port 10GE SFP+, 6-port 100GE QSFP28, with 2 power slots

Memory 4 GB; Flash memory The physical space is 8 GB.

Applicable power module:
PAC600S12-CB (600 W AC&240 V DC Power Module)
PAC600S12-DB (600 W AC&240 V DC Power Module)
PAC600S12-EB (600 W AC&240 V DC Power Module)
PDC1000S12-DB (1000 W DC Power Module)

The S6700 series Ethernet switches are next-generation 10G fixed switches. The S6700 can function as an access switch in an Internet data center (IDC) or a core switch on a campus network. The S6700 has industry-leading performance and provides line-speed 10GE access ports and line-speed 40GE even 100GE uplink ports.



Basic Information
Description S6735-S24X6C (24*10GE SFP+ ports, 6*100GE QSFP28 ports, without power modules)
Part Number 98011880
Model S6735-S24X6C
First supported version V200R021C00SPC600
Technical Specifications
Dimensions without packaging (H x W x D) [mm(in.)] Basic dimensions (excluding the parts protruding from the body):
43.6 mm x 442.0 mm x 420.0 mm
Maximum dimensions (the depth is the distance from ports
on the front panel to the parts protruding from the rear panel):
43.6 mm x 442.0 mm x 446.0 mm
Dimensions with packaging (H x W x D) [mm(in.)] 175 mm x 650 mm x 550 mm (6.89 in. x 25.59 in. x 21.65 in.)
Chassis height [U] 1
Weight without packaging [kg(lb)] 6.06 (13.36)
Weight with packaging [kg(lb)] 7.82 (17.24)
Typical power consumption [W] 152
Typical heat dissipation [BTU/hour] 518.64
Maximum power consumption [W] 259
Maximum heat dissipation [BTU/hour] 883.73
Static power consumption [W] 82
MTBF [year] 40.67
MTTR [hour] 2
Availability >0.99999
Noise at normal temperature (acoustic power) [dB(A)] 60.6 (AC power supply)
64.3 (DC power supply)
Noise at normal temperature (acoustic pressure) [dB(A)] 48.4
Number of card slots 0

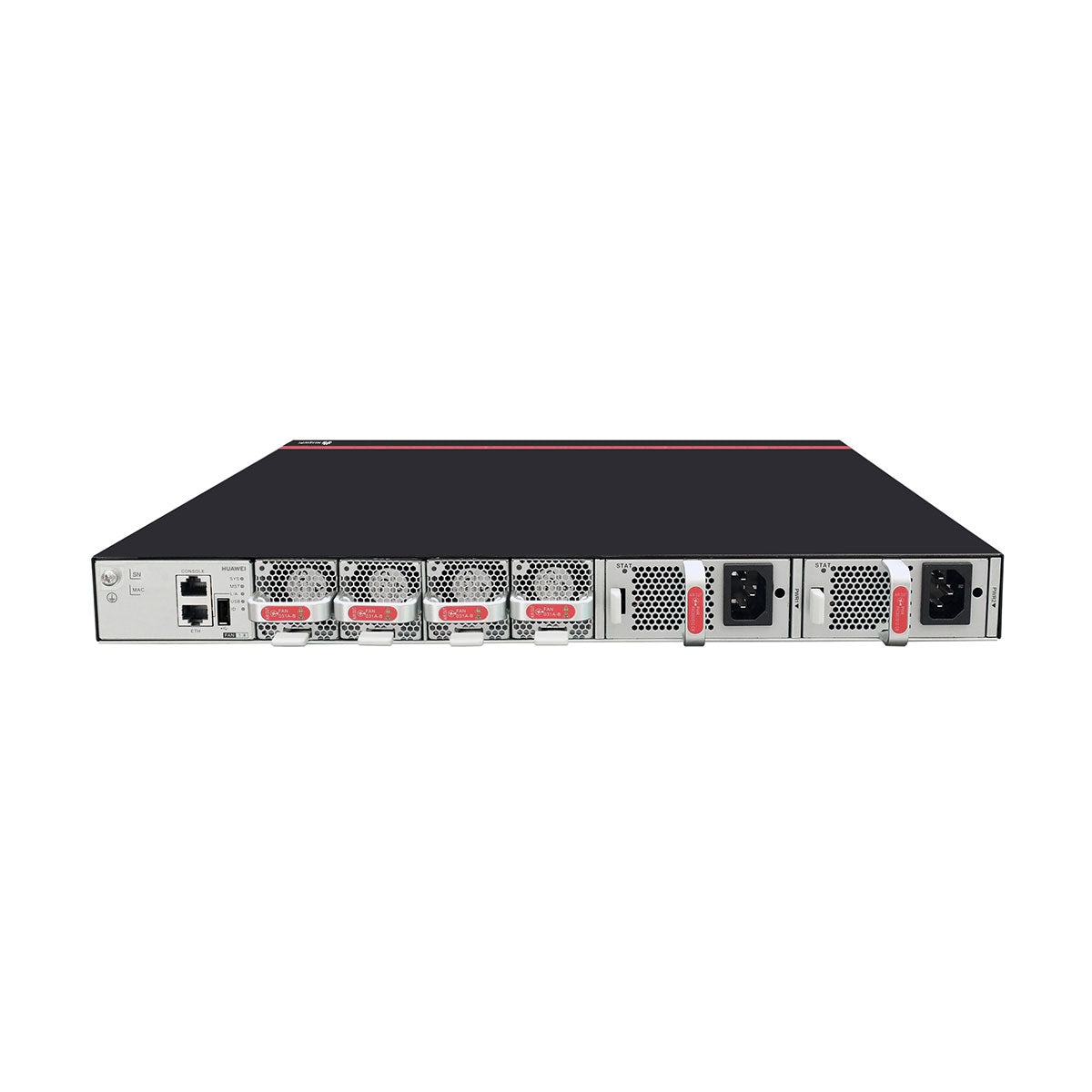

Number of power slots 2
Number of fans modules 4
Redundant power supply 1+1
Pluggable AC and DC power modules can be used together in the same switch.
Long-term operating temperature [°C(°F)] –5°C to +45°C (23°F to 113°F) at an altitude of 0 to 1800 m (0 to 5905.51 ft.)
Storage temperature [°C(°F)] –40°C to +70°C (–40°F to +158°F)
Long-term operating relative humidity [RH] 5% RH to 95% RH (non-condensing)
Long-term operating altitude [m(ft.)] 0–5000 m (0–16404 ft.)
Storage altitude [m(ft.)] 0–5000 m (0–16404 ft.)
Power supply mode Pluggable power supply
Rated input voltage [V] – AC input: 100 V AC to 240 V AC, 50/60 Hz
– High-voltage DC input: 240 V DC
– DC input: –48 V DC to –60 V DC
Input voltage range [V] – AC input: 90 V AC to 290 V AC; 45 Hz to 65 Hz
– High-voltage DC input: 190 V DC to 290 V DC
– DC input: –38.4 V DC to –72 V DC
Memory 4 GB
Flash memory The physical space is 8 GB. You can run the display version command
to view the actual available space.
Console port RJ45
Eth Management port RJ45
USB Supported
RTC Supported
Power supply surge protection [kV] – Configured with AC power modules: ±6 kV in differential mode and ±6 kV in common mode
– Configured with DC power modules: ±2 kV in differential mode and ±4 kV in common mode
Types of fans Pluggable
Heat dissipation mode Air cooling heat dissipation and intelligent speed adjustment
Airflow direction Air intake from front and air exhaust from rear
Certification EMC certification
Safety certification
Manufacturing certification

Huawei S6735-S24X6C switch with 24-port 10GE SFP+, 6-port 100GE QSFP28, with 2 power slots

Memory 4 GB; Flash memory The physical space is 8 GB.

Applicable power module:
PAC600S12-CB (600 W AC&240 V DC Power Module)
PAC600S12-DB (600 W AC&240 V DC Power Module)
PAC600S12-EB (600 W AC&240 V DC Power Module)
PDC1000S12-DB (1000 W DC Power Module)

The S6700 series Ethernet switches are next-generation 10G fixed switches. The S6700 can function as an access switch in an Internet data center (IDC) or a core switch on a campus network. The S6700 has industry-leading performance and provides line-speed 10GE access ports and line-speed 40GE even 100GE uplink ports.



Basic Information
Description S6735-S24X6C (24*10GE SFP+ ports, 6*100GE QSFP28 ports, without power modules)
Part Number 98011880
Model S6735-S24X6C
First supported version V200R021C00SPC600
Technical Specifications
Dimensions without packaging (H x W x D) [mm(in.)] Basic dimensions (excluding the parts protruding from the body):
43.6 mm x 442.0 mm x 420.0 mm
Maximum dimensions (the depth is the distance from ports
on the front panel to the parts protruding from the rear panel):
43.6 mm x 442.0 mm x 446.0 mm
Dimensions with packaging (H x W x D) [mm(in.)] 175 mm x 650 mm x 550 mm (6.89 in. x 25.59 in. x 21.65 in.)
Chassis height [U] 1
Weight without packaging [kg(lb)] 6.06 (13.36)
Weight with packaging [kg(lb)] 7.82 (17.24)
Typical power consumption [W] 152
Typical heat dissipation [BTU/hour] 518.64
Maximum power consumption [W] 259
Maximum heat dissipation [BTU/hour] 883.73
Static power consumption [W] 82
MTBF [year] 40.67
MTTR [hour] 2
Availability >0.99999
Noise at normal temperature (acoustic power) [dB(A)] 60.6 (AC power supply)
64.3 (DC power supply)
Noise at normal temperature (acoustic pressure) [dB(A)] 48.4
Number of card slots 0
Number of power slots 2
Number of fans modules 4
Redundant power supply 1+1
Pluggable AC and DC power modules can be used together in the same switch.
Long-term operating temperature [°C(°F)] –5°C to +45°C (23°F to 113°F) at an altitude of 0 to 1800 m (0 to 5905.51 ft.)
Storage temperature [°C(°F)] –40°C to +70°C (–40°F to +158°F)
Long-term operating relative humidity [RH] 5% RH to 95% RH (non-condensing)
Long-term operating altitude [m(ft.)] 0–5000 m (0–16404 ft.)
Storage altitude [m(ft.)] 0–5000 m (0–16404 ft.)
Power supply mode Pluggable power supply
Rated input voltage [V] – AC input: 100 V AC to 240 V AC, 50/60 Hz
– High-voltage DC input: 240 V DC
– DC input: –48 V DC to –60 V DC
Input voltage range [V] – AC input: 90 V AC to 290 V AC; 45 Hz to 65 Hz
– High-voltage DC input: 190 V DC to 290 V DC
– DC input: –38.4 V DC to –72 V DC
Memory 4 GB
Flash memory The physical space is 8 GB. You can run the display version command
to view the actual available space.
Console port RJ45
Eth Management port RJ45
USB Supported
RTC Supported
Power supply surge protection [kV] – Configured with AC power modules: ±6 kV in differential mode and ±6 kV in common mode
– Configured with DC power modules: ±2 kV in differential mode and ±4 kV in common mode
Types of fans Pluggable
Heat dissipation mode Air cooling heat dissipation and intelligent speed adjustment
Airflow direction Air intake from front and air exhaust from rear
Certification EMC certification
Safety certification
Manufacturing certification
