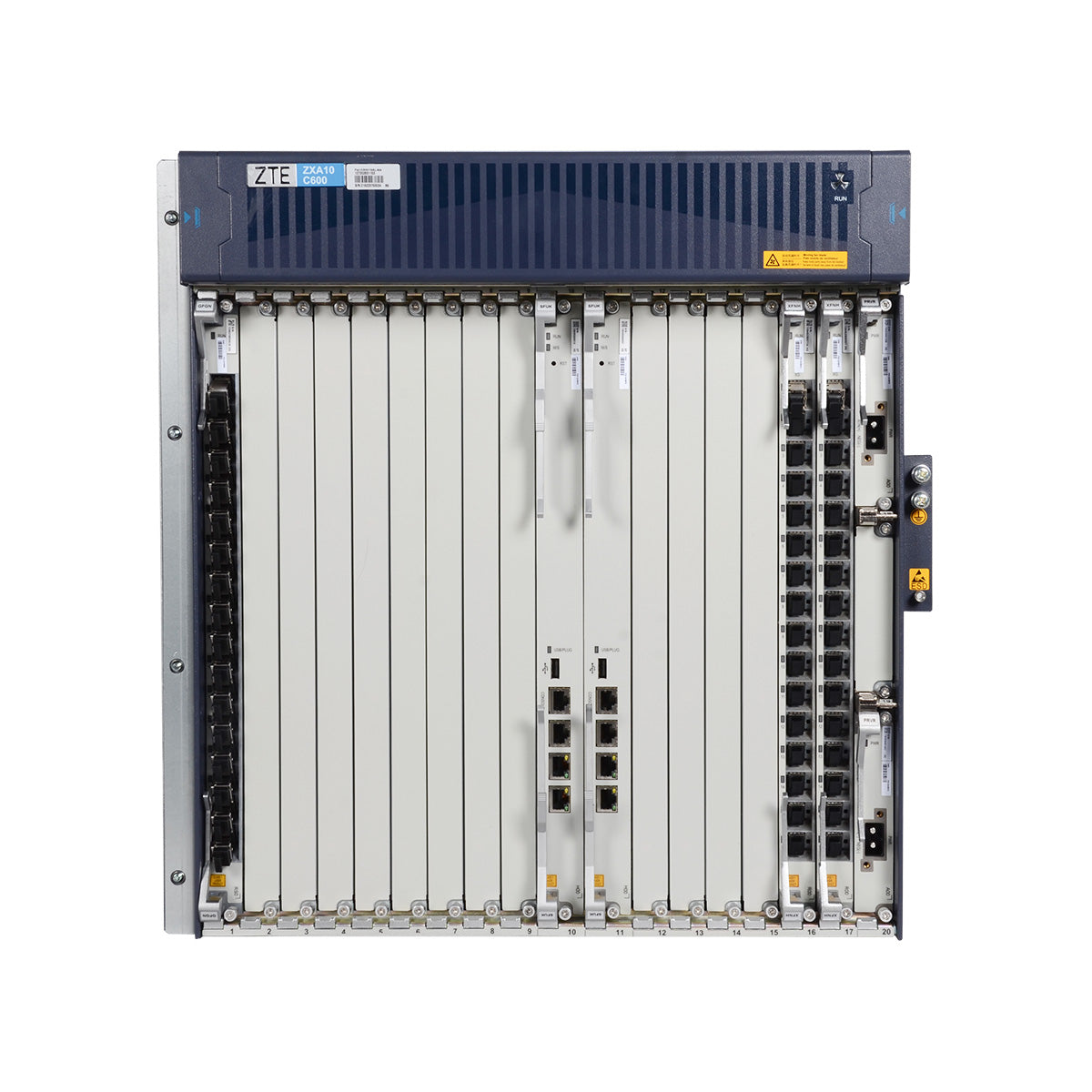

ZXA10 C600 OLT 19inch Chassis

ZTE ZXA10 C600 is a large-capacity optical access equipment based on the TITAN platform. It meets the full-scenario access needs of ultra-high bandwidth, big video, FMC and network re-architecture, and provides the integration of transmission and access, as well as carrier-class QoS and security.

ZXA10 C600 has two different chassis dimension: ETSI 21–inch shelf and  IEC 19–inch shelf. 19-inch shelf supports 21 slots while 21-inche shelf supports 23 slots.

 ZXA10 C600 supports 14T switching capacity of backplane bus, 3.6T switching and control card and 7.2T system switching capacity. The ZXA10 C600 features the following:

• Large capacity and high bandwidth: Provides 17/15 service slots for plugging user-side subscriber cards and network-side line cards, and supports large capacity symmetric upstream and downstream cache to absorb burst downstream video traffic and to address the burst traffic of upstream video programs such as enterprise’s unified communication and personal live streaming.

• Separated control and forwarding: Provides redundant control & switch card on the control plane, and supports dual matrix load balancing on the forwarding plane.

• Card compatibility: The main service cards are compatible with the ZXA10 C650, thereby saving the spare parts cost.

• High port density: Supports 16-port GPON cards, 16-port XGS-PON/XG-PON/Combo PON cards, 16-port 10GE P2P cards and 48-port GE/FE P2P cards.

• A unified platform that supports multiple access technologies including GPON, XG-PON, XGS-PON, Combo PON, 10GE/GE P2P, as well as smooth migration to 50G-PON.

• L2 and L3 capabilities: Provides L2 switch, VLAN service, L3 routing protocol and service processing capabilities, supports flexible configurations and suits multiple application scenarios.

• Multiservice access: Supports multiple services including VoIP, HSI, IPTV, VPN, and mobile backhaul.

• Enriched OAM methods: Supports CFM functions defined in IEEE 802.1ag.

• Complete service and equipment protection: Supports ITU-T Type B/ Type C PON protection, Ethernet and IP service protection, and redundant protection of the switch & control cards, power cards, fans, and uplink interfaces.

• Comprehensive security features: Provides enriched equipment security, system security, network security and service security features.


• The ZXA10 C600 is a large capacity optical access platform.

• The ZXA10 C650 is a medium capacity optical access platform.

• The ZXA10 C620 is a small capacity optical access platform.


C600 Series Card Supported

 Comparison of ZXA10 C600 series Models

 PON Optical Module

 Uplink GE/10G Optical/Electrical Module
