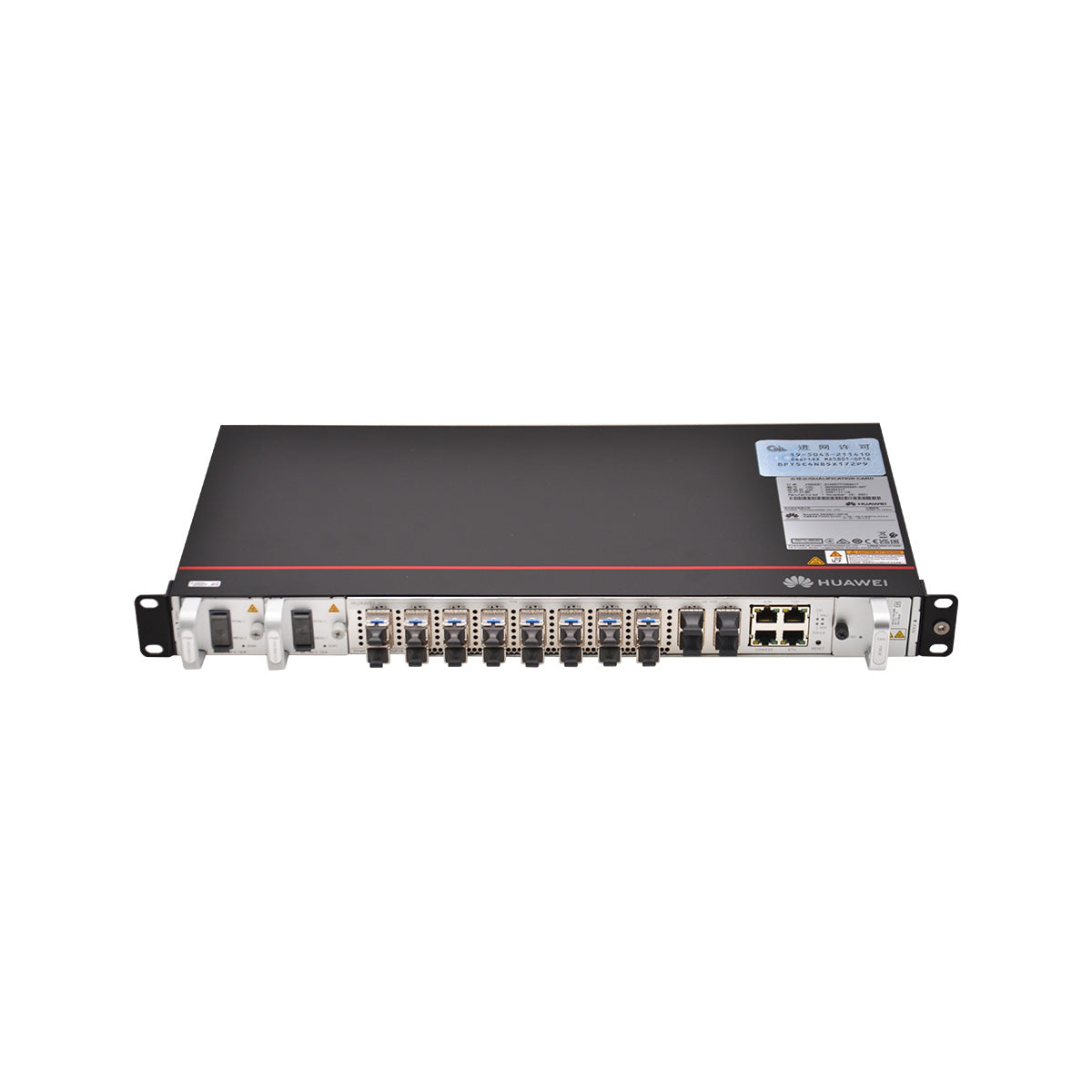

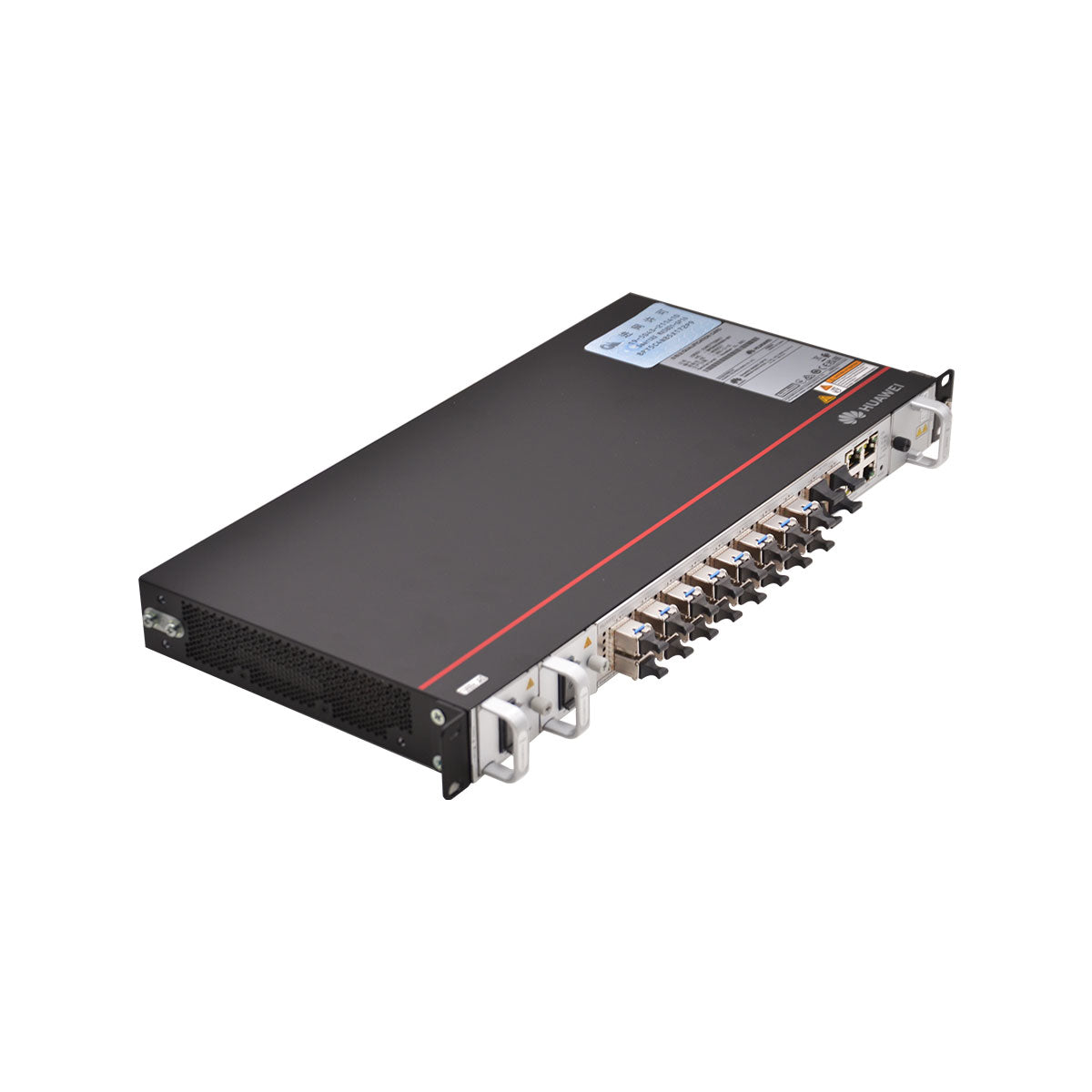

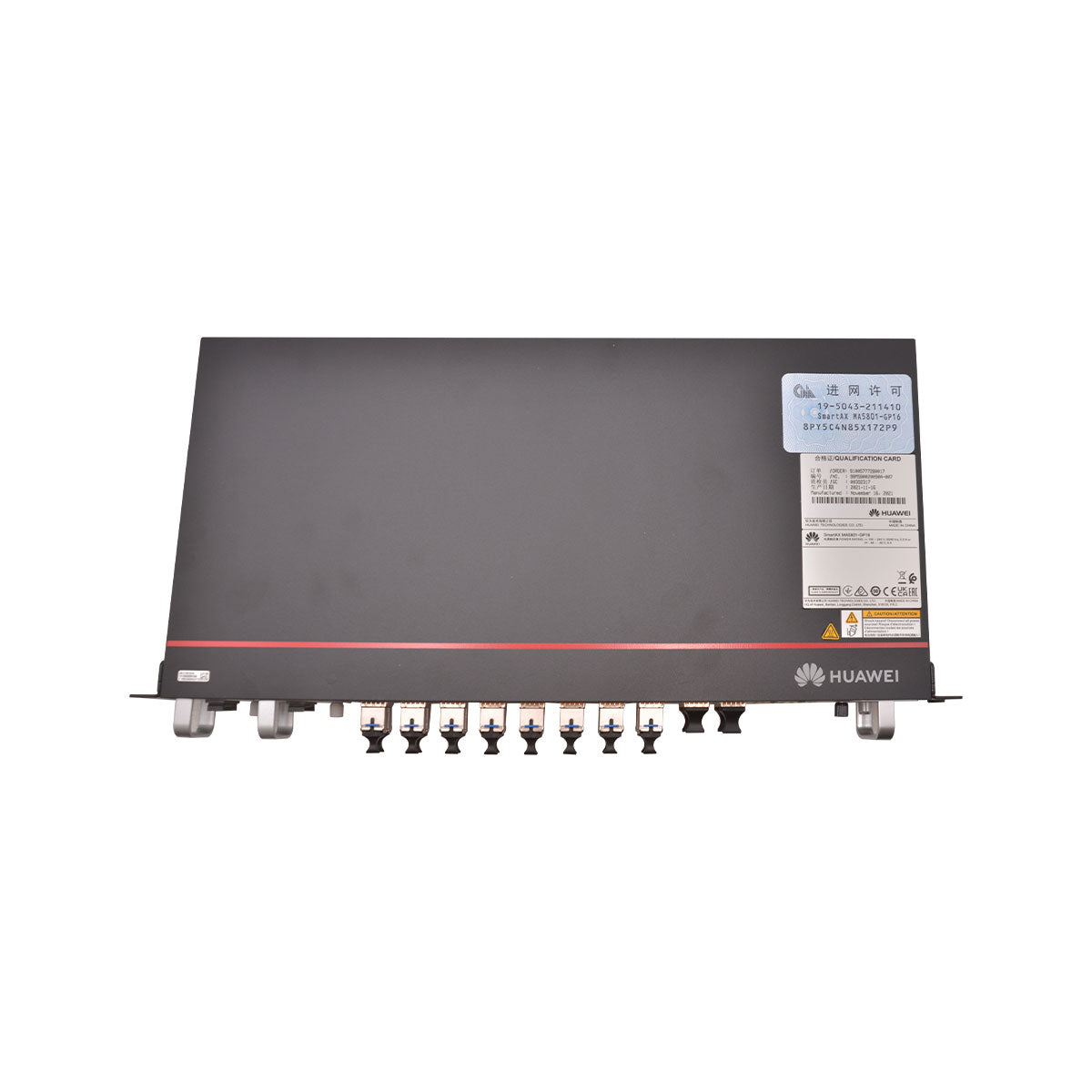

Huawei MA5801-GP16-H2 OLT 19inch Chassis
Review: 5 - "A masterpiece of literature" by , written on May 4, 2006
I really enjoyed this book. It captures the essential challenge people face as they try make sense of their lives and grow to adulthood.

Huawei MA5801-GP16-H2 OLT 19inch Chassis

  • Brand New Condition
  • Latest Manufacture Year
  • Power Cable Included
  • Blank Panel Included
Available:In Stock
$0.00

MA5801-GP16-H2 GPON OLT with 16 x GPON port, 4 x GE/10GE upstream ports, AC/DC power supply

The MA5801-GP16-H2 is a compact box-shaped OLT. It provides multiple fiber to the home Huawei FTTH solution to meet the requirements of economical and efficient network construction. It can be flexibly deployed in fast fixed mobile convergence (FMC) scenario, national broadband coverage scenario, and enterprise's all-optical campus scenario.

System switching capacity: 140 Gbit/s

MAC addresses: 32768

Access ONT: 1024

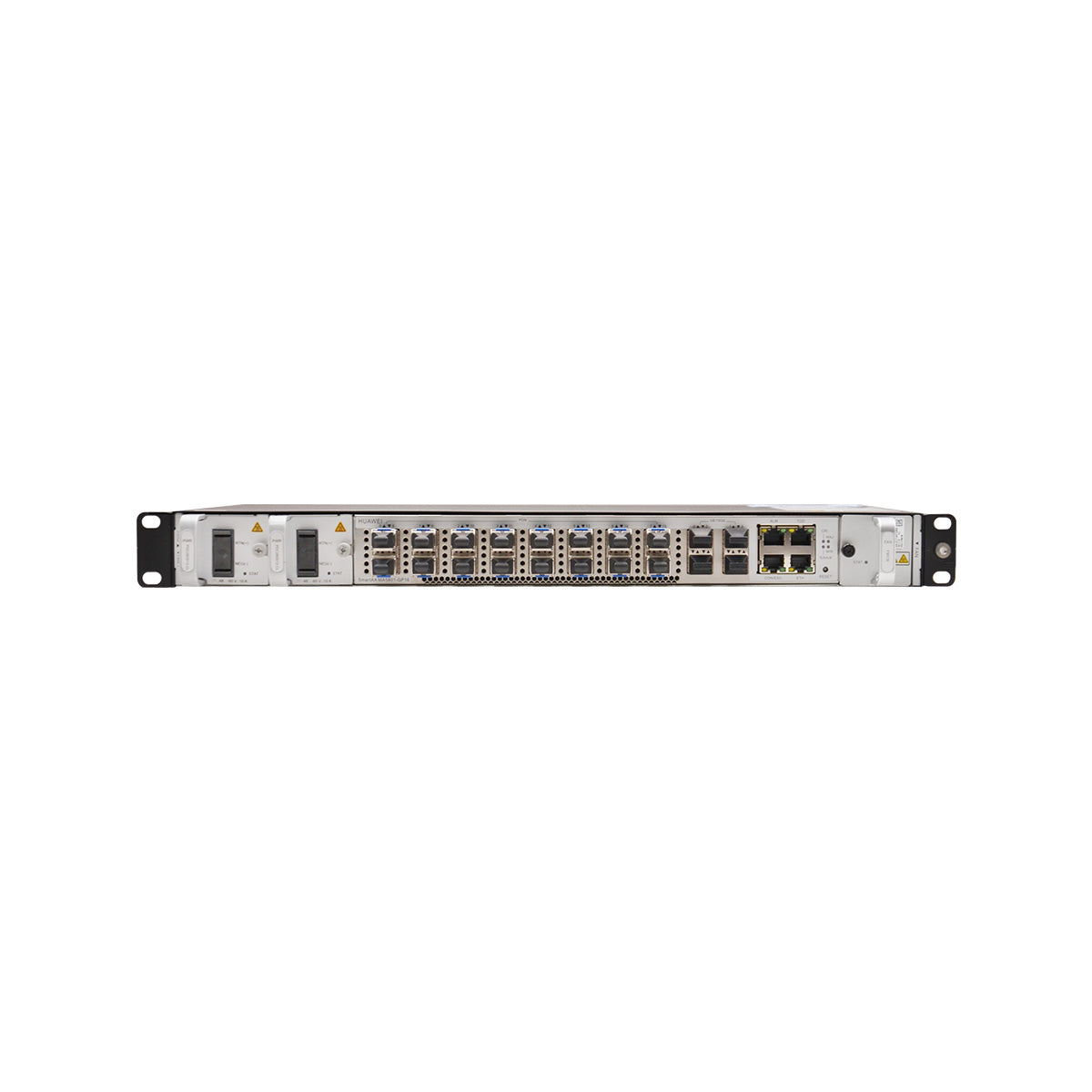

MA5801-GP16-H2 Structure

NOTE: The product provides 2 slots for power boards so that 1 or 2 power modules can be configured as required. If only one power module is configured, a filler panel must be installed in the other slot. AC and DC are incompatible.

Product Highlights

  • The lightweight OLT occupies 1 U installation space. It can be flexibly adapted to various scenarios.
  • Supports 16 GPON service ports and works with GPON optical modules to implement GPON access.
  • Supports dual AC or DC power supplies, providing flexible power supply and high reliability.
  • The matching F01M50 mini outdoor cabinet can be installed on a pole, tower, or wall, facilitating installation and reducing engineering costs.
Item Value
Dimensions (W x D x H) (mm) Excluding mounting ears: 442 x 220 x 43.6
Including IEC mounting ears: 482.6 x 220 x 43.6
Including ETSI mounting ears: 531 x 220 x 43.6
Max fully-loaded weight 5 kg
Power supply mode DC power supply (dual backup)
AC power supply (dual backup)
Working voltage range DC power supply: –38.4 V to –72 V
AC power supply: 100–240 V
Rated voltage DC power supply: –48 V/–60 V
AC power supply: 110 V/220 V
Maximum input current DC power supply: 6 A
AC power supply: 2.5 A
Ambient temperature –40°C to +65°C
The device can start up at a lowest temperature of –25°C.
Ambient humidity 5%–95% RH
Atmospheric pressure 70–106 kPa
Altitude < 4000 m.
System switching capacity 140 Gbit/s
MAC addresses 32768
Access ONT 1024
IPv4 routing table 8192
IPv6 routing table 4096
ARP table 16384
Bit error rate (BER) in full load A BER smaller than 10 e-10 for a port that transmits data in full load
Upstream ports 4 GE/10GE
Service ports 16 GPON
System reliability specifications System availability for the typical configuration: > 99.999%
Mean time between failures (MTBF): about 62 years
Power consumption DC power supply:
Static power consumption: 52W
Typical power consumption: 91W
Maximum power consumption: 135W
AC power supply:
Static power consumption: 55W
Typical power consumption: 95W
Maximum power consumption: 140W

    MA5801-GP16-H2 GPON OLT with 16 x GPON port, 4 x GE/10GE upstream ports, AC/DC power supply

    The MA5801-GP16-H2 is a compact box-shaped OLT. It provides multiple fiber to the home Huawei FTTH solution to meet the requirements of economical and efficient network construction. It can be flexibly deployed in fast fixed mobile convergence (FMC) scenario, national broadband coverage scenario, and enterprise's all-optical campus scenario.

    System switching capacity: 140 Gbit/s

    MAC addresses: 32768

    Access ONT: 1024

    MA5801-GP16-H2 Structure

    NOTE: The product provides 2 slots for power boards so that 1 or 2 power modules can be configured as required. If only one power module is configured, a filler panel must be installed in the other slot. AC and DC are incompatible.

    Product Highlights

    • The lightweight OLT occupies 1 U installation space. It can be flexibly adapted to various scenarios.
    • Supports 16 GPON service ports and works with GPON optical modules to implement GPON access.
    • Supports dual AC or DC power supplies, providing flexible power supply and high reliability.
    • The matching F01M50 mini outdoor cabinet can be installed on a pole, tower, or wall, facilitating installation and reducing engineering costs.
    Item Value
    Dimensions (W x D x H) (mm) Excluding mounting ears: 442 x 220 x 43.6
    Including IEC mounting ears: 482.6 x 220 x 43.6
    Including ETSI mounting ears: 531 x 220 x 43.6
    Max fully-loaded weight 5 kg
    Power supply mode DC power supply (dual backup)
    AC power supply (dual backup)
    Working voltage range DC power supply: –38.4 V to –72 V
    AC power supply: 100–240 V
    Rated voltage DC power supply: –48 V/–60 V
    AC power supply: 110 V/220 V
    Maximum input current DC power supply: 6 A
    AC power supply: 2.5 A
    Ambient temperature –40°C to +65°C
    The device can start up at a lowest temperature of –25°C.
    Ambient humidity 5%–95% RH
    Atmospheric pressure 70–106 kPa
    Altitude < 4000 m.
    System switching capacity 140 Gbit/s
    MAC addresses 32768
    Access ONT 1024
    IPv4 routing table 8192
    IPv6 routing table 4096
    ARP table 16384
    Bit error rate (BER) in full load A BER smaller than 10 e-10 for a port that transmits data in full load
    Upstream ports 4 GE/10GE
    Service ports 16 GPON
    System reliability specifications System availability for the typical configuration: > 99.999%
    Mean time between failures (MTBF): about 62 years
    Power consumption DC power supply:
    Static power consumption: 52W
    Typical power consumption: 91W
    Maximum power consumption: 135W
    AC power supply:
    Static power consumption: 55W
    Typical power consumption: 95W
    Maximum power consumption: 140W
