Huawei NE8000 M8 Router
- Full Set of Accessories
- Firmware & Software Testing
- License Available
- Category:Huawei,NE8000 Series,Router

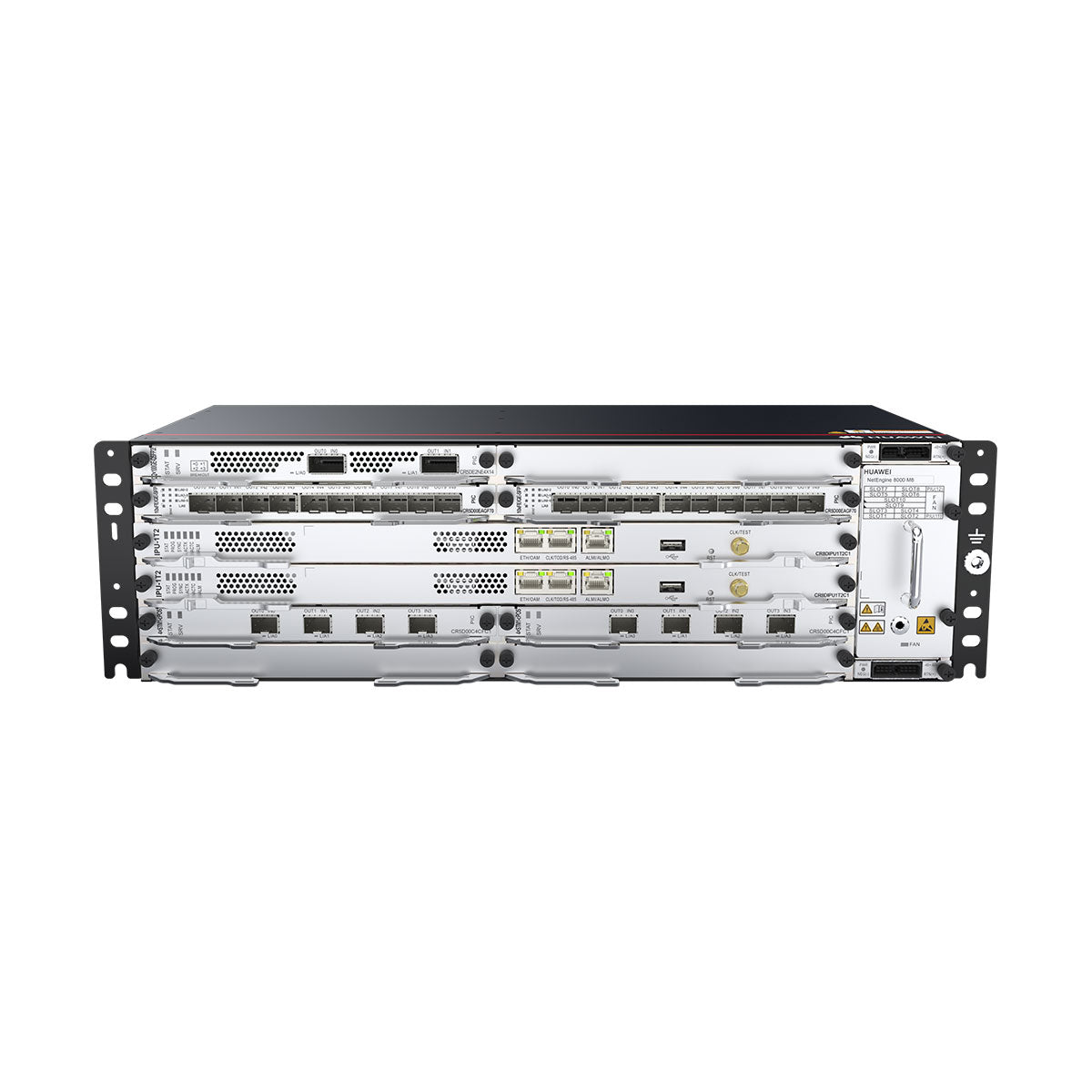

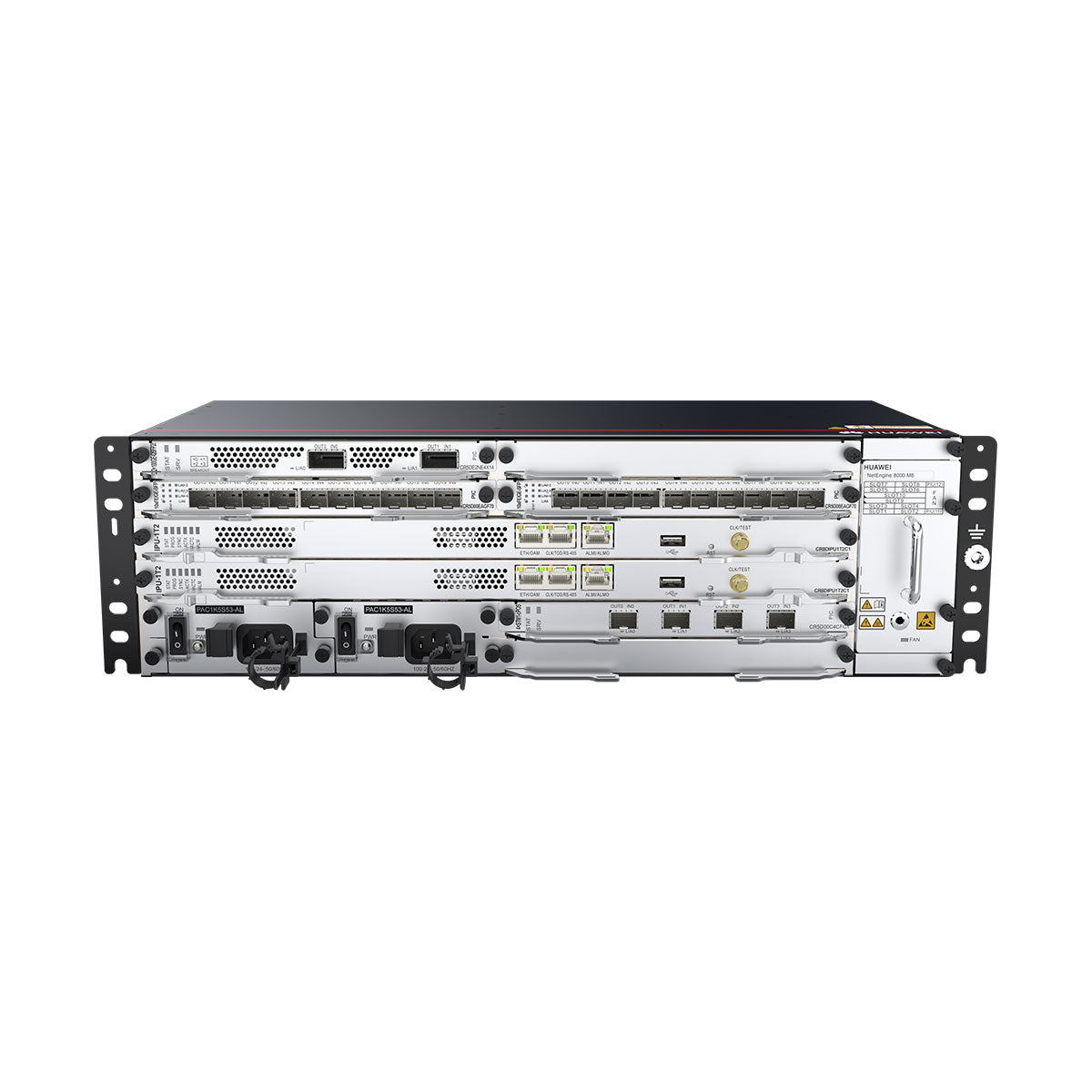

Huawei NetEngine 8000 M8 Router Subrack including Dual AC/DC Power Options
2.4 Tbit/s Switching Capacity
453 Mpps Forwarding Performance
200 Gbit/s Maximum Board Capability
400 Capacity Density (G/U)
Huawei NetEngine 8000 M8 Router supports super large routing tables and provides Routing Information Protocol (RIP), Open Shortest Path First (OSPF), Intermediate System-to-Intermediate System (IS-IS), Border Gateway Protocol 4 (BGP-4), and multicast routing protocols. It also supports simple and ciphertext authentication, as well as fast route convergence. These features ensure network stability and security in complicated routing environments.
IP, MPLS, and SRv6 networking can be deployed depending on networking requirements, L2VPN, L3VPN, MVPN, and EVPN services are supported, and functions such as traffic engineering (TE), selective 802.1Q-in-802.1Q (QinQ), and Generic Routing Encapsulation (GRE) can be deployed.
Basic information about the NetEngine 8000 M8
| Description | Part Number | Model | First supported version |
| NetEngine 8000 M8 Integrated DC Chassis Components (Including 2*DC Power,Fan Box) | 02353ANP | CR8BM8BKPDC1 | V800R011C10 |
| NetEngine 8000 M8 Integrated AC Chassis Components (Including 2*AC Power,Fan Box) | 02353EWU | CR8BM8BKPAC1 | V800R012C00 |
| NetEngine 8000 M8-S Integrated DC Chassis Components (Including 2*DC Power,Fan Box) | 02356CDA | CR8BM8BKPDC1 | V800R023C10SPC500 |
| NetEngine 8000 M8-S Integrated AC Chassis Components (Including 2*AC Power,Fan Box) | 02356CDX | CR8BM8BKPAC1 | V800R023C10SPC500 |

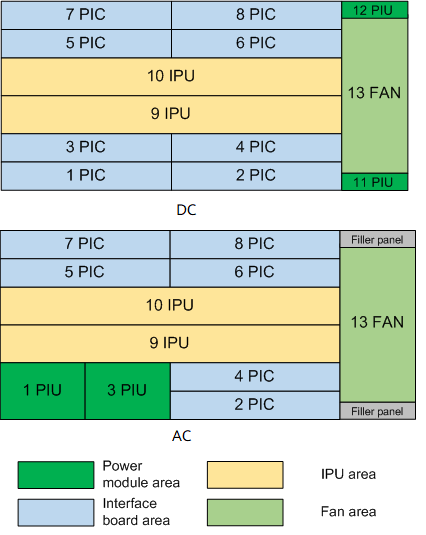

Slot Layout of the NetEngine 8000 M8
| Product Model | NetEngine 8000 M14 | NetEngine 8000 M8 | NetEngine 8000 M6 | NetEngine 8000 M4 |
| Switching Capacity | 4 Tbit/s | 2.4 Tbit/s | 320 Gbit/s | 2.4 Tbps |
| Forwarding Performance | 906 Mpps | 453 Mpps | 72 Mpps | 455 Mpps |
| Maximum Board Capability | 200 Gbit/s | 200 Gbit/s | 50 Gbit/s | 200 Gbps |
| Capacity Density (G/U) | 400 | 400 | 80 | 800 |
| Main Control Board | 2, 1:1 | 2, 1:1 | 2, 1:1 | Single |
| SFU | 2, 1:1 | 2, 1:1 | 2, 1:1 | 2，1+1 |
| (integrated) | (integrated) | (integrated) | (integrated) | |
| Line Card | 14(DC) | 8(DC) | 6(DC) | 4 |
| 10(AC) | 8(AC) | 4(AC) | ||
| Power Module | 2, 1 + 1 (DC) | 2, 1 + 1 | 2, 1 + 1 | 2, 1 + 1 |
| 4, 2 + 2 (AC) | ||||
| Fan Module | 4, 3 + 1 | 2, 1 + 1 | 2, 1 + 1 | 2，1+1 |
| Dimensions (H x W x D) | 222 (5U) x 442 x 220mm | 132.6 (3U) x 442 x 220mm | 88.9 (2U) x 442 x 220mm | 88.4mm (2U) x 442mm x 220mm |
| Typical Power Consumption | 1270 W | 485 W | 220 W | 305.1 W |
| Weight in Full Configuration | 27.4 kg | 16.5 kg | 3.52 kg | 7.2 kg (15.87 lb) |
Huawei NetEngine 8000 M8 Router Subrack including Dual AC/DC Power Options
2.4 Tbit/s Switching Capacity
453 Mpps Forwarding Performance
200 Gbit/s Maximum Board Capability
400 Capacity Density (G/U)
Huawei NetEngine 8000 M8 Router supports super large routing tables and provides Routing Information Protocol (RIP), Open Shortest Path First (OSPF), Intermediate System-to-Intermediate System (IS-IS), Border Gateway Protocol 4 (BGP-4), and multicast routing protocols. It also supports simple and ciphertext authentication, as well as fast route convergence. These features ensure network stability and security in complicated routing environments.
IP, MPLS, and SRv6 networking can be deployed depending on networking requirements, L2VPN, L3VPN, MVPN, and EVPN services are supported, and functions such as traffic engineering (TE), selective 802.1Q-in-802.1Q (QinQ), and Generic Routing Encapsulation (GRE) can be deployed.
Basic information about the NetEngine 8000 M8
| Description | Part Number | Model | First supported version |
| NetEngine 8000 M8 Integrated DC Chassis Components (Including 2*DC Power,Fan Box) | 02353ANP | CR8BM8BKPDC1 | V800R011C10 |
| NetEngine 8000 M8 Integrated AC Chassis Components (Including 2*AC Power,Fan Box) | 02353EWU | CR8BM8BKPAC1 | V800R012C00 |
| NetEngine 8000 M8-S Integrated DC Chassis Components (Including 2*DC Power,Fan Box) | 02356CDA | CR8BM8BKPDC1 | V800R023C10SPC500 |
| NetEngine 8000 M8-S Integrated AC Chassis Components (Including 2*AC Power,Fan Box) | 02356CDX | CR8BM8BKPAC1 | V800R023C10SPC500 |
Slot Layout of the NetEngine 8000 M8
Huawei NE8000 M Series M14/M8/M6/M4 Specification
| Product Model | NetEngine 8000 M14 | NetEngine 8000 M8 | NetEngine 8000 M6 | NetEngine 8000 M4 |
| Switching Capacity | 4 Tbit/s | 2.4 Tbit/s | 320 Gbit/s | 2.4 Tbps |
| Forwarding Performance | 906 Mpps | 453 Mpps | 72 Mpps | 455 Mpps |
| Maximum Board Capability | 200 Gbit/s | 200 Gbit/s | 50 Gbit/s | 200 Gbps |
| Capacity Density (G/U) | 400 | 400 | 80 | 800 |
| Main Control Board | 2, 1:1 | 2, 1:1 | 2, 1:1 | Single |
| SFU | 2, 1:1 | 2, 1:1 | 2, 1:1 | 2，1+1 |
| (integrated) | (integrated) | (integrated) | (integrated) | |
| Line Card | 14(DC) | 8(DC) | 6(DC) | 4 |
| 10(AC) | 8(AC) | 4(AC) | ||
| Power Module | 2, 1 + 1 (DC) | 2, 1 + 1 | 2, 1 + 1 | 2, 1 + 1 |
| 4, 2 + 2 (AC) | ||||
| Fan Module | 4, 3 + 1 | 2, 1 + 1 | 2, 1 + 1 | 2，1+1 |
| Dimensions (H x W x D) | 222 (5U) x 442 x 220mm | 132.6 (3U) x 442 x 220mm | 88.9 (2U) x 442 x 220mm | 88.4mm (2U) x 442mm x 220mm |
| Typical Power Consumption | 1270 W | 485 W | 220 W | 305.1 W |
| Weight in Full Configuration | 27.4 kg | 16.5 kg | 3.52 kg | 7.2 kg (15.87 lb) |
