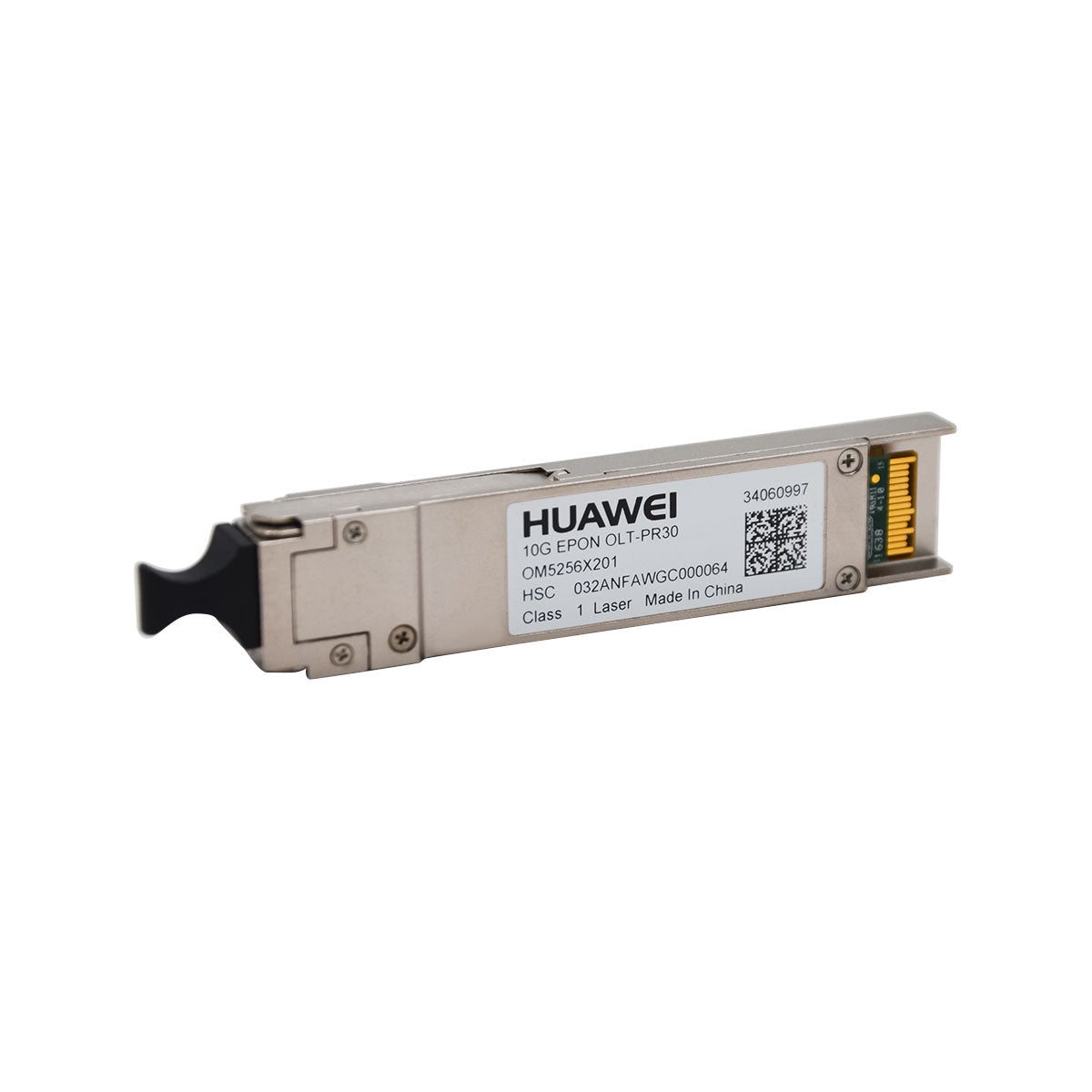

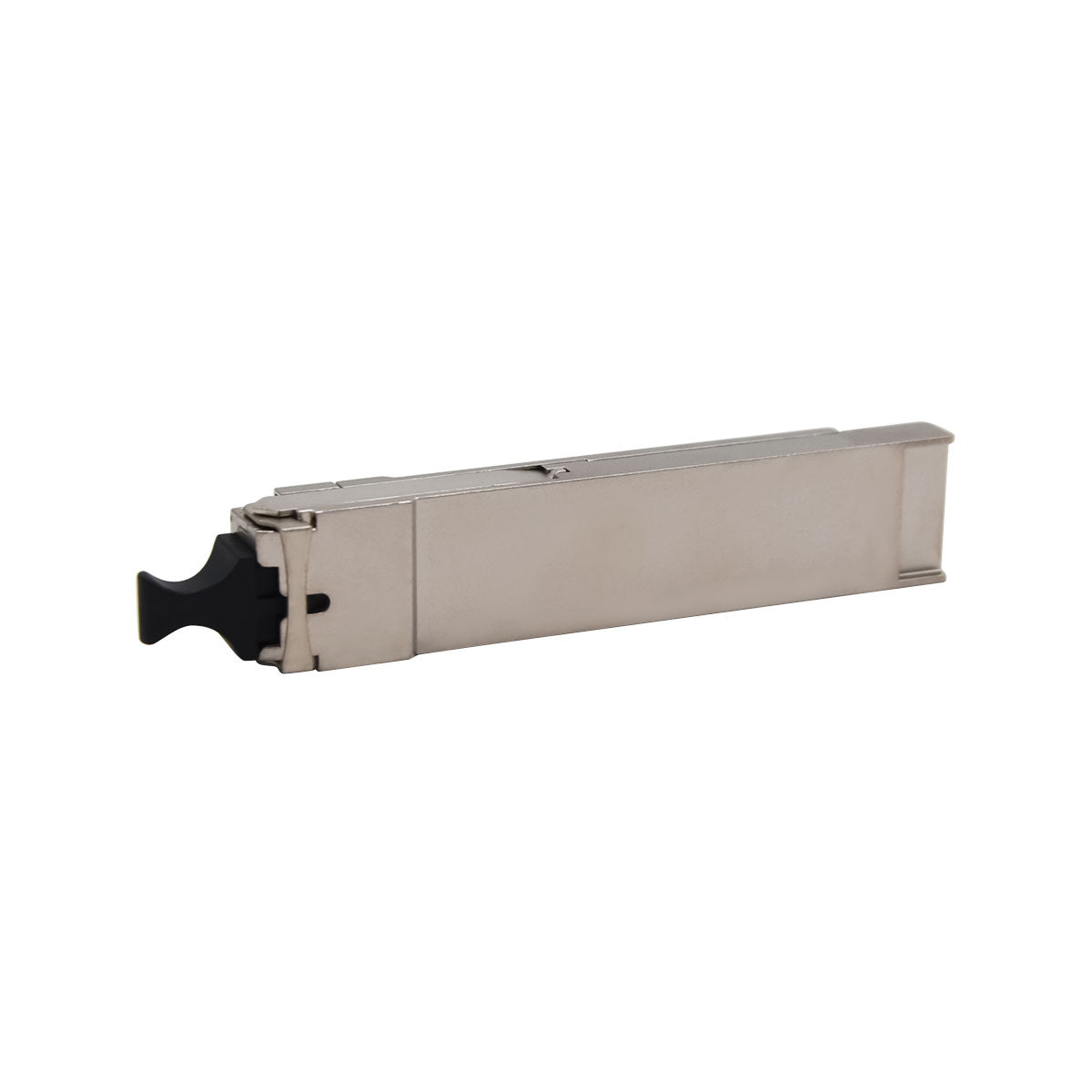

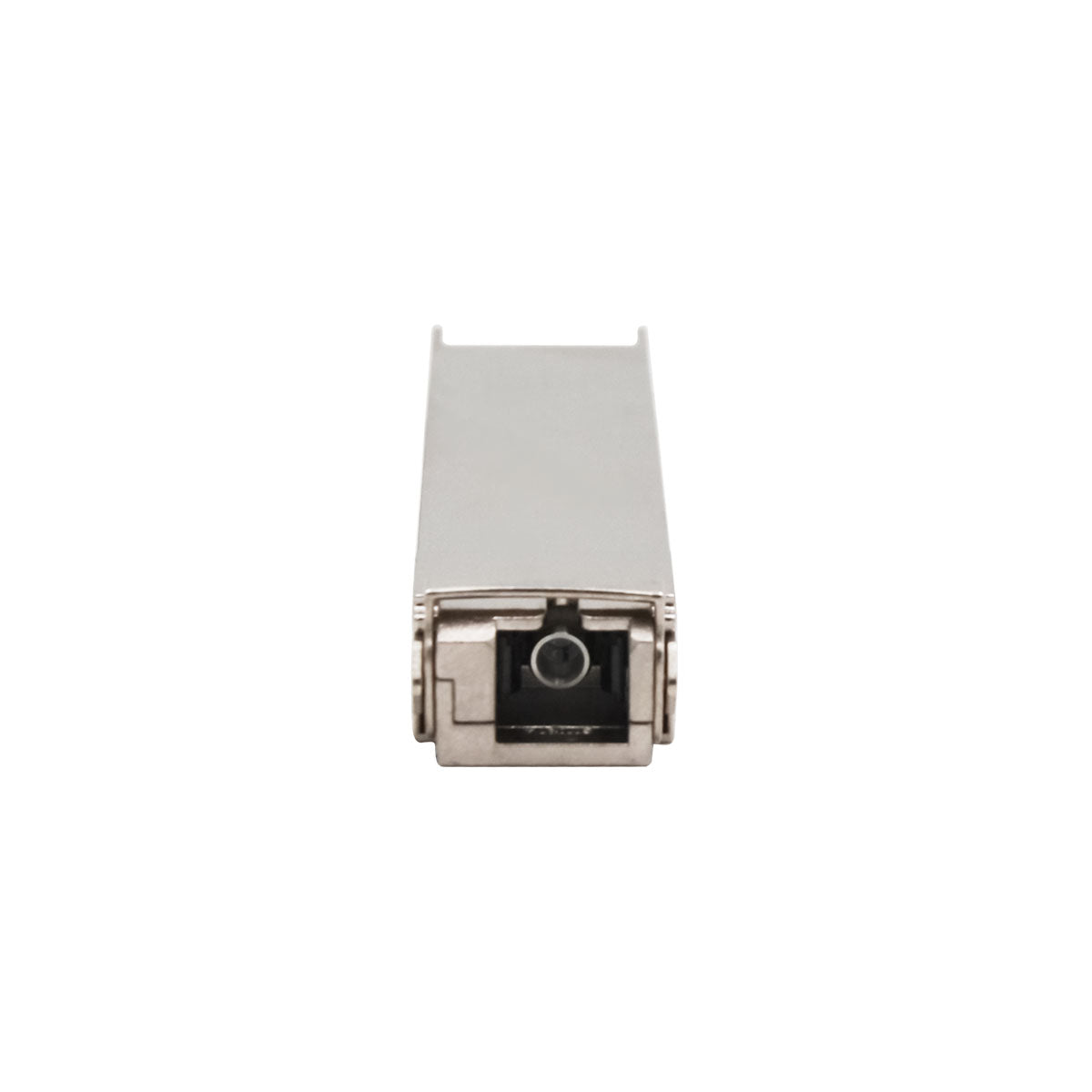

Huawei Original OM5256X201, HSC, 10G EPON OLT-PR30 XFP for Huawei 10G EPON board, 34060997
Review: 5 - "A masterpiece of literature" by , written on May 4, 2006
I really enjoyed this book. It captures the essential challenge people face as they try make sense of their lives and grow to adulthood.

Huawei Original OM5256X201, HSC, 10G EPON OLT-PR30 XFP for Huawei 10G EPON board, 34060997

  • Plastic Wholesale Packed
  • TX Power Test
  • Dust Cap Included
  • Manufacturer: HSC
Available:In Stock
$0.00

Rate mode: Symmetric

Encapsulation Type: XFP

For Huawei OLT MA5600T and MA5800 10G EPON board such as XEBD and XEHD



10G EPON Transceiver Information
Type One-fiber bi-directional optical module,PR30
Operating Wavelength 10G Channel
  • Tx:1577nm
  • Rx:1270nm
1G Channel
  • Tx:1490nm
  • Rx:1310nm
Encapsulation Type XFP
Port Rate 10G Channel
  • Tx:10.3125Gbit/s
  • Rx:10.3125Gbit/s
1G Channel
  • Tx:1.25Gbit/s
  • Rx:1.25Gbit/s
Minimum Output Optical Power 10G: 2dBm
GE:3dBm
Maximum Output Optical Power 10G: 5dBm
GE: 7dBm
Maximum Receiver Sensitivity 10G: -28dBm
GE: -29.78dBm
Optical Connector Type SC
Optical Fiber Type Single-mode
Overload Optical Power 10G: -6dBm
GE: -9dBm
Extinction Ratio 10G: 6dB
GE: 9dB

Rate mode: Symmetric

Encapsulation Type: XFP

For Huawei OLT MA5600T and MA5800 10G EPON board such as XEBD and XEHD



10G EPON Transceiver Information
Type One-fiber bi-directional optical module,PR30
Operating Wavelength 10G Channel
  • Tx:1577nm
  • Rx:1270nm
1G Channel
  • Tx:1490nm
  • Rx:1310nm
Encapsulation Type XFP
Port Rate 10G Channel
  • Tx:10.3125Gbit/s
  • Rx:10.3125Gbit/s
1G Channel
  • Tx:1.25Gbit/s
  • Rx:1.25Gbit/s
Minimum Output Optical Power 10G: 2dBm
GE:3dBm
Maximum Output Optical Power 10G: 5dBm
GE: 7dBm
Maximum Receiver Sensitivity 10G: -28dBm
GE: -29.78dBm
Optical Connector Type SC
Optical Fiber Type Single-mode
Overload Optical Power 10G: -6dBm
GE: -9dBm
Extinction Ratio 10G: 6dB
GE: 9dB
