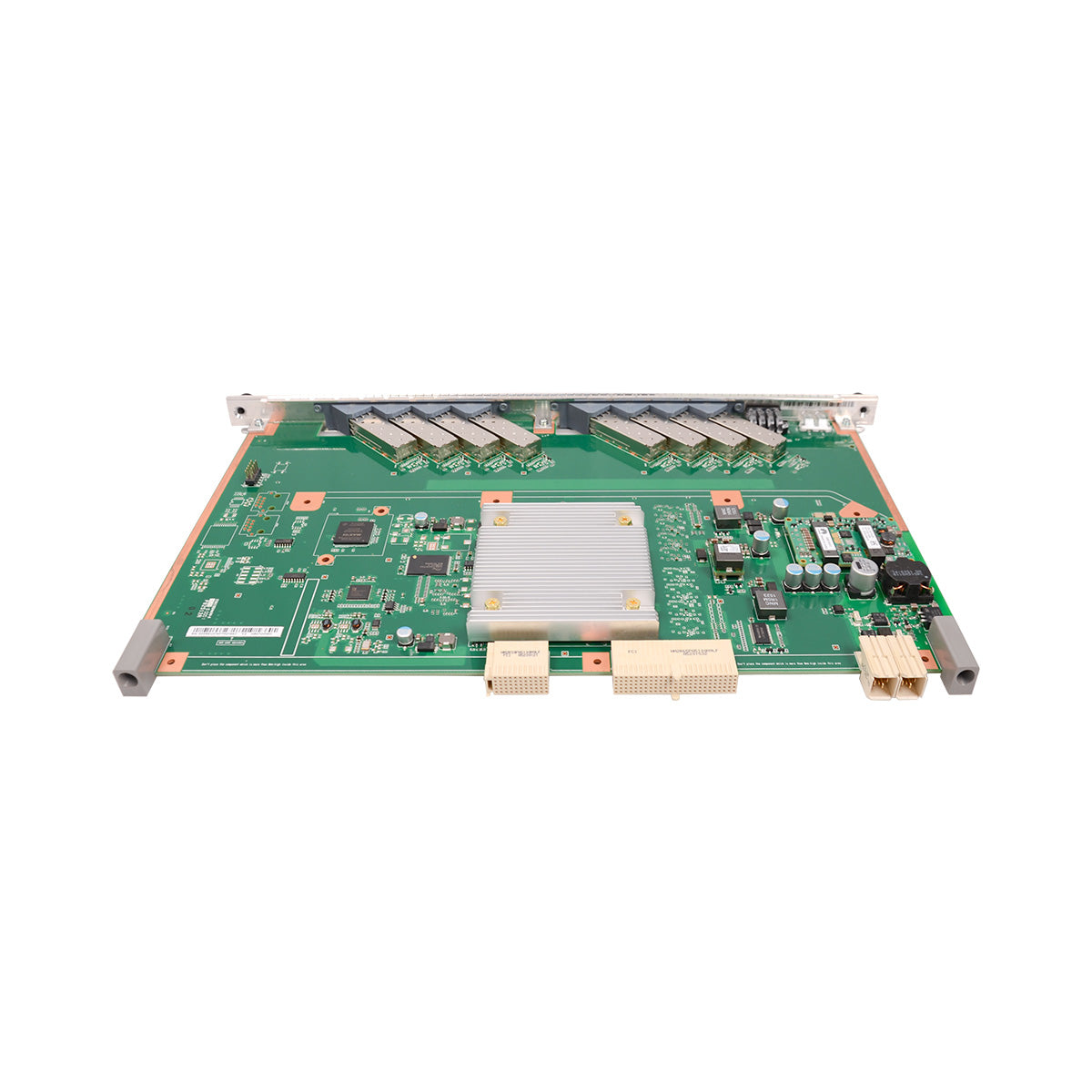

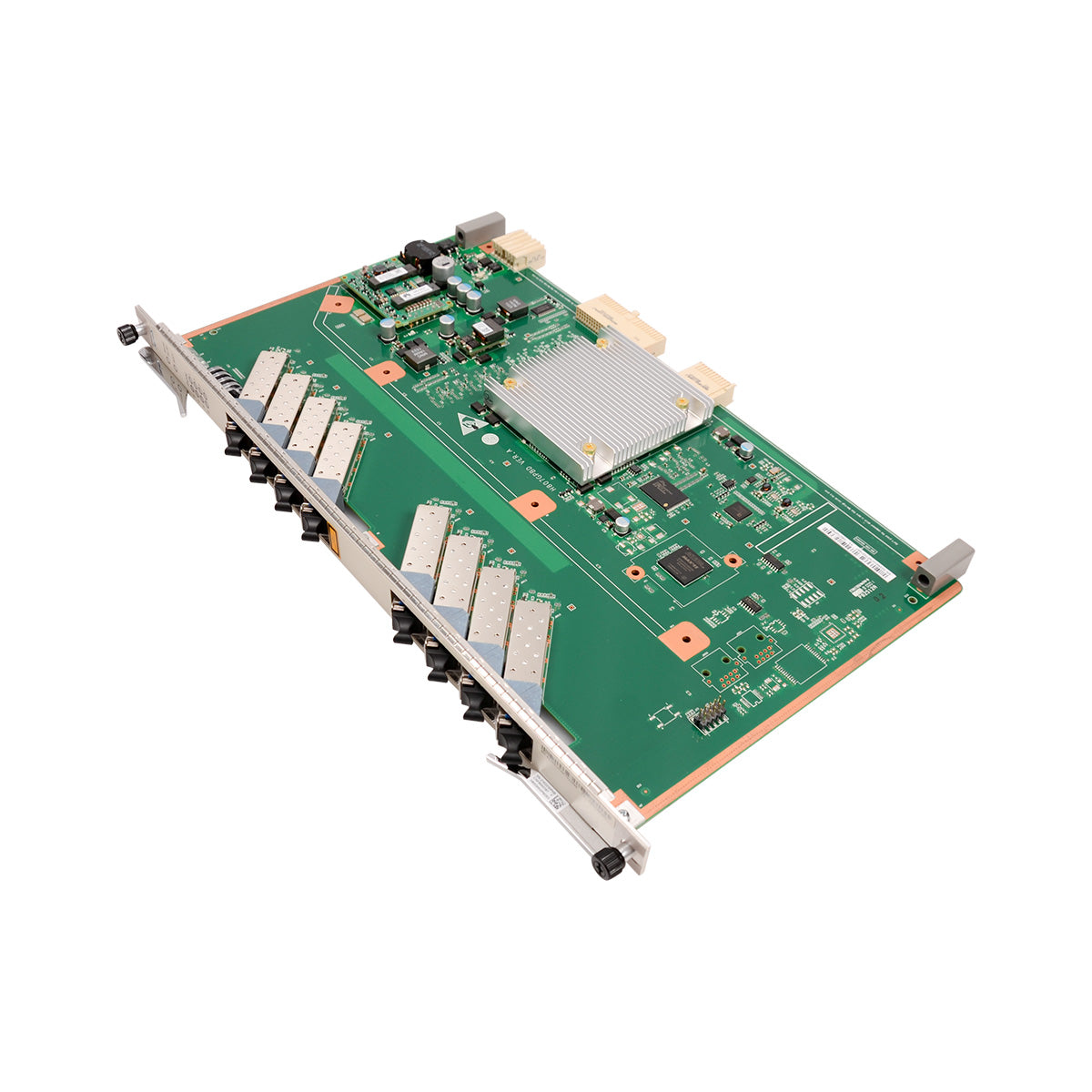

Huawei H807GPBD 8-port GPON Board for MA5600T series OLT

  • Unified 16*PON Module
  • Original Package
  • Board and Modules Tested
  • Support 9216 bytes (jumbo frame enabled)
Available:In Stock
$0.00

The H807GPBD board is a 8-port GPON OLT interface board for Huawei SmartAX MA5600T series OLT including the MA5608T, MA5683T and MA5680T. It works together with the ONU to provide the GPON access service.

8 GPON ports (SFP)

Max. split radio:
Class B+: 1: 64
Class C+/C++: 1: 128

Port rate:
Upstream: 1.244 Gbit/s
Downstream: 2.488 Gbit/s

Power budget per GPON port:
Class B+ (28 dB, most common),
Class C+ (32 dB, long reach transmission)
Class C++: 35 dB

MAC address table size: 8192

Service flows per PON board: 8184

Available DBA bandwidth: 1238784 kbit/s


Specification
Service ports
GPON Port 8-GPON Port
GPON SFP Module Specification
Type C+ Module : One-fiber bi-directional optical module, class C+
Operating Wavelength Tx: 1490 nm, Rx: 1310 nm
Encapsulation Type SFP
Port Rate Tx: 2.49 Gbit/s, Rx: 1.24 Gbit/s
Minimun Output Optical Power C+ Module : 3.00 dBm
Maximum Output Optical Power C+ Module : 7.00 dBm
Maximum Receiver Sensitivity C+ Module : -32.00 dBm
Optical Connector Type SC/PC
Optical Fiber Type Single-mode
Reach 20.00 km
Overload Optical Power C+ Module : -12.0 dBm
Extinction Ratio 8.2 dB
Device Specifications
Dimensions (W x D x H) 22.86 mm x 237.00 mm x 395.40 mm
Power Consumption and Maximum Frame Size
Power Consumption H802GPBD : Static: 45 W, Maximum: 51 W
H805GPBD : Static: 43 W, Maximum: 49 W
Maximum Frame Size For V800R011C00 and earlier versions: 2000 bytes
For V800R012C00 and later versions: 2004 bytes
Operating temperature -25°C to +65°C

 Comparison of MA5600T Series OLT GPON service board

Specification H802GPBD H805GPBD H802GPFD/H805GPFD H806GPBH/H807GPBH
Port quantity 8 8 16 8
MAX Split ratio ( B+) 1: 64 1: 64 1: 64 1: 64
MAX Split ratio (C+/C++) 1:128 1:128 1:128 1:128
D-CMTS No No No No
ONU-based shaping No Yes Yes Yes
Optical performance monitor
(querying Rx optical power is not supported)		 Yes Yes Yes Yes
RSSI detection and controlled optical signal transmission of the optical module Yes Yes Yes Yes
ONU-based rate limitation √ √ √ √
CAR group √ √ √ √
Temperature query and high temperature alarm Yes Yes Yes Yes
Automatic power shutdown in case of a high temperature Yes Yes Yes Yes
Maximum differential fibre distance (km) 20 20 40 40
Maximum Number of Service Flows
Supported by the Board		 8184 8184 16368 8184
Maximum Number of MAC address
Supported by the Board		 32768 32768 32768 32768
Available DBA bandwidth (based on single port) (kbit/s) 1238784 1238784 1238784 1238784
Number of T-CONT supported
by each GPON port		 1024 1024 1024 1024
Board supporting downstream FEC Yes Yes Yes Yes
Board supporting upstream FEC Yes Yes Yes Yes
Rogue ONT detection Yes Yes Yes Yes
Number of ONUs supported by
a GPON port		 128 128 128 128
Number of GEM ports supported
by each board		 8192 8192 16384 8192
Number of GEM ports supported
by each GPON port		 3872 3872 3872 3872
Number of service ports supported
by each GEM port		 8 8184 8184 8184
HQoS (four levels) × × H802GPFD: × H806GPBH: ×
H805GPFD: √ H807GPBH: √
9216-byte Jumbo frames × × H802GPFD: × H806GPBH: ×
H805GPFD: √ H807GPBH: √
Power budget supported by a GPON port Class B+ (28.5 dB, mostly used),
Class C+ (32 dB long reach transmission)
Class C++: 35 dB
Minimum bandwidth supported by a T-CONT 1 Mbit/s (in the minimum delay mode)
128 kbit/s (in the maximum bandwidth usage mode)

The H807GPBD board is a 8-port GPON OLT interface board for Huawei SmartAX MA5600T series OLT including the MA5608T, MA5683T and MA5680T. It works together with the ONU to provide the GPON access service.

8 GPON ports (SFP)

Max. split radio:
Class B+: 1: 64
Class C+/C++: 1: 128

Port rate:
Upstream: 1.244 Gbit/s
Downstream: 2.488 Gbit/s

Power budget per GPON port:
Class B+ (28 dB, most common),
Class C+ (32 dB, long reach transmission)
Class C++: 35 dB

MAC address table size: 8192

Service flows per PON board: 8184

Available DBA bandwidth: 1238784 kbit/s


Specification
Service ports
GPON Port 8-GPON Port
GPON SFP Module Specification
Type C+ Module : One-fiber bi-directional optical module, class C+
Operating Wavelength Tx: 1490 nm, Rx: 1310 nm
Encapsulation Type SFP
Port Rate Tx: 2.49 Gbit/s, Rx: 1.24 Gbit/s
Minimun Output Optical Power C+ Module : 3.00 dBm
Maximum Output Optical Power C+ Module : 7.00 dBm
Maximum Receiver Sensitivity C+ Module : -32.00 dBm
Optical Connector Type SC/PC
Optical Fiber Type Single-mode
Reach 20.00 km
Overload Optical Power C+ Module : -12.0 dBm
Extinction Ratio 8.2 dB
Device Specifications
Dimensions (W x D x H) 22.86 mm x 237.00 mm x 395.40 mm
Power Consumption and Maximum Frame Size
Power Consumption H802GPBD : Static: 45 W, Maximum: 51 W
H805GPBD : Static: 43 W, Maximum: 49 W
Maximum Frame Size For V800R011C00 and earlier versions: 2000 bytes
For V800R012C00 and later versions: 2004 bytes
Operating temperature -25°C to +65°C

 Comparison of MA5600T Series OLT GPON service board

Specification H802GPBD H805GPBD H802GPFD/H805GPFD H806GPBH/H807GPBH
Port quantity 8 8 16 8
MAX Split ratio ( B+) 1: 64 1: 64 1: 64 1: 64
MAX Split ratio (C+/C++) 1:128 1:128 1:128 1:128
D-CMTS No No No No
ONU-based shaping No Yes Yes Yes
Optical performance monitor
(querying Rx optical power is not supported)		 Yes Yes Yes Yes
RSSI detection and controlled optical signal transmission of the optical module Yes Yes Yes Yes
ONU-based rate limitation √ √ √ √
CAR group √ √ √ √
Temperature query and high temperature alarm Yes Yes Yes Yes
Automatic power shutdown in case of a high temperature Yes Yes Yes Yes
Maximum differential fibre distance (km) 20 20 40 40
Maximum Number of Service Flows
Supported by the Board		 8184 8184 16368 8184
Maximum Number of MAC address
Supported by the Board		 32768 32768 32768 32768
Available DBA bandwidth (based on single port) (kbit/s) 1238784 1238784 1238784 1238784
Number of T-CONT supported
by each GPON port		 1024 1024 1024 1024
Board supporting downstream FEC Yes Yes Yes Yes
Board supporting upstream FEC Yes Yes Yes Yes
Rogue ONT detection Yes Yes Yes Yes
Number of ONUs supported by
a GPON port		 128 128 128 128
Number of GEM ports supported
by each board		 8192 8192 16384 8192
Number of GEM ports supported
by each GPON port		 3872 3872 3872 3872
Number of service ports supported
by each GEM port		 8 8184 8184 8184
HQoS (four levels) × × H802GPFD: × H806GPBH: ×
H805GPFD: √ H807GPBH: √
9216-byte Jumbo frames × × H802GPFD: × H806GPBH: ×
H805GPFD: √ H807GPBH: √
Power budget supported by a GPON port Class B+ (28.5 dB, mostly used),
Class C+ (32 dB long reach transmission)
Class C++: 35 dB
Minimum bandwidth supported by a T-CONT 1 Mbit/s (in the minimum delay mode)
128 kbit/s (in the maximum bandwidth usage mode)
