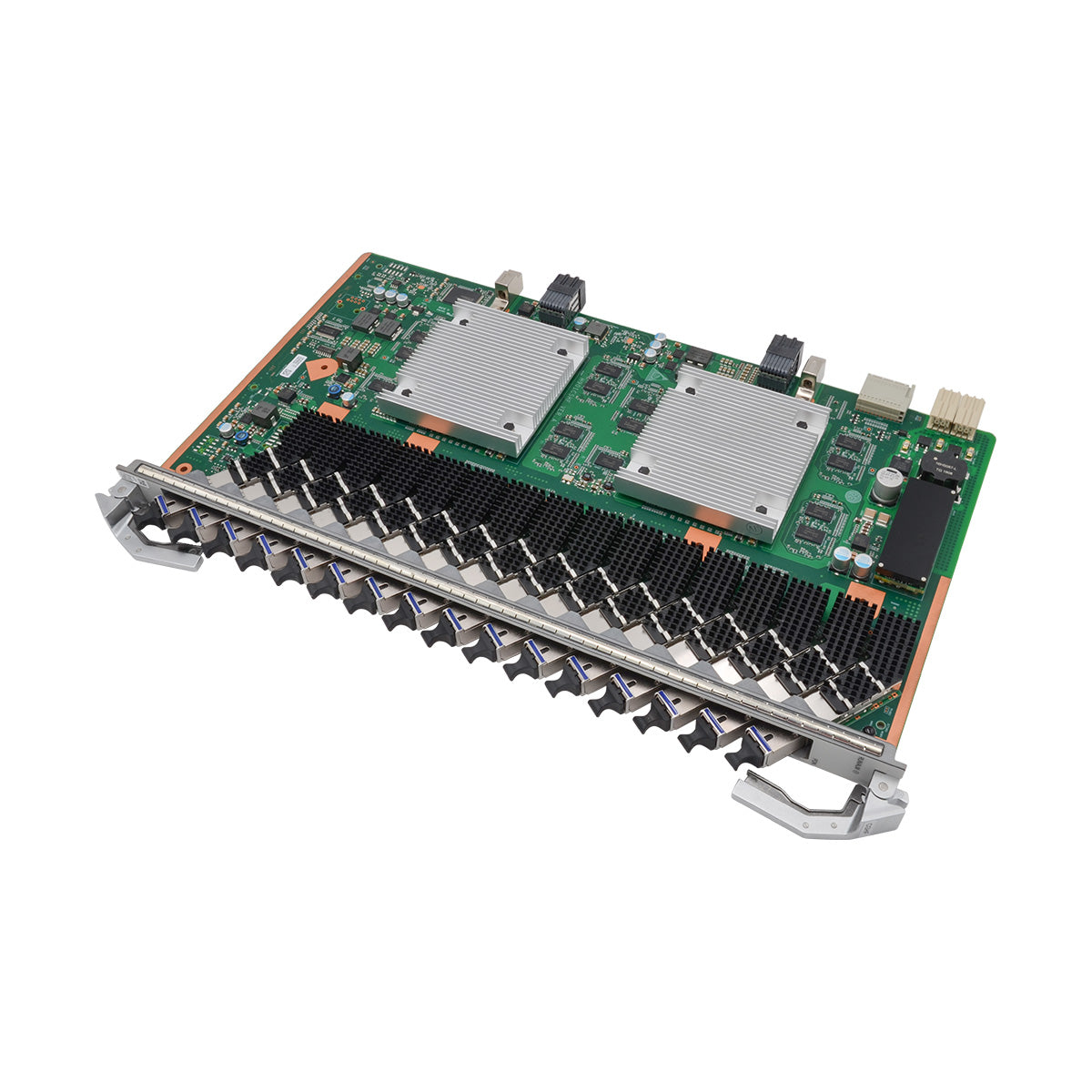

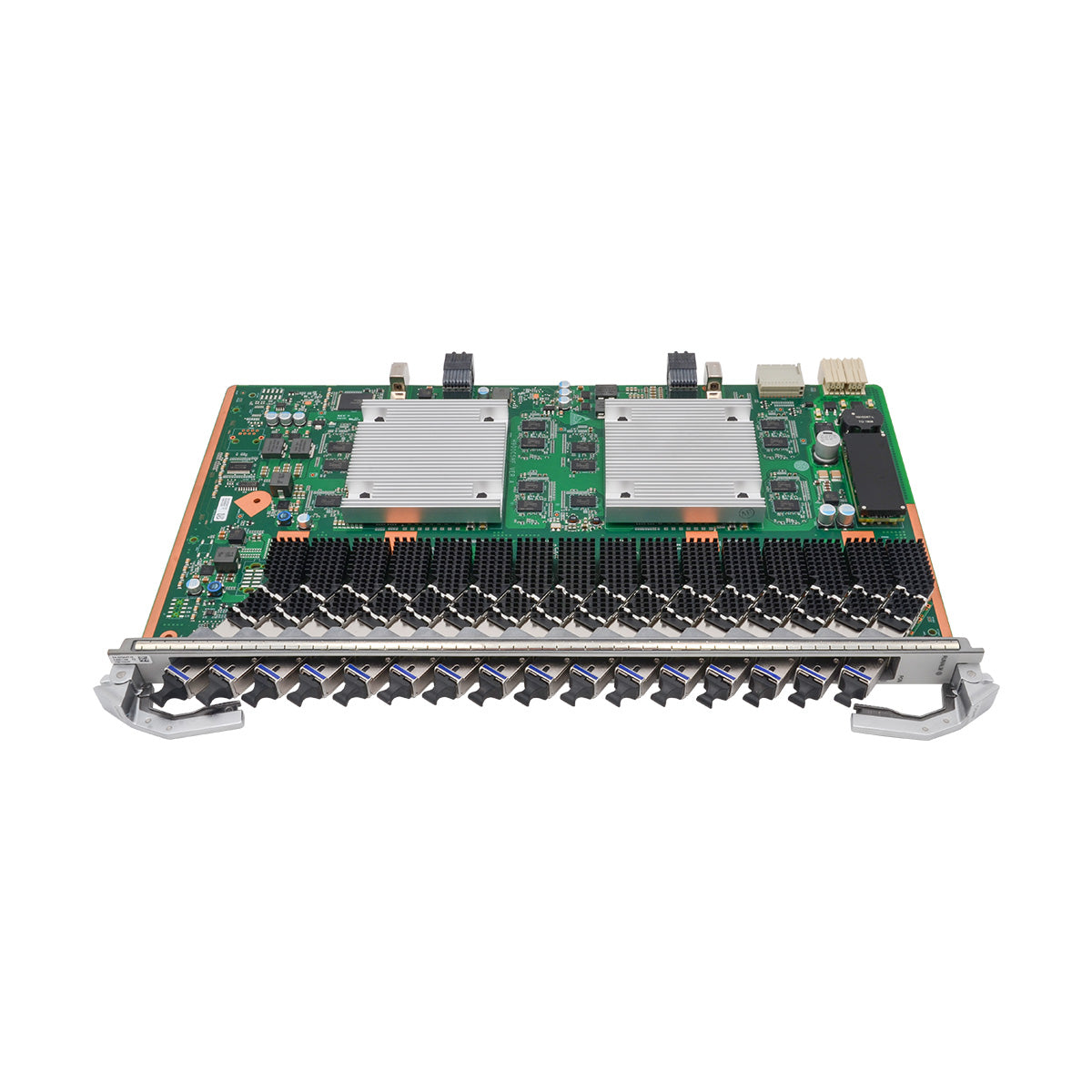

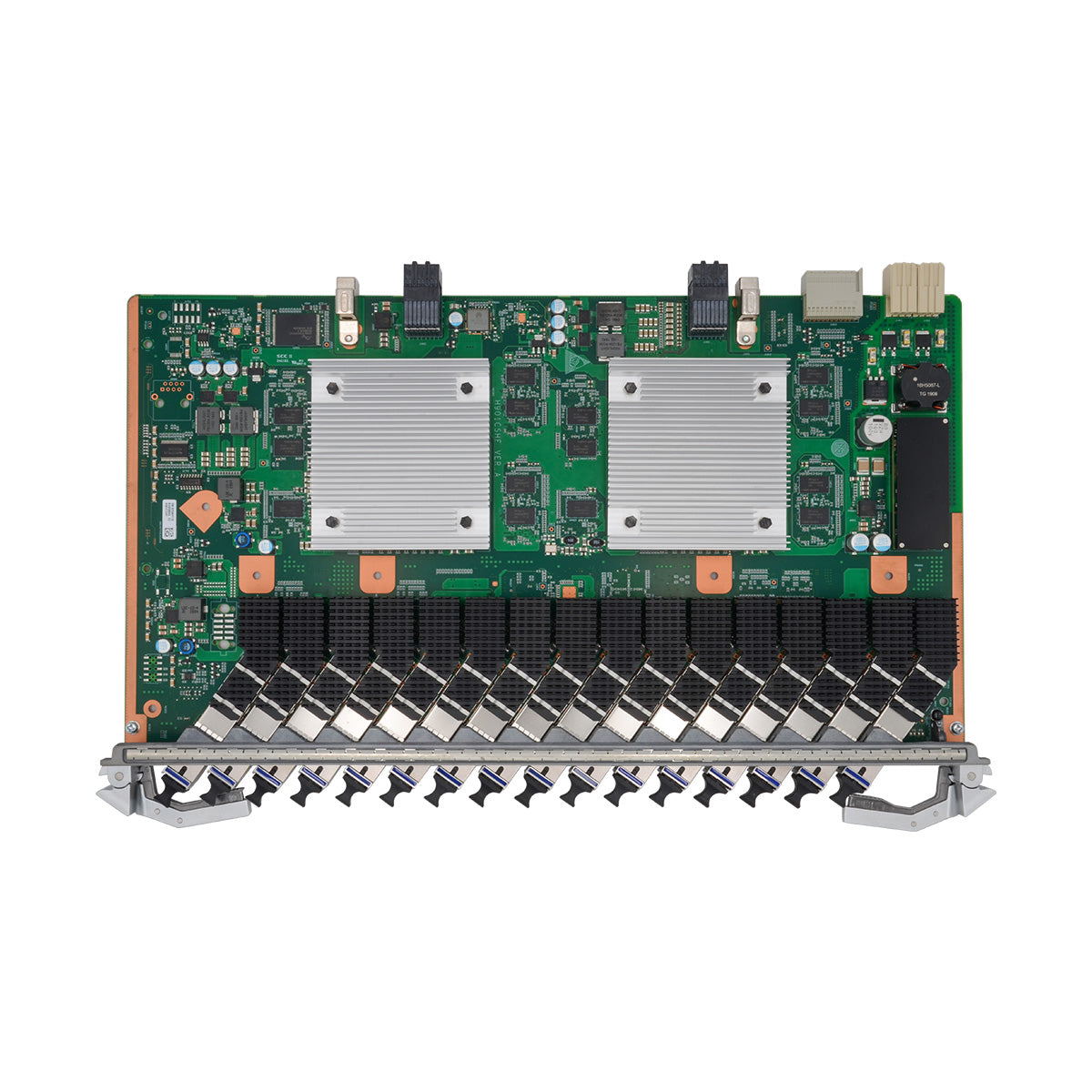

Huawei H901CGHF 16-port XG-PON and GPON combo Board for MA5800 series OLT
- Unified 16*PON Module
- Original Package
- Board and Modules Tested
- Support 9216 bytes (jumbo frame enabled)
The H901CGHF board is an 16-port XG-PON and GPON Combo OLT interface board for Huawei SmartAX MA5800 series OLT including the MA5800-X17, MA5800-X15, MA5800-X7, and MA5800-X2. It works together with the optical network unit (ONU) to provide XG-PON and GPON access services.
16 XG-PON&GPON ports (SFP+)
Maximum split ratio 1: 256
Port rate: GPON upstream: 1.244 Gbit/s
GPON downstream: 2.488 Gbit/s
XG-PON upstream: 2.488 Gbit/s
XG-PON downstream: 9.953 Gbit/s
Rate mode: Asymmetric rate
Forwarding capability: 200 Gbit/s
CGHF Application Scenario
| Specification | |
| Service ports | |
| GPON Port | 16 XG-PON & GPON ports |
| GPON SFP+ Module Specification | |
| Type | One-fiber bi-directional optical module |
| Operating Wavelength | GPON channel: Tx: 1490 nm Rx: 1310 nm XG-PON channel: Tx: 1577 nm Rx: 1270 nm |
| Encapsulation Type | SFP+ |
| Port Rate |
GPON channel: |
| Minimum Output Optical Power |
GPON channel: 3 dBm |
| Maximum Output Optical Power |
GPON channel: 7 dBm |
| Maximum Receiver Sensitivity |
GPON channel: -32 dBm |
| Optical Connector Type | SC |
| Optical Fiber Type | Single-mode |
| Overload Optical Power |
GPON channel: -12 dBm |
| Extinction Ratio | 8.2 dB |
| Function |
|
| Forwarding capability | 200 Gbit/s |
| Rate mode | Asymmetric rate |
| T-CONTs per PON port |
GPON: 1024 |
| Service flows per PON board | 16352 |
| Maximum frame size |
2052 bytes |
| Maximum number of MAC addresses | 131072 |
|
Maximum distance difference between two ONUs under the same PON port |
40 km |
| Device Specifications | |
| Dimensions (W x D x H) | 23.30 mm * 257.90 mm * 399.20 mm |
| Power Consumption and Maximum Frame Size | |
| Power Consumption |
Static: 48 W |
| Operating temperature | -40°C to +65°C |
Differences between Huawei MA5800 series PON Combo interface board
| Specifications | H901CGID | H901CGHF | H901CSHF/H902CSHF | H902CGHD | H902CSHD |
| Port quantity | 8 | 16 | 16 | 8 | 8 |
| Forwarding capability | 80 Gbit/s | 200 Gbit/s | 200 Gbit/s | 100 Gbit/s | 100 Gbit/s |
| Rate mode | Asymmetric rate | Asymmetric rate | Supports two modes: | Asymmetric rate | Supports two modes: |
| Asymmetric | Asymmetric | ||||
| Symmetric | Symmetric | ||||
| Port rates | GPON upstream: 1.244 Gbit/s | GPON upstream: 1.244 Gbit/s | GPON upstream: 1.244 Gbit/s | GPON upstream: 1.244 Gbit/s | GPON upstream: 1.244 Gbit/s |
| GPON downstream: 2.488 Gbit/s | GPON downstream: 2.488 Gbit/s | GPON downstream: 2.488 Gbit/s | GPON downstream: 2.488 Gbit/s | GPON downstream: 2.488 Gbit/s | |
| XG-PON upstream: 2.488 Gbit/s | XG-PON upstream: 2.488 Gbit/s | XGS-PON upstream: 9.953/2.488 Gbit/s | XG-PON upstream: 2.488 Gbit/s | XGS-PON upstream: 9.953/2.488 Gbit/s | |
| XG-PON downstream: 9.953 Gbit/s | XG-PON downstream: 9.953 Gbit/s | XGS-PON downstream: 9.953 Gbit/s | XG-PON downstream: 9.953 Gbit/s | XGS-PON downstream: 9.953 Gbit/s | |
| Max split ratio | GPON: 1:128 | GPON: 1:128 | GPON: 1:128 | GPON: 1:128 | GPON: 1:128 |
| XG-PON: 1:256 | XG-PON: 1:256 | XG(S)-PON: 1:256 | XG-PON: 1:256 | XG(S)-PON: 1:256 | |
| T-CONTs per PON port | GPON/auto type ONU: 1024 | GPON/auto type ONU: 1024 | GPON/auto type ONU: 1024 | GPON/auto type ONU: 1024 | GPON/auto type ONU: 1024 |
| XG-PON: 2048 | XG-PON: 2048 | XG(S)-PON: 2048 | XG-PON: 2048 | XG(S)-PON: 2048 | |
| Service flows per PON board | 16368 | 16352 | 16352 | 16368 | 16368 |
| Max number of MAC addresses | 131072 | 131072 | 131072 | 131072 | 131072 |
| Max distance difference between 2 ONUs under same PON port | 40 km | 40 km | 40 km | 40 km | 40 km |
| Supported ONU rates | GPON: 2.5G/1.25G (downstream rate/upstream rate) | GPON: 2.5G/1.25G (downstream rate/upstream rate) | GPON: 2.5G/1.25G (downstream rate/upstream rate) | GPON: 2.5G/1.25G (downstream rate/upstream rate) | GPON: 2.5G/1.25G (downstream rate/upstream rate) |
| XG-PON: 10G/2.5G (downstream rate/upstream rate) | XG-PON: 10G/2.5G (downstream rate/upstream rate) | XG-PON: 10G/2.5G (downstream rate/upstream rate) | XG-PON: 10G/2.5G (downstream rate/upstream rate) | XG-PON: 10G/2.5G (downstream rate/upstream rate) | |
| XGS-PON: 10G/10G (downstream rate/upstream rate) | XGS-PON: 10G/10G (downstream rate/upstream rate) | ||||
| FEC | Bidirection | Bidirection | Bidirection | Bidirection | Bidirection |
| CAR group | Yes | Yes | Yes | Yes | Yes |
| HQoS | Yes | Yes | Yes | Yes | Yes |
| PON ISSU | Yes | Yes | Yes | Yes | Yes |
| Variable-length OMCI | Yes | Yes | Yes | Yes | Yes |
| ONU-based shaping or queue-based shaping | Yes | Yes | Yes | Yes | Yes |
| Type B protection (single-homing) | Yes | Yes | Yes | Yes | Yes |
| Type B protection (dual-homing) | Yes | Yes | Yes | Yes | Yes |
| Type C protection (single-homing) | Yes (applicable to GPON channels) | Yes (applicable to GPON channels) | Yes (applicable to GPON channels) | Yes (applicable to GPON channels) | Yes (applicable to GPON channels) |
| Type C protection (dual-homing) | Yes (applicable to GPON channels) | Yes (applicable to GPON channels) | Yes (applicable to GPON channels) | Yes (applicable to GPON channels) | Yes (applicable to GPON channels) |
| 1588v2 | Yes | Yes | No | Yes | Yes |
| 9216-byte jumbo frames | Yes | Yes | Yes | Yes | Yes |
| Rogue ONT detection &isolation | Yes | Yes | Yes | Yes | Yes |
| Automatic shutdown at high temperature | Yes | Yes | Yes | Yes | Yes |
| Energy conservation for service boards | Yes | Yes | Yes | Yes | Yes |
| D-CCAP | No | No | No | No | No |
The H901CGHF board is an 16-port XG-PON and GPON Combo OLT interface board for Huawei SmartAX MA5800 series OLT including the MA5800-X17, MA5800-X15, MA5800-X7, and MA5800-X2. It works together with the optical network unit (ONU) to provide XG-PON and GPON access services.
16 XG-PON&GPON ports (SFP+)
Maximum split ratio 1: 256
Port rate: GPON upstream: 1.244 Gbit/s
GPON downstream: 2.488 Gbit/s
XG-PON upstream: 2.488 Gbit/s
XG-PON downstream: 9.953 Gbit/s
Rate mode: Asymmetric rate
Forwarding capability: 200 Gbit/s
CGHF Application Scenario
| Specification | |
| Service ports | |
| GPON Port | 16 XG-PON & GPON ports |
| GPON SFP+ Module Specification | |
| Type | One-fiber bi-directional optical module |
| Operating Wavelength | GPON channel: Tx: 1490 nm Rx: 1310 nm XG-PON channel: Tx: 1577 nm Rx: 1270 nm |
| Encapsulation Type | SFP+ |
| Port Rate |
GPON channel: |
| Minimum Output Optical Power |
GPON channel: 3 dBm |
| Maximum Output Optical Power |
GPON channel: 7 dBm |
| Maximum Receiver Sensitivity |
GPON channel: -32 dBm |
| Optical Connector Type | SC |
| Optical Fiber Type | Single-mode |
| Overload Optical Power |
GPON channel: -12 dBm |
| Extinction Ratio | 8.2 dB |
| Function |
|
| Forwarding capability | 200 Gbit/s |
| Rate mode | Asymmetric rate |
| T-CONTs per PON port |
GPON: 1024 |
| Service flows per PON board | 16352 |
| Maximum frame size |
2052 bytes |
| Maximum number of MAC addresses | 131072 |
|
Maximum distance difference between two ONUs under the same PON port |
40 km |
| Device Specifications | |
| Dimensions (W x D x H) | 23.30 mm * 257.90 mm * 399.20 mm |
| Power Consumption and Maximum Frame Size | |
| Power Consumption |
Static: 48 W |
| Operating temperature | -40°C to +65°C |
Differences between Huawei MA5800 series PON Combo interface board
| Specifications | H901CGID | H901CGHF | H901CSHF/H902CSHF | H902CGHD | H902CSHD |
| Port quantity | 8 | 16 | 16 | 8 | 8 |
| Forwarding capability | 80 Gbit/s | 200 Gbit/s | 200 Gbit/s | 100 Gbit/s | 100 Gbit/s |
| Rate mode | Asymmetric rate | Asymmetric rate | Supports two modes: | Asymmetric rate | Supports two modes: |
| Asymmetric | Asymmetric | ||||
| Symmetric | Symmetric | ||||
| Port rates | GPON upstream: 1.244 Gbit/s | GPON upstream: 1.244 Gbit/s | GPON upstream: 1.244 Gbit/s | GPON upstream: 1.244 Gbit/s | GPON upstream: 1.244 Gbit/s |
| GPON downstream: 2.488 Gbit/s | GPON downstream: 2.488 Gbit/s | GPON downstream: 2.488 Gbit/s | GPON downstream: 2.488 Gbit/s | GPON downstream: 2.488 Gbit/s | |
| XG-PON upstream: 2.488 Gbit/s | XG-PON upstream: 2.488 Gbit/s | XGS-PON upstream: 9.953/2.488 Gbit/s | XG-PON upstream: 2.488 Gbit/s | XGS-PON upstream: 9.953/2.488 Gbit/s | |
| XG-PON downstream: 9.953 Gbit/s | XG-PON downstream: 9.953 Gbit/s | XGS-PON downstream: 9.953 Gbit/s | XG-PON downstream: 9.953 Gbit/s | XGS-PON downstream: 9.953 Gbit/s | |
| Max split ratio | GPON: 1:128 | GPON: 1:128 | GPON: 1:128 | GPON: 1:128 | GPON: 1:128 |
| XG-PON: 1:256 | XG-PON: 1:256 | XG(S)-PON: 1:256 | XG-PON: 1:256 | XG(S)-PON: 1:256 | |
| T-CONTs per PON port | GPON/auto type ONU: 1024 | GPON/auto type ONU: 1024 | GPON/auto type ONU: 1024 | GPON/auto type ONU: 1024 | GPON/auto type ONU: 1024 |
| XG-PON: 2048 | XG-PON: 2048 | XG(S)-PON: 2048 | XG-PON: 2048 | XG(S)-PON: 2048 | |
| Service flows per PON board | 16368 | 16352 | 16352 | 16368 | 16368 |
| Max number of MAC addresses | 131072 | 131072 | 131072 | 131072 | 131072 |
| Max distance difference between 2 ONUs under same PON port | 40 km | 40 km | 40 km | 40 km | 40 km |
| Supported ONU rates | GPON: 2.5G/1.25G (downstream rate/upstream rate) | GPON: 2.5G/1.25G (downstream rate/upstream rate) | GPON: 2.5G/1.25G (downstream rate/upstream rate) | GPON: 2.5G/1.25G (downstream rate/upstream rate) | GPON: 2.5G/1.25G (downstream rate/upstream rate) |
| XG-PON: 10G/2.5G (downstream rate/upstream rate) | XG-PON: 10G/2.5G (downstream rate/upstream rate) | XG-PON: 10G/2.5G (downstream rate/upstream rate) | XG-PON: 10G/2.5G (downstream rate/upstream rate) | XG-PON: 10G/2.5G (downstream rate/upstream rate) | |
| XGS-PON: 10G/10G (downstream rate/upstream rate) | XGS-PON: 10G/10G (downstream rate/upstream rate) | ||||
| FEC | Bidirection | Bidirection | Bidirection | Bidirection | Bidirection |
| CAR group | Yes | Yes | Yes | Yes | Yes |
| HQoS | Yes | Yes | Yes | Yes | Yes |
| PON ISSU | Yes | Yes | Yes | Yes | Yes |
| Variable-length OMCI | Yes | Yes | Yes | Yes | Yes |
| ONU-based shaping or queue-based shaping | Yes | Yes | Yes | Yes | Yes |
| Type B protection (single-homing) | Yes | Yes | Yes | Yes | Yes |
| Type B protection (dual-homing) | Yes | Yes | Yes | Yes | Yes |
| Type C protection (single-homing) | Yes (applicable to GPON channels) | Yes (applicable to GPON channels) | Yes (applicable to GPON channels) | Yes (applicable to GPON channels) | Yes (applicable to GPON channels) |
| Type C protection (dual-homing) | Yes (applicable to GPON channels) | Yes (applicable to GPON channels) | Yes (applicable to GPON channels) | Yes (applicable to GPON channels) | Yes (applicable to GPON channels) |
| 1588v2 | Yes | Yes | No | Yes | Yes |
| 9216-byte jumbo frames | Yes | Yes | Yes | Yes | Yes |
| Rogue ONT detection &isolation | Yes | Yes | Yes | Yes | Yes |
| Automatic shutdown at high temperature | Yes | Yes | Yes | Yes | Yes |
| Energy conservation for service boards | Yes | Yes | Yes | Yes | Yes |
| D-CCAP | No | No | No | No | No |
