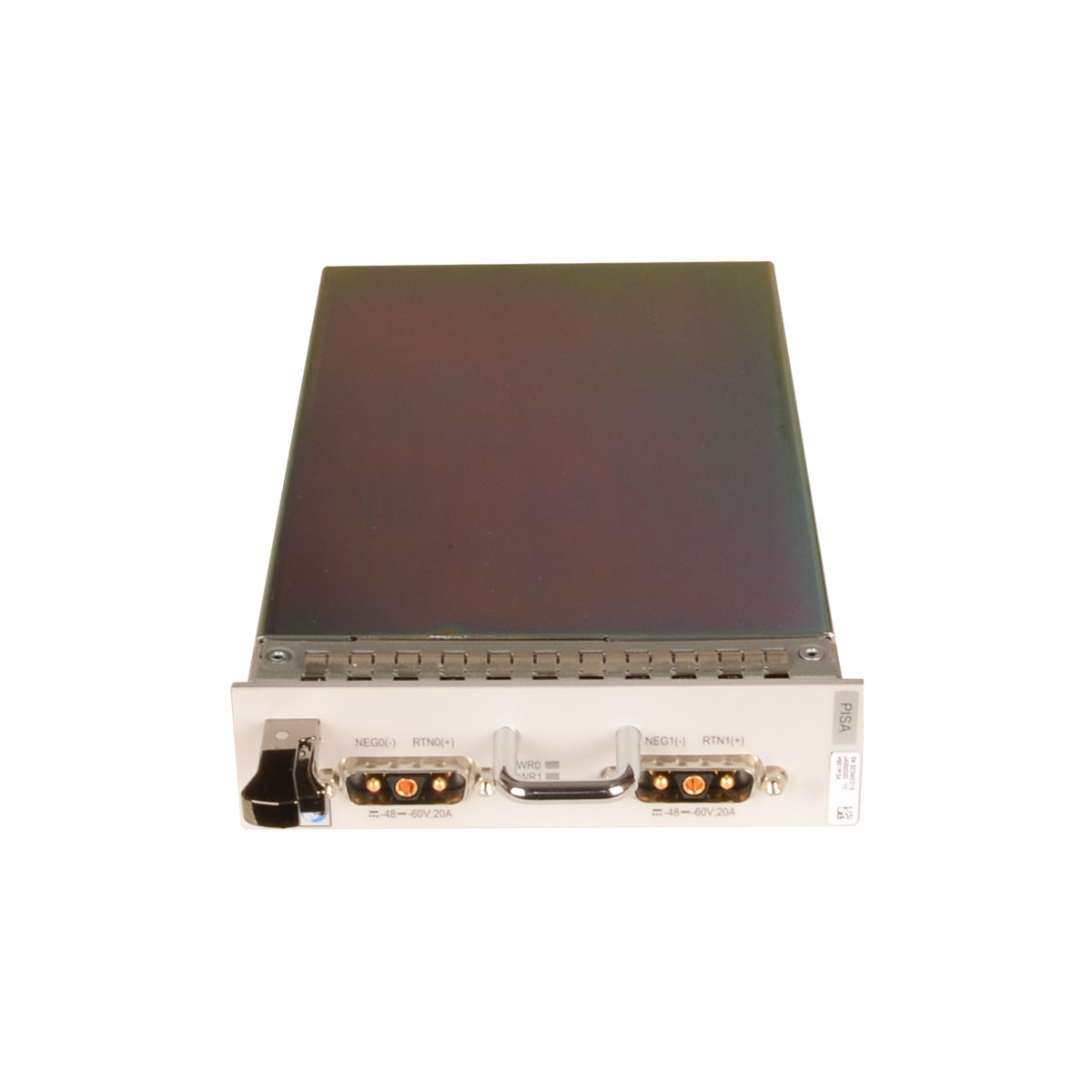

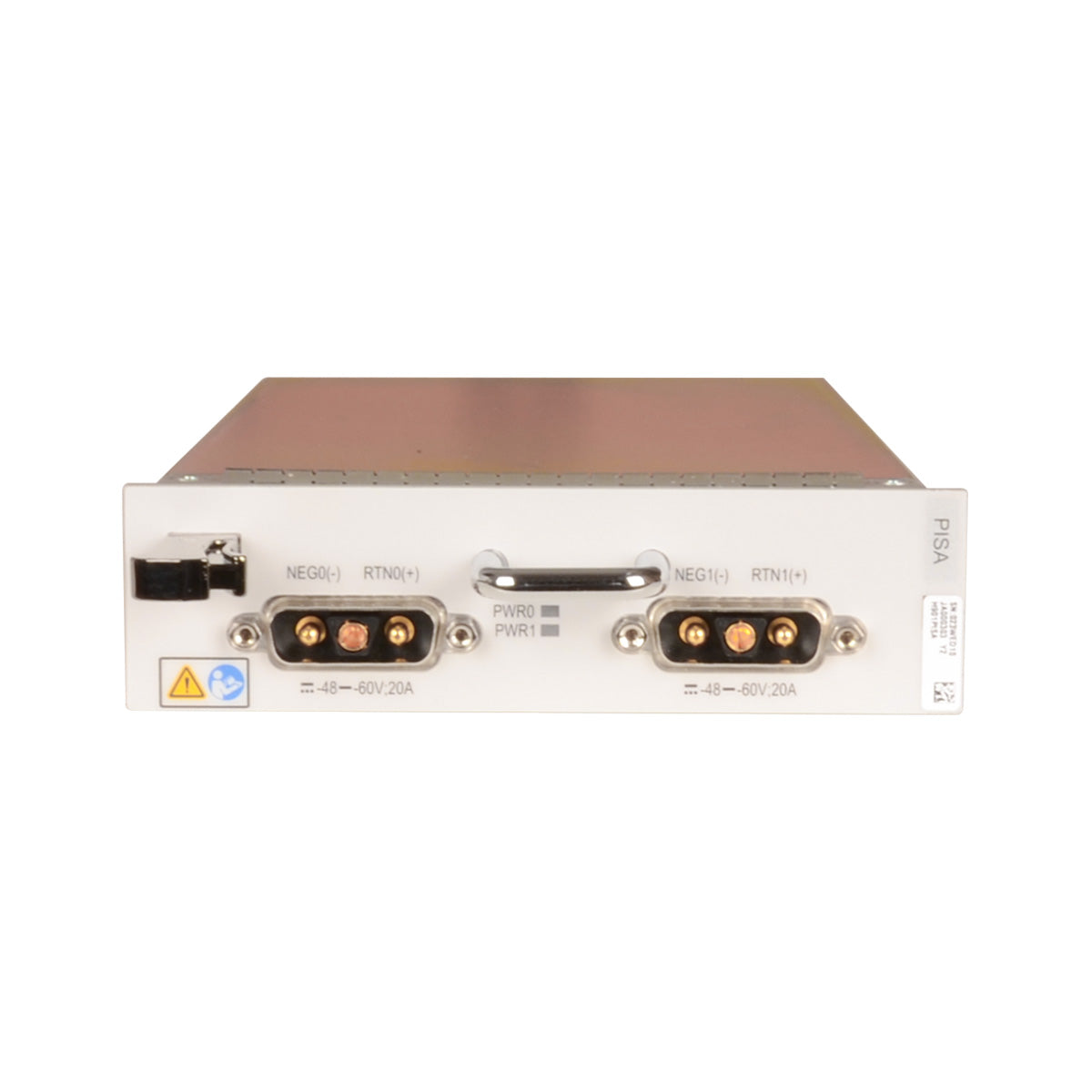

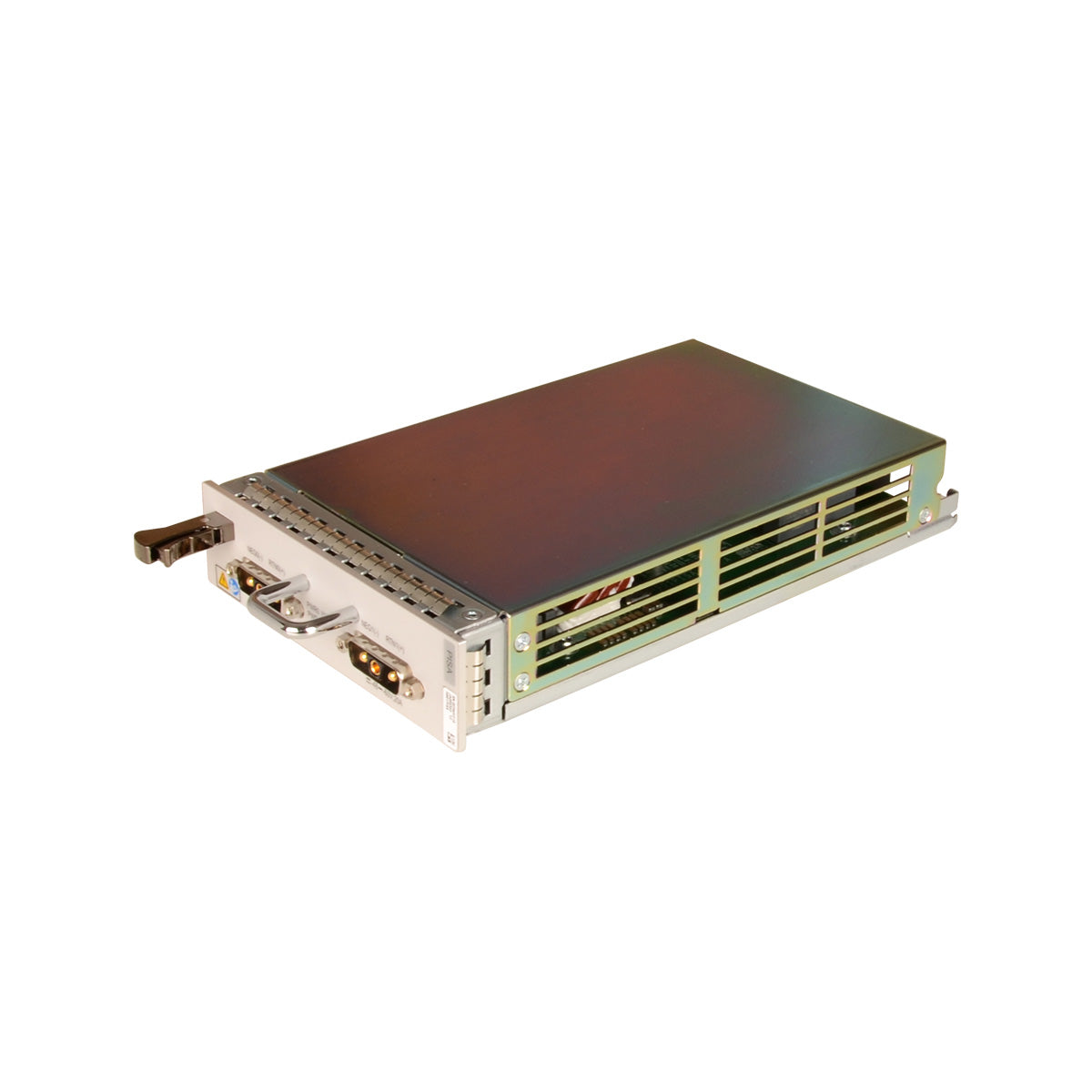

Huawei H901PISA DC Power Board for MA5800-X2 OLT
Review: 5 - "A masterpiece of literature" by , written on May 4, 2006
I really enjoyed this book. It captures the essential challenge people face as they try make sense of their lives and grow to adulthood.

Huawei H901PISA DC Power Board for MA5800-X2 OLT

  • Original Package
  • Board Tested
Available:In Stock
$0.00

The H901PISA board is a power transfer board.

It leads in 2 channels of -48 V or -60 V DC power, and transfers the power to the protection circuit, then to the filter circuit, and finally to the backplane, supplying power to the other boards in the service subrack of MA5800-X2.

H901PISA board supports the following features and specifications:

  • 2 -48 V or -60 V DC power input (input voltage range: -38.4 V to -72 V)
  • Filtering and current-limiting for the power input port
  • Detection of power input and protection fuse faults
  • Protection alarm and board detection
Model H901PISA
Port 3V3 power port
Function Provides the -48 V power input
Power Consumption Static: 2.5 W
Maximum: 2.5 W
Device Specifications
Dimensions (mm) 35.28 (W) x 253.00 (D) x 130.00 (H)
Weight (kg) 0.72

The H901PISA board is a power transfer board.

It leads in 2 channels of -48 V or -60 V DC power, and transfers the power to the protection circuit, then to the filter circuit, and finally to the backplane, supplying power to the other boards in the service subrack of MA5800-X2.

H901PISA board supports the following features and specifications:

  • 2 -48 V or -60 V DC power input (input voltage range: -38.4 V to -72 V)
  • Filtering and current-limiting for the power input port
  • Detection of power input and protection fuse faults
  • Protection alarm and board detection
Model H901PISA
Port 3V3 power port
Function Provides the -48 V power input
Power Consumption Static: 2.5 W
Maximum: 2.5 W
Device Specifications
Dimensions (mm) 35.28 (W) x 253.00 (D) x 130.00 (H)
Weight (kg) 0.72
