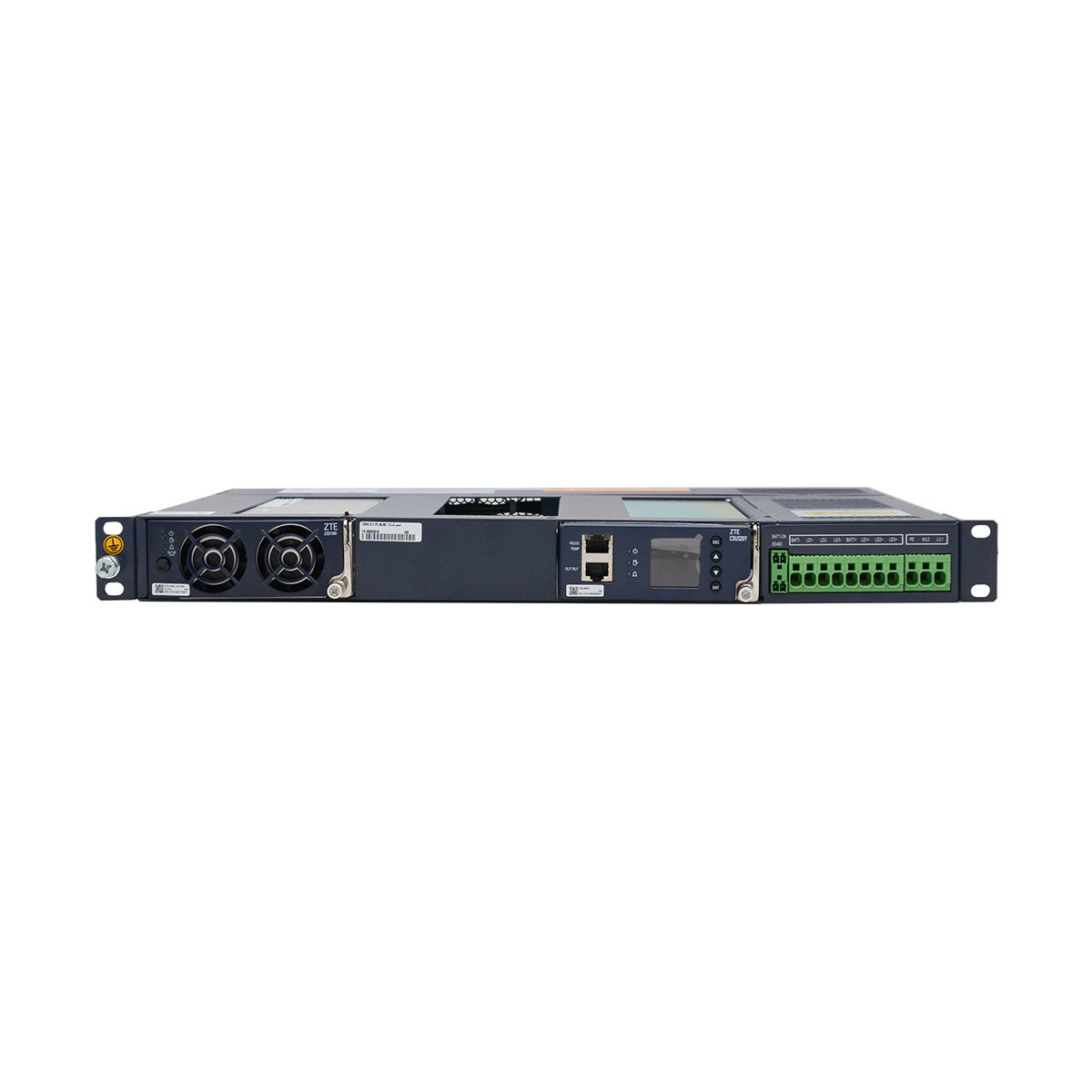

ZTE ZXDU48 B600 30A AC/DC Power

  • EU/US/UK Input AC Power Cable Included
  • BATT Backup
  • Installed in OLT 19 inch Rack
  • Input/Output Air Breaker
Available:In Stock
$0.00

It supports 220V single-live wire voltage input and 110V dual-live wire input.

It operates in the phase-to-neutral voltage range from 85V to 295V.

The rated DC output voltage is -53.5V and continuously adjustable from -42V to -58V

Provides input/output dry contacts and RS232 ports.



Specification
Item  Description

Operating temperature

-33℃ to +55℃

Sheds the load when they system operates in a temperature higher than 55℃

Powers off automatically when the system temperature is higher than 75℃

Storage temperature

-45℃ to +70℃

Relative humidity

5% to 95% (non-condensing). It is recommended that the relative humidity is in the range of 40% to 60%

Altitude

0m to 2000m: Outputs in full power

2000m to 3000m: Derated by 1% for every 100m increase of altitude

Space requirement The system must be installed in a 19-inch cabinet or rack.

The system must be horizontally installed. The cabinet must be definitely vertical. No bump is allowed.

There should be no liquid or conductive objects within, or dropping into the cabinet.

The system must not be installed near any water, corrosive gas, or explosive materials.

There should be no conductive dust or electromagnetic interference in the vicinity.

 System capacity 3200W/66A. Two ZXD1500 rectifiers are required for full configuration
 System efficiency Peak efficiency: 95%


Power limitation based on the input voltage



AC input ≤85 V± 5 V

The output power of the rectifier is 0%.


AC input (85 V±5 V) to 110 V



The power drops linearly. The output power of the rectifier ranges from 40% to 60% of the overall power.



AC input 110 V to 176 V



The power drops linearly. The output power of the rectifier ranges from 60% to 100% of the overall power.



AC input 176 V to (305 V±5 V)



The output power of the rectifier is 100%.



AC input >305 V±5 V



The output power of the rectifier is 0%.



Power limitation based on the temperature


Ambient temperature: -33℃ to +55℃ The output power of the rectifier is 100%
Ambient temperature: +55℃ to +75℃  The output power decreases linearly as the temperature rises. When the environmental temperature reaches 70°C, the output power is no lower than 62.6% of the maximum power.
Ambient temperature: >+75°C  The output power of the rectifier is 0% (power-off protection)
Over all noise (sound pressure) ≤68 dB(A)
Network architecture for monitoring RS232 ports connected in series
 Mean time between failures MTBF≥3.2x 10⁵ h
Design life  10 years to 15 years
Input AC features AC input mode  Three-wire single-phase system (LN/PE). Compatible with dual-live wires (L1/L2/PE)
Input AC voltage Rated phase-to-neutral voltage: 200 V to 240 V

Range of phase-to-neutral voltage: 85 V to 295 V

Input frequency Rated frequency: 50 Hz/60 Hz

Frequency range: 45 Hz to 66Hz

Input PF The PF is no lower than 0.996 at the rated load.
Total harmonic distortion  THD≤5% when the system operates at a power ranging from 30% to 100% of the rated power.
AC lightning protection  A lightning protection module is embedded in the rectifier.
 AC power distribution   Number of AC inputs  1
AC input circuit breaker  3xrimping terminals
Stanby AC output  -
Protection feature AC overvoltage protection  The overvoltage protection takes effect when the single-phase input voltage is higher than the AC overvoltage protection threshold.
AC undervoltage protection  The undervoltage protection takes effect when the single-phase input voltage is lower than the AC under voltage protection threshold.
Output DC properties Rated DC output voltage  -53.5 V DC
Range of the DC output voltage  Continuously adjustable from -41 V to -58 V (adjust by the CSU)
Voltage drop in the cabinet  ≤500 mV

Regulated voltage precision

≤0.6%

Psophometrically weighted noise voltage

≤2 mV

DC lightning

Maximum current of the lightning arrester: Imax = 3 kA (8/20 μs)

DC power distribution

Battery inputs

One input. 1 x 30 A, configured with a 40 A fusible link

Protection feature

Power-off protection mode

Battery Low Voltage Disconnect (BLVD)

DC load outputs

Two outputs. 2 x 20 A, configured with a 40 A fusible link

DC overvoltage protection

The overvoltage protection takes effect when the output voltage is higher than the DC overvoltage protection threshold.

DC undervoltage protection

The undervoltage protection takes effect when the output voltage is lower than the DC overvoltage protection threshold.

Battery undervoltage protection

The power-off protection takes effect when the battery voltage is lower than the power -off voltage protection threshold.

Dimensions

1U height / 19-inch width

43.6 mm x 482.6 mm x 260 mm (Height x Width x Depth)

Overall weight (including the rectifiers)

Around 8 kg

Installation mode

Embedded in a 19-inch cabinet

It supports 220V single-live wire voltage input and 110V dual-live wire input.

It operates in the phase-to-neutral voltage range from 85V to 295V.

The rated DC output voltage is -53.5V and continuously adjustable from -42V to -58V

Provides input/output dry contacts and RS232 ports.



Specification
Item  Description

Operating temperature

-33℃ to +55℃

Sheds the load when they system operates in a temperature higher than 55℃

Powers off automatically when the system temperature is higher than 75℃

Storage temperature

-45℃ to +70℃

Relative humidity

5% to 95% (non-condensing). It is recommended that the relative humidity is in the range of 40% to 60%

Altitude

0m to 2000m: Outputs in full power

2000m to 3000m: Derated by 1% for every 100m increase of altitude

Space requirement The system must be installed in a 19-inch cabinet or rack.

The system must be horizontally installed. The cabinet must be definitely vertical. No bump is allowed.

There should be no liquid or conductive objects within, or dropping into the cabinet.

The system must not be installed near any water, corrosive gas, or explosive materials.

There should be no conductive dust or electromagnetic interference in the vicinity.

 System capacity 3200W/66A. Two ZXD1500 rectifiers are required for full configuration
 System efficiency Peak efficiency: 95%


Power limitation based on the input voltage



AC input ≤85 V± 5 V

The output power of the rectifier is 0%.


AC input (85 V±5 V) to 110 V



The power drops linearly. The output power of the rectifier ranges from 40% to 60% of the overall power.



AC input 110 V to 176 V



The power drops linearly. The output power of the rectifier ranges from 60% to 100% of the overall power.



AC input 176 V to (305 V±5 V)



The output power of the rectifier is 100%.



AC input >305 V±5 V



The output power of the rectifier is 0%.



Power limitation based on the temperature


Ambient temperature: -33℃ to +55℃ The output power of the rectifier is 100%
Ambient temperature: +55℃ to +75℃  The output power decreases linearly as the temperature rises. When the environmental temperature reaches 70°C, the output power is no lower than 62.6% of the maximum power.
Ambient temperature: >+75°C  The output power of the rectifier is 0% (power-off protection)
Over all noise (sound pressure) ≤68 dB(A)
Network architecture for monitoring RS232 ports connected in series
 Mean time between failures MTBF≥3.2x 10⁵ h
Design life  10 years to 15 years
Input AC features AC input mode  Three-wire single-phase system (LN/PE). Compatible with dual-live wires (L1/L2/PE)
Input AC voltage Rated phase-to-neutral voltage: 200 V to 240 V

Range of phase-to-neutral voltage: 85 V to 295 V

Input frequency Rated frequency: 50 Hz/60 Hz

Frequency range: 45 Hz to 66Hz

Input PF The PF is no lower than 0.996 at the rated load.
Total harmonic distortion  THD≤5% when the system operates at a power ranging from 30% to 100% of the rated power.
AC lightning protection  A lightning protection module is embedded in the rectifier.
 AC power distribution   Number of AC inputs  1
AC input circuit breaker  3xrimping terminals
Stanby AC output  -
Protection feature AC overvoltage protection  The overvoltage protection takes effect when the single-phase input voltage is higher than the AC overvoltage protection threshold.
AC undervoltage protection  The undervoltage protection takes effect when the single-phase input voltage is lower than the AC under voltage protection threshold.
Output DC properties Rated DC output voltage  -53.5 V DC
Range of the DC output voltage  Continuously adjustable from -41 V to -58 V (adjust by the CSU)
Voltage drop in the cabinet  ≤500 mV

Regulated voltage precision

≤0.6%

Psophometrically weighted noise voltage

≤2 mV

DC lightning

Maximum current of the lightning arrester: Imax = 3 kA (8/20 μs)

DC power distribution

Battery inputs

One input. 1 x 30 A, configured with a 40 A fusible link

Protection feature

Power-off protection mode

Battery Low Voltage Disconnect (BLVD)

DC load outputs

Two outputs. 2 x 20 A, configured with a 40 A fusible link

DC overvoltage protection

The overvoltage protection takes effect when the output voltage is higher than the DC overvoltage protection threshold.

DC undervoltage protection

The undervoltage protection takes effect when the output voltage is lower than the DC overvoltage protection threshold.

Battery undervoltage protection

The power-off protection takes effect when the battery voltage is lower than the power -off voltage protection threshold.

Dimensions

1U height / 19-inch width

43.6 mm x 482.6 mm x 260 mm (Height x Width x Depth)

Overall weight (including the rectifiers)

Around 8 kg

Installation mode

Embedded in a 19-inch cabinet
