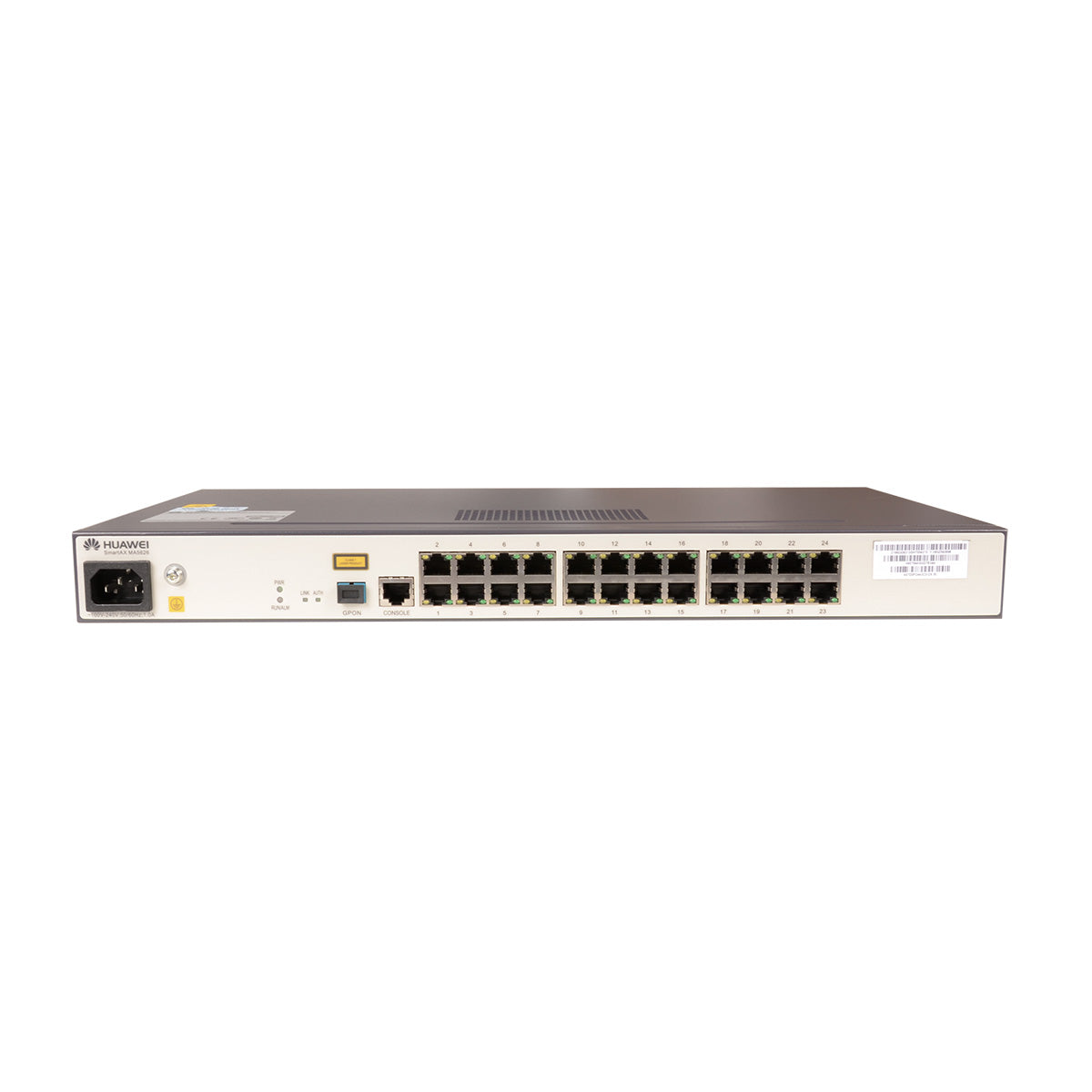

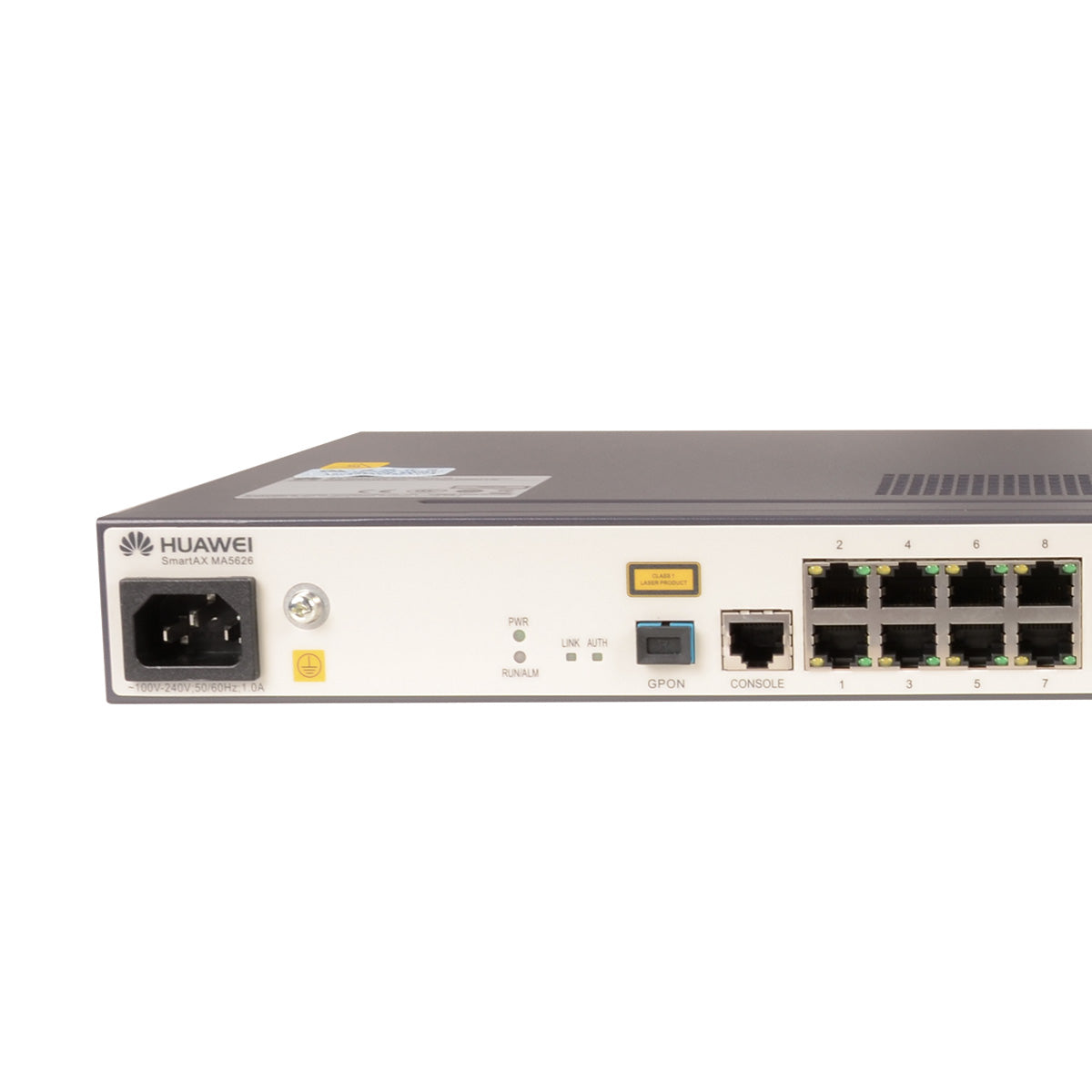

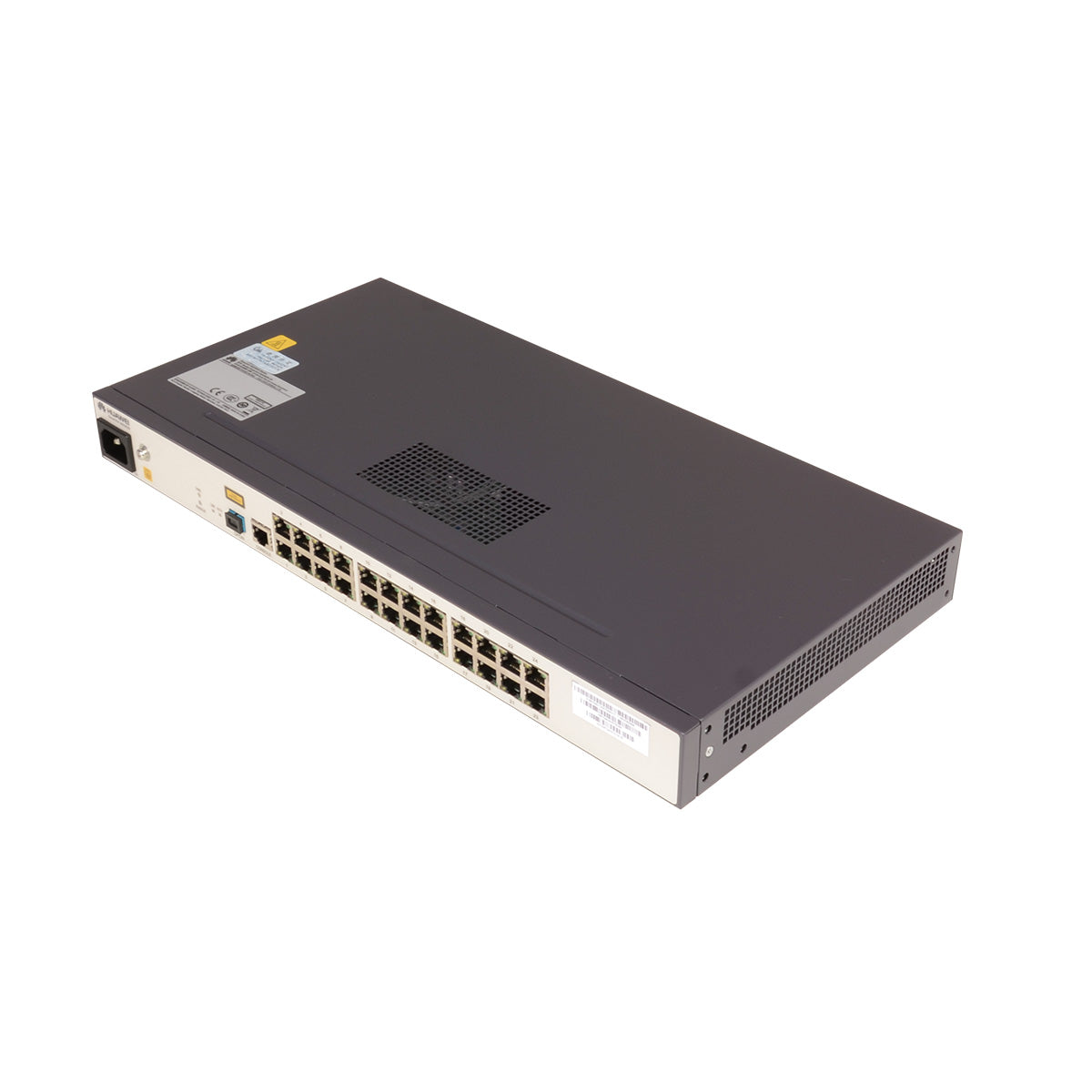

Huawei MA5626 24FE ONU

  • Mainstream Firmware Loaded
  • Sealed Package
  • Original Package
Available:In Stock
$0.00

Huawei MA5626 is a MDU with passive heat dissipation, which supports local area network (LAN) access. It can be used in FTTB + LAN scenarios to provide broadband access and voice services for home and SME users. MA5626 24FE provides 1xGPON uplink ports, 24xFE ports.



Specification
Working environment -40°C to +55°C (start up at -25°C)
Environment humidity: 5% RH to 95% RH(1~29g/m3)
Power supply mode (VAC) AC: 220
Working voltage range (VAC) 90 to 300
Maximum input current (A) 1
Static Power Consumption (W) 6.6
Max Power Consumption (W) 14.6
System packet forwarding
rate (Mpps)		 13.2
System switching capacity
(Gbit/s)		 8.8
Dimensions (mm)
(length x width x height)		 442 mm×220 mm×43.6 mm (without the mounting brackets)
482.6 mm×220 mm×43.6 mm (with the mounting brackets)
Weight(kg) 2.18

Huawei MA5626 is a MDU with passive heat dissipation, which supports local area network (LAN) access. It can be used in FTTB + LAN scenarios to provide broadband access and voice services for home and SME users. MA5626 24FE provides 1xGPON uplink ports, 24xFE ports.



Specification
Working environment -40°C to +55°C (start up at -25°C)
Environment humidity: 5% RH to 95% RH(1~29g/m3)
Power supply mode (VAC) AC: 220
Working voltage range (VAC) 90 to 300
Maximum input current (A) 1
Static Power Consumption (W) 6.6
Max Power Consumption (W) 14.6
System packet forwarding
rate (Mpps)		 13.2
System switching capacity
(Gbit/s)		 8.8
Dimensions (mm)
(length x width x height)		 442 mm×220 mm×43.6 mm (without the mounting brackets)
482.6 mm×220 mm×43.6 mm (with the mounting brackets)
Weight(kg) 2.18
