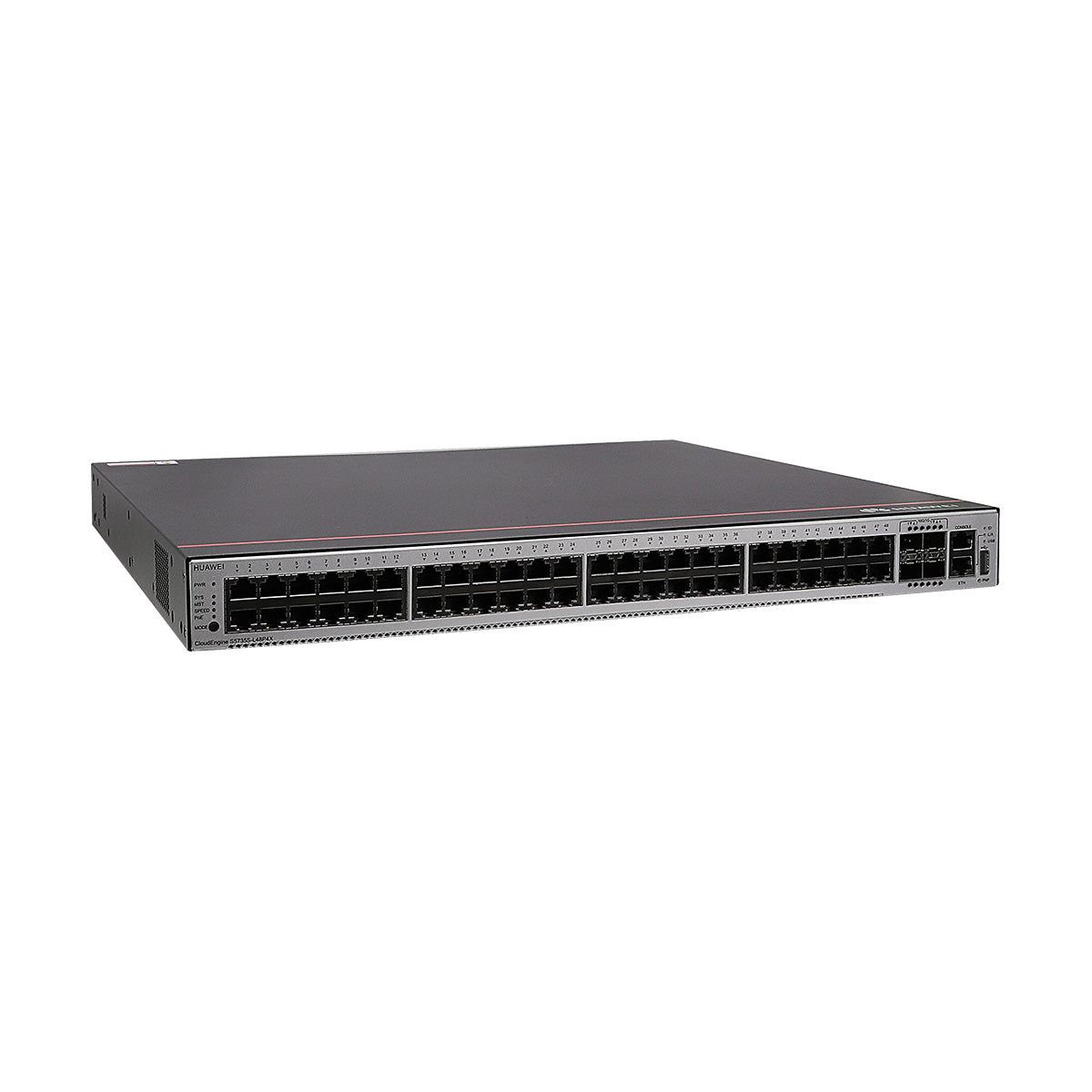

Huawei S5735S-L48P4X-A Switch

  • Brand New Condition
  • Original Box Packed
  • Latest Firmware Version
Available:In Stock
$0.00

Huawei CloudEngine S5735S-L48P4X-A switch with 48-port PoE+ 1000BASE-T, 4-port 10GE SFP+, 1 power slot PN# 98010945

PoE supported

1 GB Memory, 512 MB in total

Applicable power module:
PAC1000S56-CB (02312KND: 1000 W PoE AC&240 V DC Power Module)
PAC1000S56-CB (02312KND-001: 1000 W PoE AC&240 V DC Power Module)
PAC1000S56-DB (1000 W PoE AC&240 V DC Power Module)
PDC1000S56-CB (1000 W PoE DC Power Module)

Huawei CloudEngine S5735S-L is a series of simplified gigabit access switches that provide 12–48 flexible all-GE downlink ports and four fixed GE or 10 GE uplink ports. They are designed for enterprise campus network access and gigabit to the desktop.



Item Description
Memory (RAM) 1 GB
Flash 512 MB in total. To view the available flash memory size, run the display version command.
Mean time between failures (MTBF) 61.7 years
Mean time to repair (MTTR) 2 hours
Availability > 0.99999
Service port surge protection Common mode: ±7 kV
Power supply surge protection Using AC power modules: ±6 kV in differential mode, ±6 kV in common mode
Using DC power modules: ±2 kV in differential mode, ±4 kV in common mode
Dimensions (H x W x D) Basic dimensions  43.6 mm x 442.0 mm x 420.0 mm
Maximum dimensions  43.6 mm x 442.0 mm x 444.2 mm
Weight (with packaging) 8.7 kg (19.18 lb)
Stack ports Any 10/100/1000BASE-T ports or 10GE SFP+ ports (applicable in V200R019C10 and later versions)
RTC Not supported
RPS Not supported
PoE Supported
Rated voltage range AC input: 100 V AC to 130 V AC, 200 V AC to 240 V AC, 50/60 Hz
High-Voltage DC input: 240 V DC
DC input: -48 V DC to -60 V DC
Maximum voltage range AC input: 90 V AC to 290 V AC, 45 Hz to 65 Hz
High-Voltage DC input: 190 V DC to 290 V DC
DC input: -38.4 V DC to -72 V DC
Maximum power consumption (100% throughput, full speed of fans) Not providing the PoE function: 80 W
100% PoE loads: 914 W (PoE: 874 W)
Typical power consumption (30% of traffic load) 59 W
Tested according to ATIS standard
EEE enabled
No PoE power consumption
Operating temperature -5°C to +50°C (23°F to 122°F) at an altitude of 0-1800 m (0-5906 ft.)
Short-term operating temperature -5°C to +55°C (23°F to 131°F) at an altitude of 0-1800 m (0-5906 ft.)
Storage temperature -40°C to +70°C (-40°F to +158°F)
Noise under normal temperature (27°C, sound power) < 58.9 dB(A)
Relative humidity 5% to 95%, noncondensing
Operating altitude 0-5000 m (0-16404 ft.)
Certification EMC certification
Safety certification
Manufacturing certification
Part number 98010945

Huawei CloudEngine S5735S-L48P4X-A switch with 48-port PoE+ 1000BASE-T, 4-port 10GE SFP+, 1 power slot PN# 98010945

PoE supported

1 GB Memory, 512 MB in total

Applicable power module:
PAC1000S56-CB (02312KND: 1000 W PoE AC&240 V DC Power Module)
PAC1000S56-CB (02312KND-001: 1000 W PoE AC&240 V DC Power Module)
PAC1000S56-DB (1000 W PoE AC&240 V DC Power Module)
PDC1000S56-CB (1000 W PoE DC Power Module)

Huawei CloudEngine S5735S-L is a series of simplified gigabit access switches that provide 12–48 flexible all-GE downlink ports and four fixed GE or 10 GE uplink ports. They are designed for enterprise campus network access and gigabit to the desktop.



Item Description
Memory (RAM) 1 GB
Flash 512 MB in total. To view the available flash memory size, run the display version command.
Mean time between failures (MTBF) 61.7 years
Mean time to repair (MTTR) 2 hours
Availability > 0.99999
Service port surge protection Common mode: ±7 kV
Power supply surge protection Using AC power modules: ±6 kV in differential mode, ±6 kV in common mode
Using DC power modules: ±2 kV in differential mode, ±4 kV in common mode
Dimensions (H x W x D) Basic dimensions  43.6 mm x 442.0 mm x 420.0 mm
Maximum dimensions  43.6 mm x 442.0 mm x 444.2 mm
Weight (with packaging) 8.7 kg (19.18 lb)
Stack ports Any 10/100/1000BASE-T ports or 10GE SFP+ ports (applicable in V200R019C10 and later versions)
RTC Not supported
RPS Not supported
PoE Supported
Rated voltage range AC input: 100 V AC to 130 V AC, 200 V AC to 240 V AC, 50/60 Hz
High-Voltage DC input: 240 V DC
DC input: -48 V DC to -60 V DC
Maximum voltage range AC input: 90 V AC to 290 V AC, 45 Hz to 65 Hz
High-Voltage DC input: 190 V DC to 290 V DC
DC input: -38.4 V DC to -72 V DC
Maximum power consumption (100% throughput, full speed of fans) Not providing the PoE function: 80 W
100% PoE loads: 914 W (PoE: 874 W)
Typical power consumption (30% of traffic load) 59 W
Tested according to ATIS standard
EEE enabled
No PoE power consumption
Operating temperature -5°C to +50°C (23°F to 122°F) at an altitude of 0-1800 m (0-5906 ft.)
Short-term operating temperature -5°C to +55°C (23°F to 131°F) at an altitude of 0-1800 m (0-5906 ft.)
Storage temperature -40°C to +70°C (-40°F to +158°F)
Noise under normal temperature (27°C, sound power) < 58.9 dB(A)
Relative humidity 5% to 95%, noncondensing
Operating altitude 0-5000 m (0-16404 ft.)
Certification EMC certification
Safety certification
Manufacturing certification
Part number 98010945
