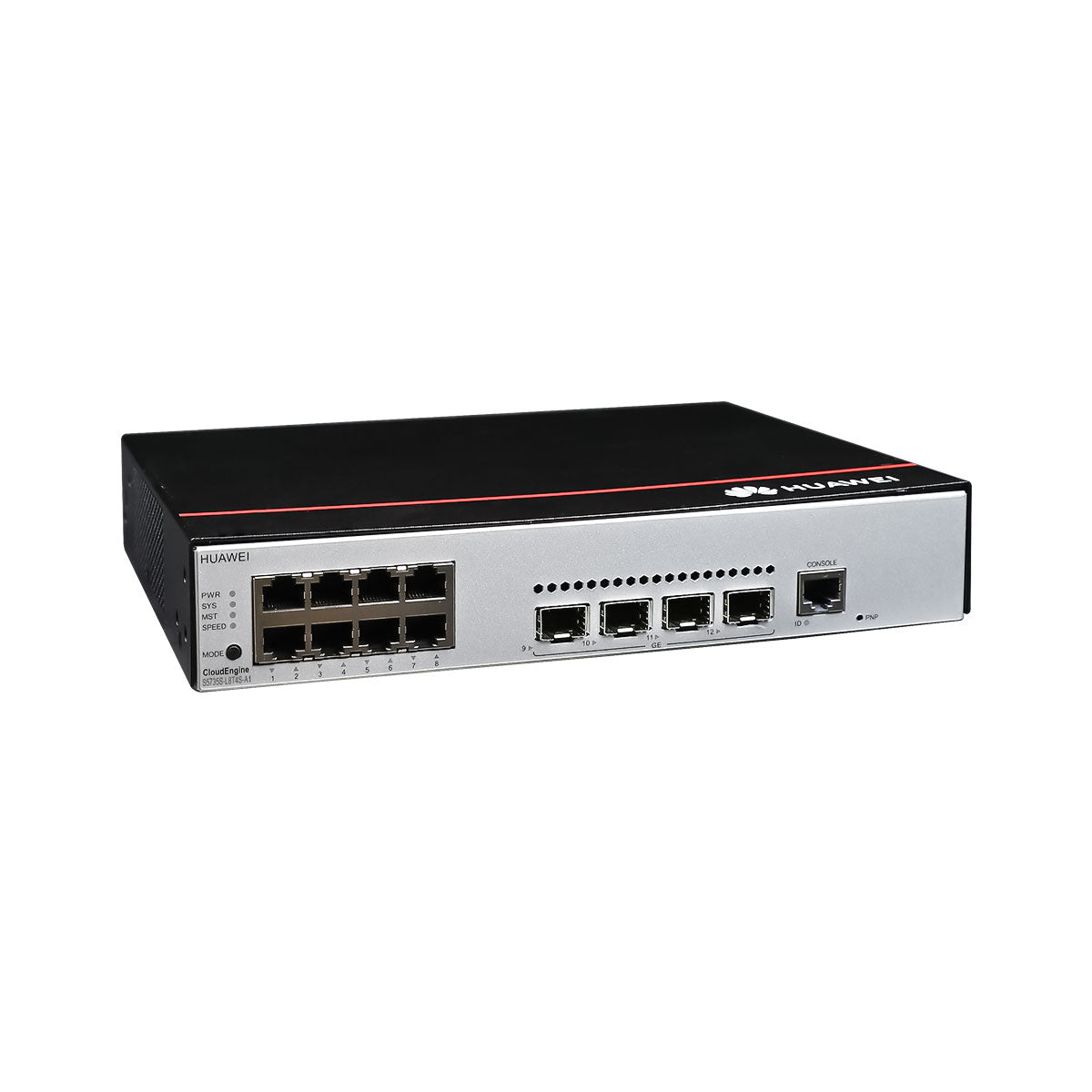

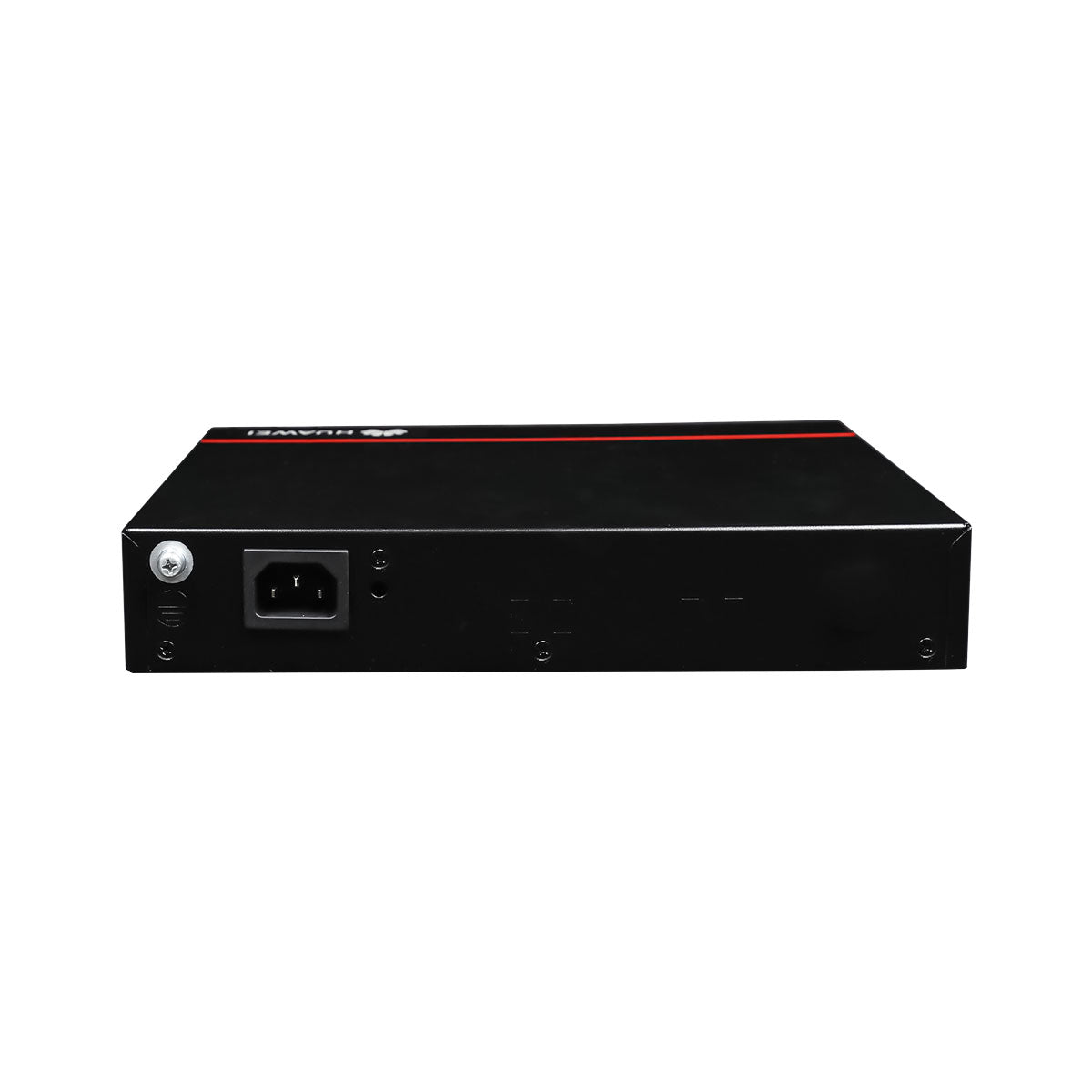

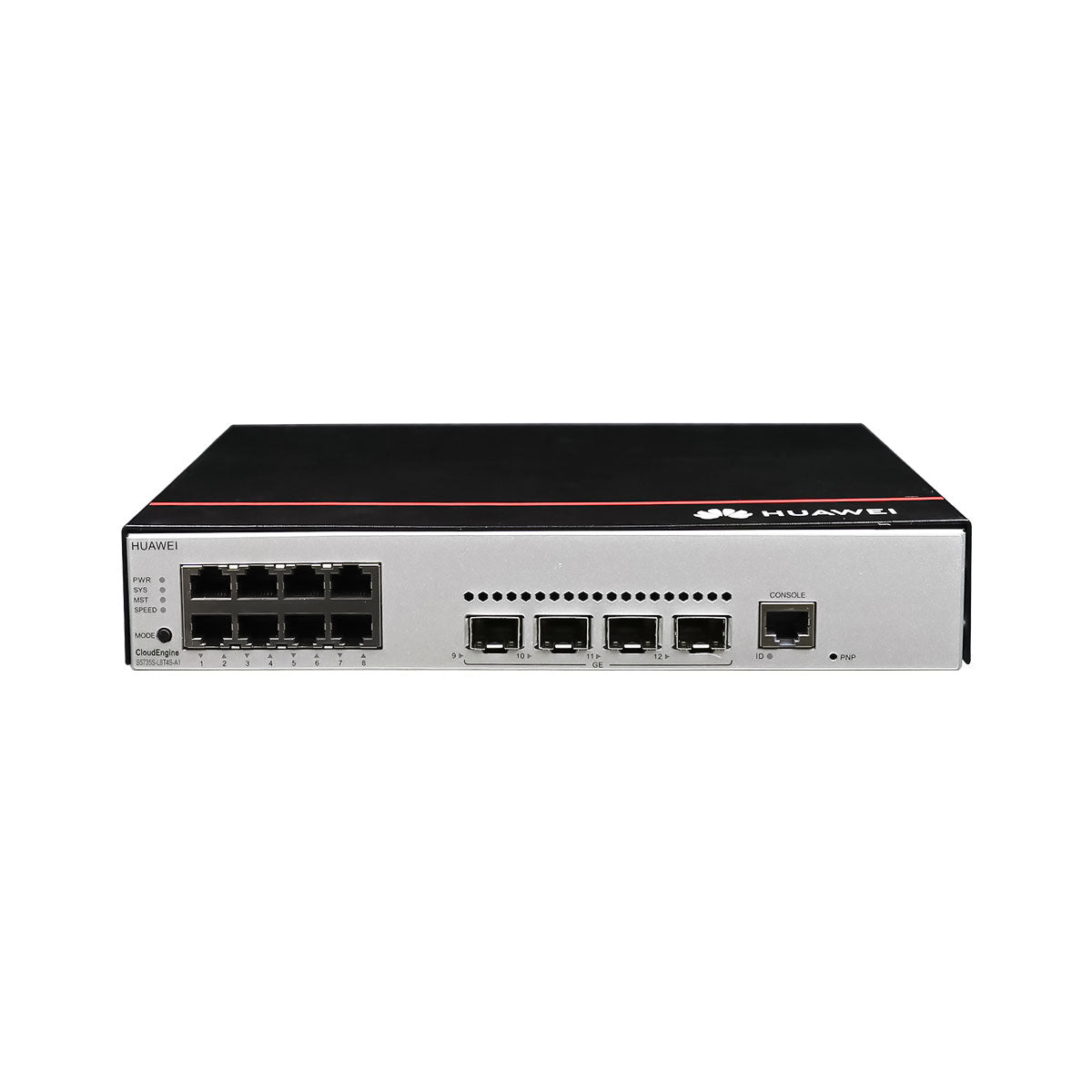

Huawei S5735S-L8T4S-A1 Switch
Review: 5 - "A masterpiece of literature" by , written on May 4, 2006
I really enjoyed this book. It captures the essential challenge people face as they try make sense of their lives and grow to adulthood.

Huawei S5735S-L8T4S-A1 Switch

  • Brand New Condition
  • Original Box Packed
  • Latest Firmware Version
Available:In Stock
$0.00

Huawei CloudEngine S5735S-L8T4S-A1 switch with 8-port 10/100/1000BASE-T, 4-port GE SFP, 1 AC power PN#98011285

PoE Not Supported

Memory: 512 MB

Flash memory: 512 MB

Huawei CloudEngine S5735S-L is a series of simplified gigabit access switches that provide 12–48 flexible all-GE downlink ports and four fixed GE or 10 GE uplink ports. They are designed for enterprise campus network access and gigabit to the desktop.



Item Specification
Dimensions without packaging (H x W x D) [mm(in.)] Basic dimensions 43.6 mm x 250.0 mm x 180.0 mm
Maximum dimensions 43.6 mm x 250.0 mm x 187.0 mm
Dimensions with packaging (H x W x D) [mm(in.)] 90.0 mm x 370.0 mm x 380.0 mm
Chassis height [U] 1 U
Weight without packaging [kg(lb)] 1.38 kg (3.04 lb)
Weight with packaging [kg(lb)] 2.02 kg (4.45 lb)
Typical power consumption [W] 21.2 W
Typical heat dissipation [BTU/hour] 72.34 BTU/hour
Maximum power consumption [W] 26.3 W
Maximum heat dissipation [BTU/hour] 89.74 BTU/hour
Static power consumption [W] 14.8 W
MTBF [year] 71.82 year
MTTR [hour] 2 hour
Availability >0.99999
Noise at normal temperature (acoustic power) [dB(A)] 43 dB(A)
Noise at normal temperature (acoustic pressure) [dB(A)] 31.5 dB(A)
Number of card slots 0
Number of power slots 0
Number of fans modules 1
Redundant power supply Not supported
Storage temperature [°C(°F)] -40°C to +70°C (-40°F to +158°F)
Long-term operating relative humidity [RH] 5% to 95%, noncondensing
Long-term operating altitude [m(ft.)] 0-5000 m (0-16404 ft.)
Storage altitude [m(ft.)] 0-5000 m (0-16404 ft.)
Power supply mode AC built-in
Rated input voltage [V] AC input: 100 V AC to 240 V AC, 50/60 Hz
Input voltage range [V] AC input: 90 V AC to 290 V AC, 45 Hz to 65 Hz
Maximum input current [A] 0.8 A
Memory 512 MB
Flash memory 512 MB
Console port RJ45
Eth Management port Not supported
USB Not supported
RTC Not supported
RPS input Not supported
Service port surge protection [kV] Common mode: ±7 kV
Power supply surge protection [kV] ±6 kV in differential mode, ±6 kV in common mode
Types of fans Built-in
Heat dissipation mode Heat dissipation with fan, intelligent fan speed adjustment
Airflow direction Air intake from left and front, air exhaustion from right
PoE Not supported
Certification EMC certification
Safety certification
Manufacturing certification

Huawei CloudEngine S5735S-L8T4S-A1 switch with 8-port 10/100/1000BASE-T, 4-port GE SFP, 1 AC power PN#98011285

PoE Not Supported

Memory: 512 MB

Flash memory: 512 MB

Huawei CloudEngine S5735S-L is a series of simplified gigabit access switches that provide 12–48 flexible all-GE downlink ports and four fixed GE or 10 GE uplink ports. They are designed for enterprise campus network access and gigabit to the desktop.



Item Specification
Dimensions without packaging (H x W x D) [mm(in.)] Basic dimensions 43.6 mm x 250.0 mm x 180.0 mm
Maximum dimensions 43.6 mm x 250.0 mm x 187.0 mm
Dimensions with packaging (H x W x D) [mm(in.)] 90.0 mm x 370.0 mm x 380.0 mm
Chassis height [U] 1 U
Weight without packaging [kg(lb)] 1.38 kg (3.04 lb)
Weight with packaging [kg(lb)] 2.02 kg (4.45 lb)
Typical power consumption [W] 21.2 W
Typical heat dissipation [BTU/hour] 72.34 BTU/hour
Maximum power consumption [W] 26.3 W
Maximum heat dissipation [BTU/hour] 89.74 BTU/hour
Static power consumption [W] 14.8 W
MTBF [year] 71.82 year
MTTR [hour] 2 hour
Availability >0.99999
Noise at normal temperature (acoustic power) [dB(A)] 43 dB(A)
Noise at normal temperature (acoustic pressure) [dB(A)] 31.5 dB(A)
Number of card slots 0
Number of power slots 0
Number of fans modules 1
Redundant power supply Not supported
Storage temperature [°C(°F)] -40°C to +70°C (-40°F to +158°F)
Long-term operating relative humidity [RH] 5% to 95%, noncondensing
Long-term operating altitude [m(ft.)] 0-5000 m (0-16404 ft.)
Storage altitude [m(ft.)] 0-5000 m (0-16404 ft.)
Power supply mode AC built-in
Rated input voltage [V] AC input: 100 V AC to 240 V AC, 50/60 Hz
Input voltage range [V] AC input: 90 V AC to 290 V AC, 45 Hz to 65 Hz
Maximum input current [A] 0.8 A
Memory 512 MB
Flash memory 512 MB
Console port RJ45
Eth Management port Not supported
USB Not supported
RTC Not supported
RPS input Not supported
Service port surge protection [kV] Common mode: ±7 kV
Power supply surge protection [kV] ±6 kV in differential mode, ±6 kV in common mode
Types of fans Built-in
Heat dissipation mode Heat dissipation with fan, intelligent fan speed adjustment
Airflow direction Air intake from left and front, air exhaustion from right
PoE Not supported
Certification EMC certification
Safety certification
Manufacturing certification
