Huawei S6750-H48Y8C Switch

  • Brand New Condition
  • Original Box Packed
  • Latest Firmware Version
Available:In Stock
$0.00

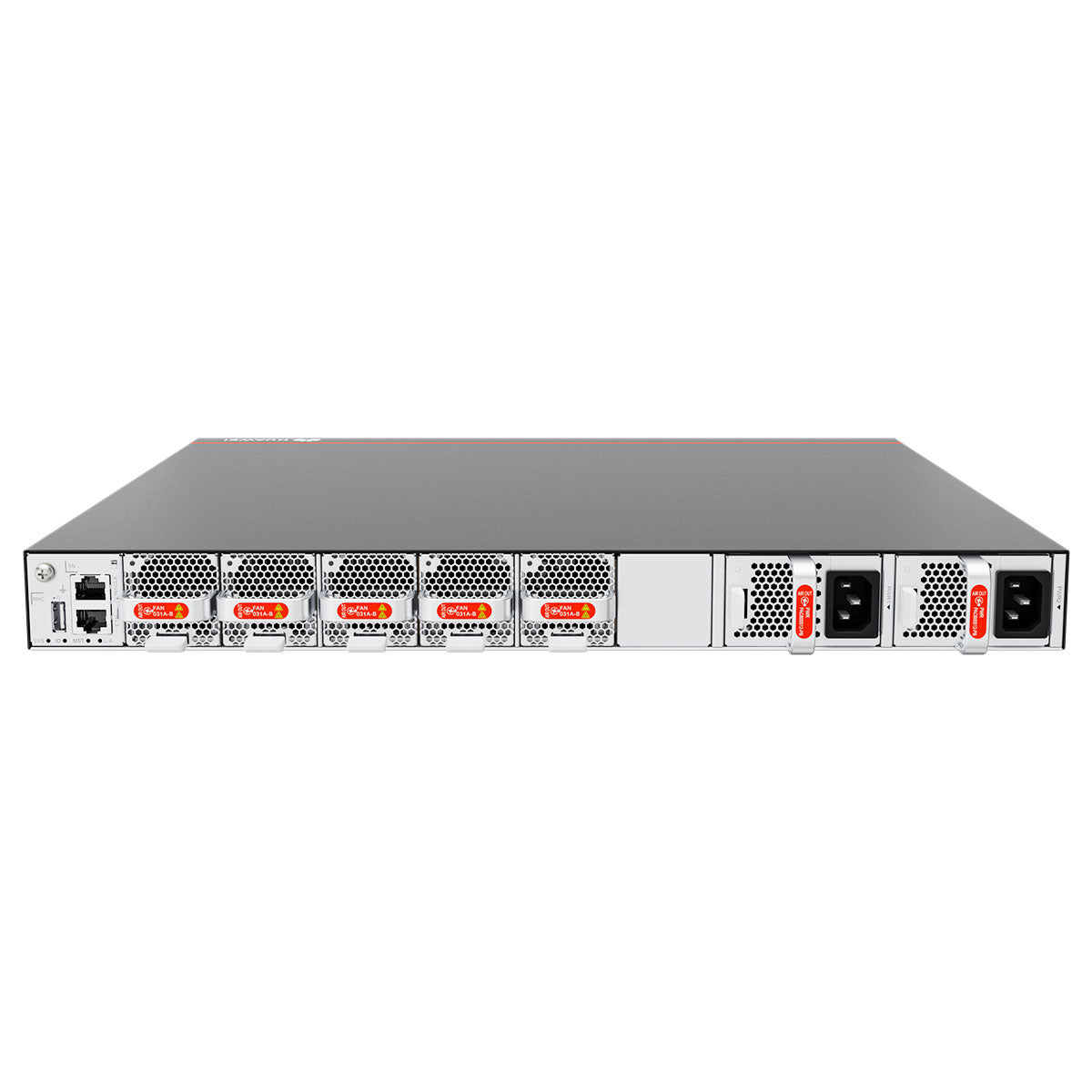

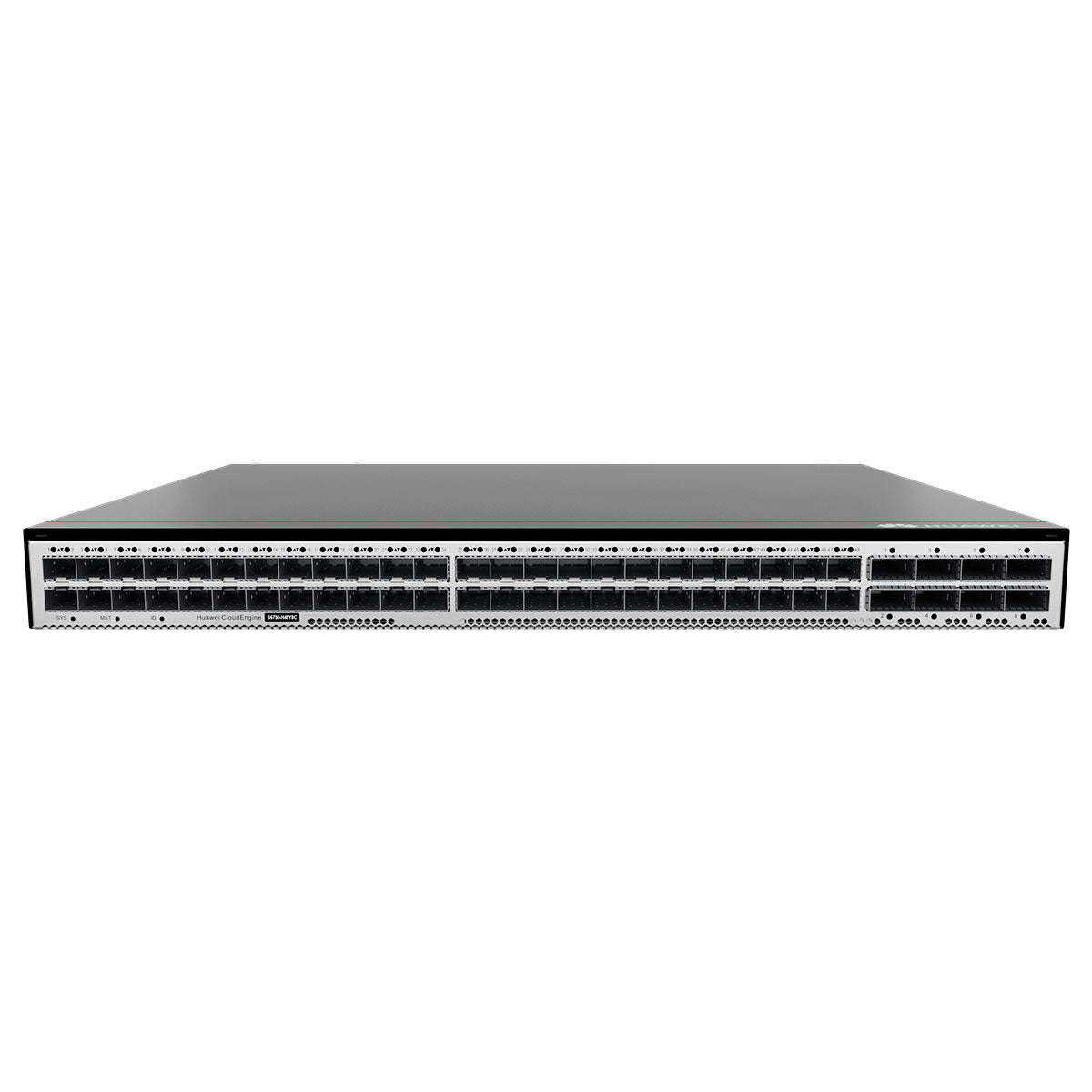

Huawei S6750-H48Y8C switch with 48-port 1/10/25GE SFP28, 8-port 40/100GE QSFP28, 2 power slots

*Note: 40/100GE uplink ports support be split to 4 x 10GE or 4 x 25GE, for
details, contact the XponShop sales team at sales@xponshop.com.

Switching capacity: 4Tbps/ 8Tbps

Applicable power module:
PAC1K2S12-PB (1200W AC Power Module)
PDC1K2S12-CE (1200W DC Power Module)

CloudEngine S6750-H series 25 GE switches are purpose-built with security, IoT, and cloud in mind.  With these traits, CloudEngine S6750-H can be widely used in enterprise campuses, colleges/universities, data centers, and other scenarios. They support free mobility, enable consistent user experience no matter the user location or IP address, fully meeting enterprises' demands for mobile offices.



Item Specification
Fixed port 48 x 1/10/25 GE SFP28, 8 x 40/100 GE QSFP28
Number of card slots 0
Number of power slots 2
Number of fans modules 5
Power supply mode

600 W AC (pluggable)

1200 W AC (pluggable)

1200 W DC (pluggable)
Rated voltage range AC input: 100 V AC to 240 V AC; 50/60 Hz
High-voltage DC input: 240 V DC
DC input: –48 V DC to –60 V DC
Maximum voltage range AC input: 90 V AC to 290 V AC; 45–65 Hz
High-voltage DC input: 190 V DC to 290 V DC
DC input: -38.4 V DC to -72 V DC
Power supply surge protection [kV] Using AC power modules: ±6 kV in differential mode, ±6 kV in common mode
Using DC power modules: ±2 kV in differential mode, ±4 kV in common mode
Heat dissipation mode Air cooling for heat dissipation, intelligent fan speed adjustment
Airflow direction Air intake from front, air exhaustion from rear (front-to-rear)
Memory 8 GB
Flash memory Physical space: 4 GB
Console port RJ45
Eth Management port RJ45
USB Supported
RTC Supported
RPS input Not supported
Service port surge protection [kV] -
Types of fans Pluggable
PoE Not supported
Chassis height [U] 1 U
Chassis weight (including packaging) 11.23 kg
Dimensions (H x W x D) 43.6 mm x 442.0 mm x 420.0 mm (1.72 in. x 17.4 in. x 16.54 in.)
Maximum power consumption (100% throughput, full speed of fans)

100% traffic under the ATIS standard and dual power modules: 244 W

High temperature 45°C (113°F), 100% traffic, and dual power modules: 342 W
Static power consumption [W] 172 W
Part Number 02355UEL

Huawei S6750-H48Y8C switch with 48-port 1/10/25GE SFP28, 8-port 40/100GE QSFP28, 2 power slots

*Note: 40/100GE uplink ports support be split to 4 x 10GE or 4 x 25GE, for
details, contact the XponShop sales team at sales@xponshop.com.

Switching capacity: 4Tbps/ 8Tbps

Applicable power module:
PAC1K2S12-PB (1200W AC Power Module)
PDC1K2S12-CE (1200W DC Power Module)

CloudEngine S6750-H series 25 GE switches are purpose-built with security, IoT, and cloud in mind.  With these traits, CloudEngine S6750-H can be widely used in enterprise campuses, colleges/universities, data centers, and other scenarios. They support free mobility, enable consistent user experience no matter the user location or IP address, fully meeting enterprises' demands for mobile offices.



Item Specification
Fixed port 48 x 1/10/25 GE SFP28, 8 x 40/100 GE QSFP28
Number of card slots 0
Number of power slots 2
Number of fans modules 5
Power supply mode

600 W AC (pluggable)

1200 W AC (pluggable)

1200 W DC (pluggable)
Rated voltage range AC input: 100 V AC to 240 V AC; 50/60 Hz
High-voltage DC input: 240 V DC
DC input: –48 V DC to –60 V DC
Maximum voltage range AC input: 90 V AC to 290 V AC; 45–65 Hz
High-voltage DC input: 190 V DC to 290 V DC
DC input: -38.4 V DC to -72 V DC
Power supply surge protection [kV] Using AC power modules: ±6 kV in differential mode, ±6 kV in common mode
Using DC power modules: ±2 kV in differential mode, ±4 kV in common mode
Heat dissipation mode Air cooling for heat dissipation, intelligent fan speed adjustment
Airflow direction Air intake from front, air exhaustion from rear (front-to-rear)
Memory 8 GB
Flash memory Physical space: 4 GB
Console port RJ45
Eth Management port RJ45
USB Supported
RTC Supported
RPS input Not supported
Service port surge protection [kV] -
Types of fans Pluggable
PoE Not supported
Chassis height [U] 1 U
Chassis weight (including packaging) 11.23 kg
Dimensions (H x W x D) 43.6 mm x 442.0 mm x 420.0 mm (1.72 in. x 17.4 in. x 16.54 in.)
Maximum power consumption (100% throughput, full speed of fans)

100% traffic under the ATIS standard and dual power modules: 244 W

High temperature 45°C (113°F), 100% traffic, and dual power modules: 342 W
Static power consumption [W] 172 W
Part Number 02355UEL
