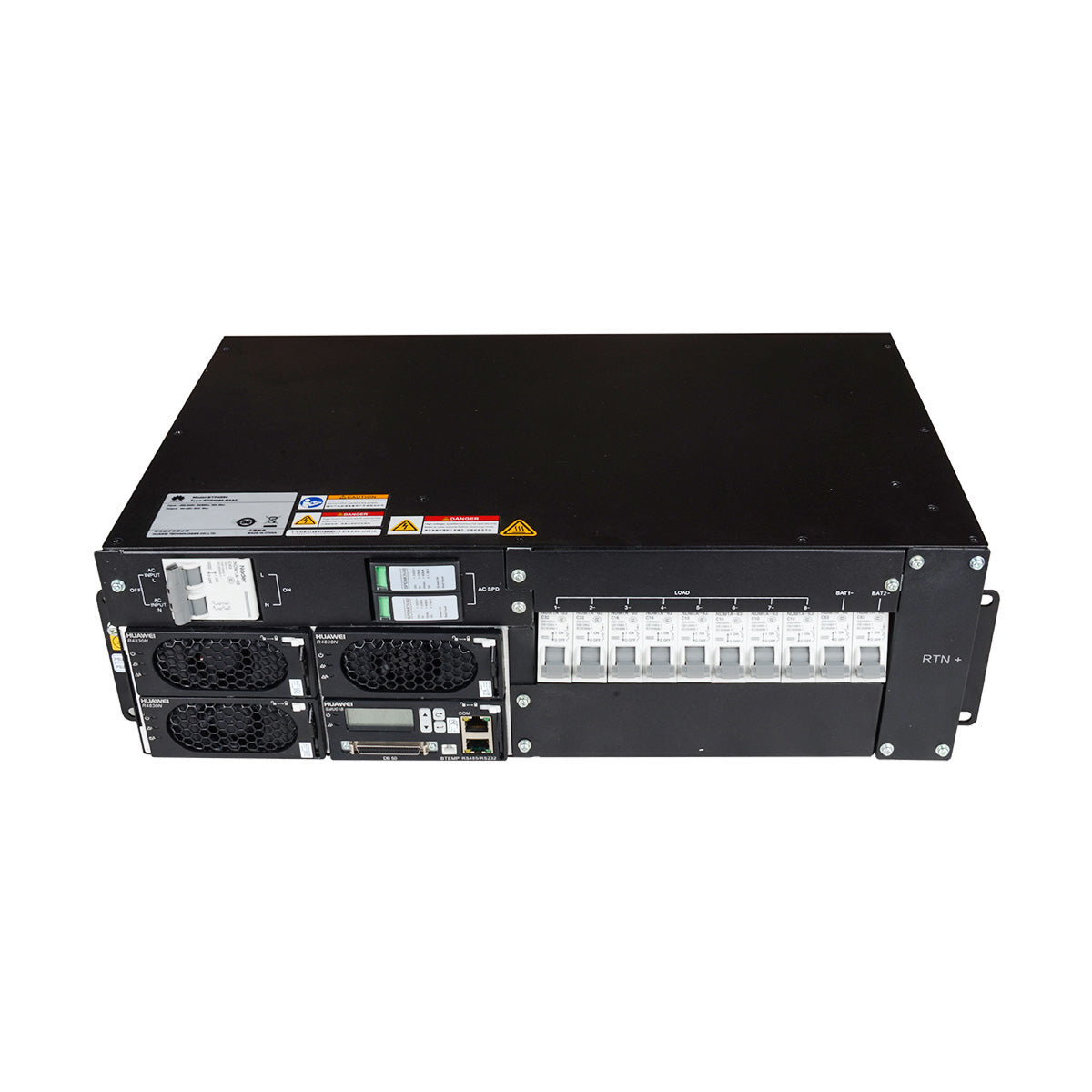

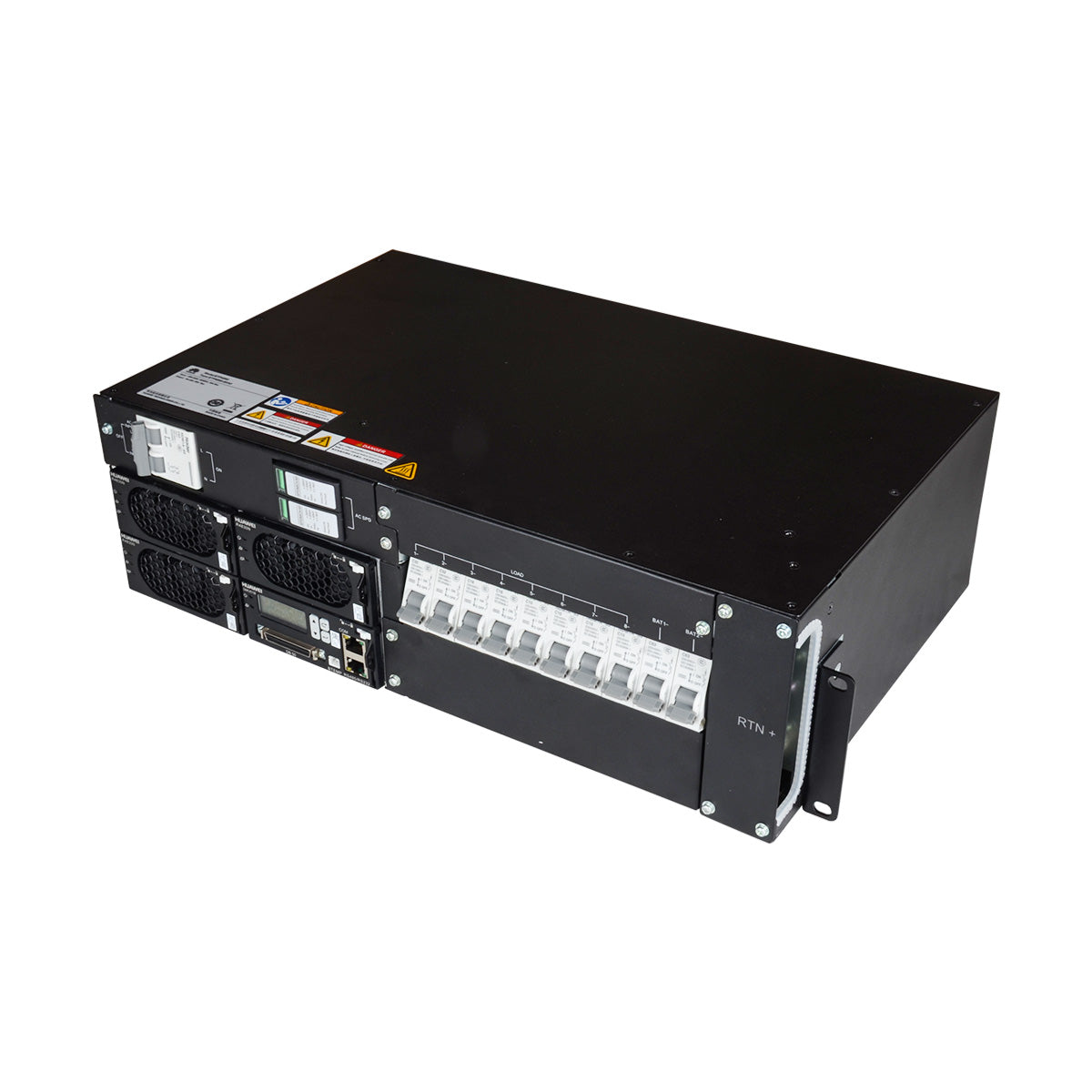

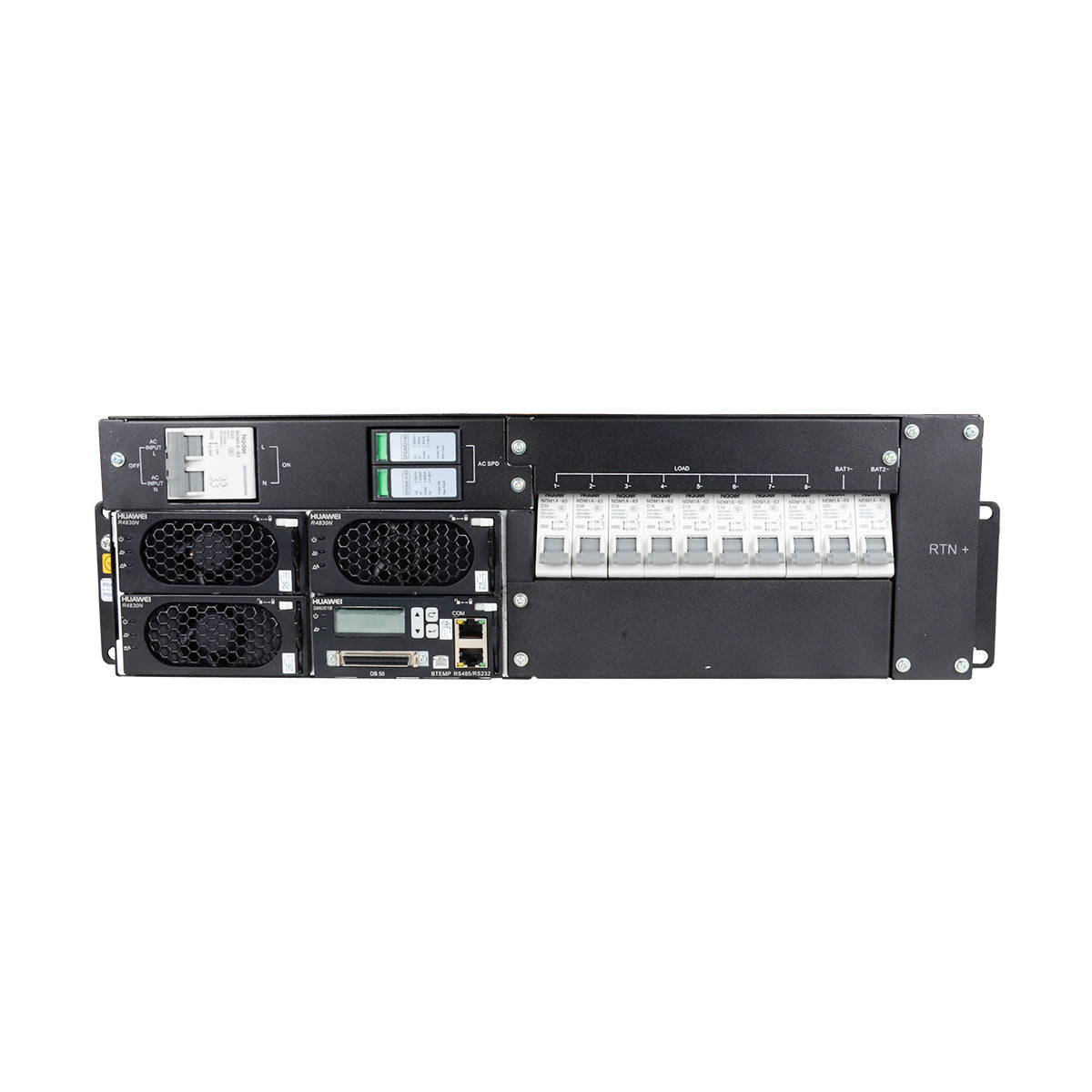

Huawei ETP4890-B3A2 AC/DC Power
- EU/US/UK Input AC Power Cable Included
- BATT Backup
- Installed in OLT 19 inch Rack
- Input/Output Air Breaker
Supports a wide voltage range of 85 V AC to 300 V AC.
Provides comprehensive battery management.
The SMU01A communicates with Huawei Network Ecosystem (NetEco) and third-party network management systems (NMSs) over various security protocols, such as the Simple Network Management Protocol (SNMP) and Hypertext Transfer Protocol Secure (HTTPS), featuring flexible networking. It provides WebUI and implements remote unattended management.
The SMU01B supports Huawei master/slave protocols and access network point-to-point protocols, which allows Huawei access network communications equipment to connect to the U2000.
Displays information on a liquid crystal display (LCD) and provides buttons for operations.
Supports electronic labels.
Rectifiers and the site monitoring unit (SMU) are hot-swappable.
Allows high-efficiency and standard-efficiency rectifiers with the same capacity to coexist.
The rectifier power factor is 0.99.
Specification | |
Input | ~200~240V, 50/60Hz, 30A Max |
Output | -48V, 90A Max |
Input voltage frequency | 50 Hz to 60 Hz |
Maximum output power (W) |
4815 |
Dimension (mm) | 500(W)×370(D)×215(3U,H) |
Weight (kg) | ≤15 (fully loaded) |
Supports a wide voltage range of 85 V AC to 300 V AC.
Provides comprehensive battery management.
The SMU01A communicates with Huawei Network Ecosystem (NetEco) and third-party network management systems (NMSs) over various security protocols, such as the Simple Network Management Protocol (SNMP) and Hypertext Transfer Protocol Secure (HTTPS), featuring flexible networking. It provides WebUI and implements remote unattended management.
The SMU01B supports Huawei master/slave protocols and access network point-to-point protocols, which allows Huawei access network communications equipment to connect to the U2000.
Displays information on a liquid crystal display (LCD) and provides buttons for operations.
Supports electronic labels.
Rectifiers and the site monitoring unit (SMU) are hot-swappable.
Allows high-efficiency and standard-efficiency rectifiers with the same capacity to coexist.
The rectifier power factor is 0.99.
Specification | |
Input | ~200~240V, 50/60Hz, 30A Max |
Output | -48V, 90A Max |
Input voltage frequency | 50 Hz to 60 Hz |
Maximum output power (W) |
4815 |
Dimension (mm) | 500(W)×370(D)×215(3U,H) |
Weight (kg) | ≤15 (fully loaded) |
